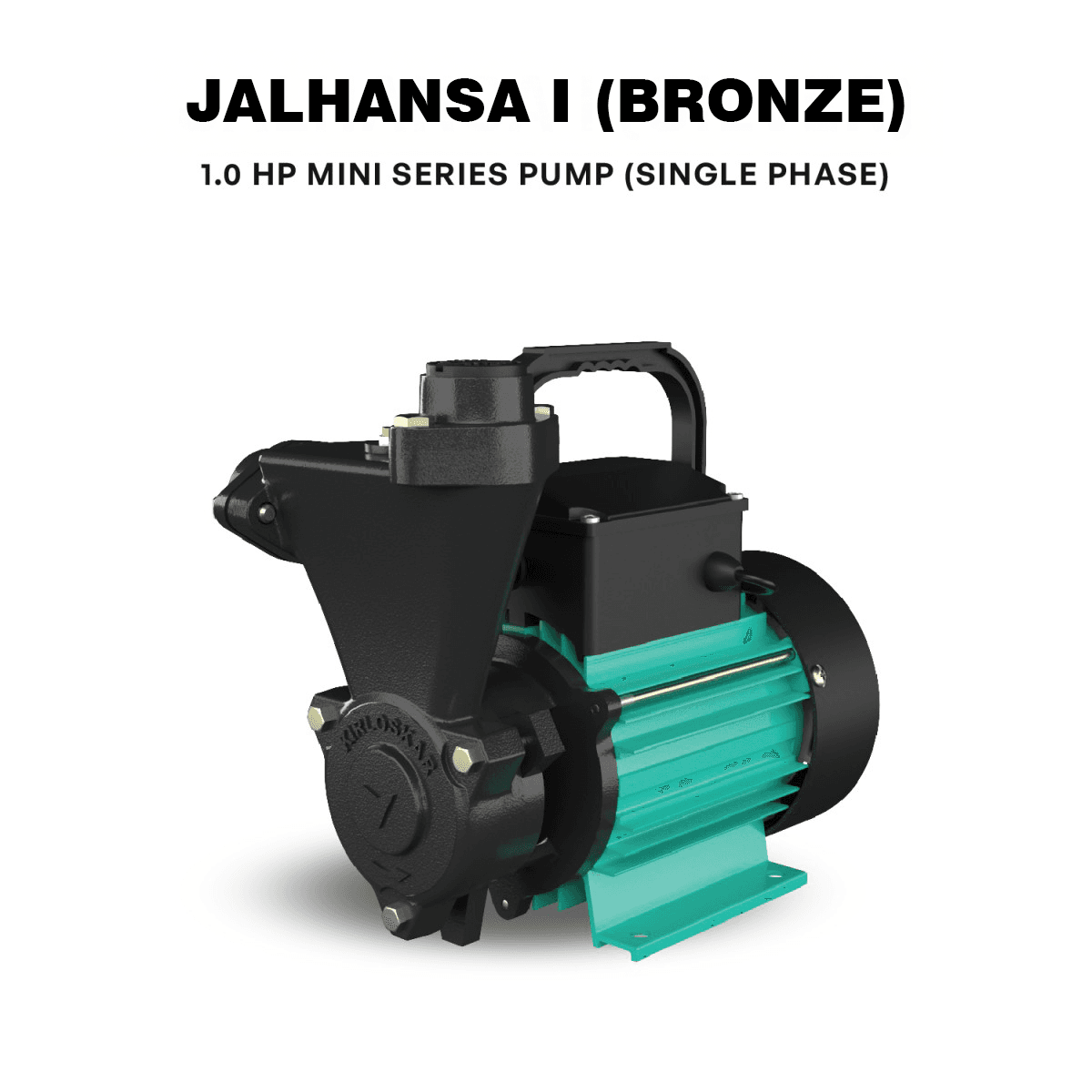

Self-priming Pump, MINI JALHANSA-I (Bronze), 1 HP, Single Phase, 220 Volts, Size 25mm X 25mm

Kirloskar Brothers

Self-priming Pump, MINI JALHANSA-I (Bronze), 1 HP, Single Phase, 220 Volts, Size 25mm X 25mm

رقم القطعة: kirloskar-brothers-d11xa01100401033

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Overview Kirloskar Self Priming pump comprises a thermal overload protector for protection of the motor from overloading. Suitable for the voltage range 180 to 260 Volts (Single Phase Pump) and are thus perfectly suited for water supply to overhead tanks in bungalows, gardens/ fountains, small farm irrigation, Sumps & water tanks. Key Features • High efficiency and energy-saving design - Delivers optimum efficiency at lower energy consumption resulting in significant cost saving • TOP - Thermal Overload Protector - The pump set features a Thermal Overload Protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault currents • Wide voltage design - The motor is designed to withstand wide voltage fluctuation from 180 to 260 Volts Single phase • Shielded Ball Bearings - No external lubrication is required through the life cycle

المواصفات

Product SeriesJalhansa
Pump ModelMINI JALHANSA-I(BRONZE)
Pump Type (Installation)Surface
Pump Type (Application)Self Priming
Power (In HP)01.00
Phase1
Rated Voltage (Volts)220
Frequency (in Hz)50
Speed (rpm)2740
Head Minimum (in m)6
Head Maximum (in m)40
Discharge Minimum750
Discharge Maximum3000
Discharge unitLPH
Suction Size (in mm)25
Delivery Size (in mm)25
ImpellerBRASS
Delivery CasingCAST IRON
Motor BodyALUMINUM
Pump ShaftCARBON STEEL
SealingMECH. SEAL
Warranty18 Months
Gross Weight (kg)9.7
Net Contents1 Pumpset, 1 Strainer
Item CodeD11XA01100401033
No. of Stages1
