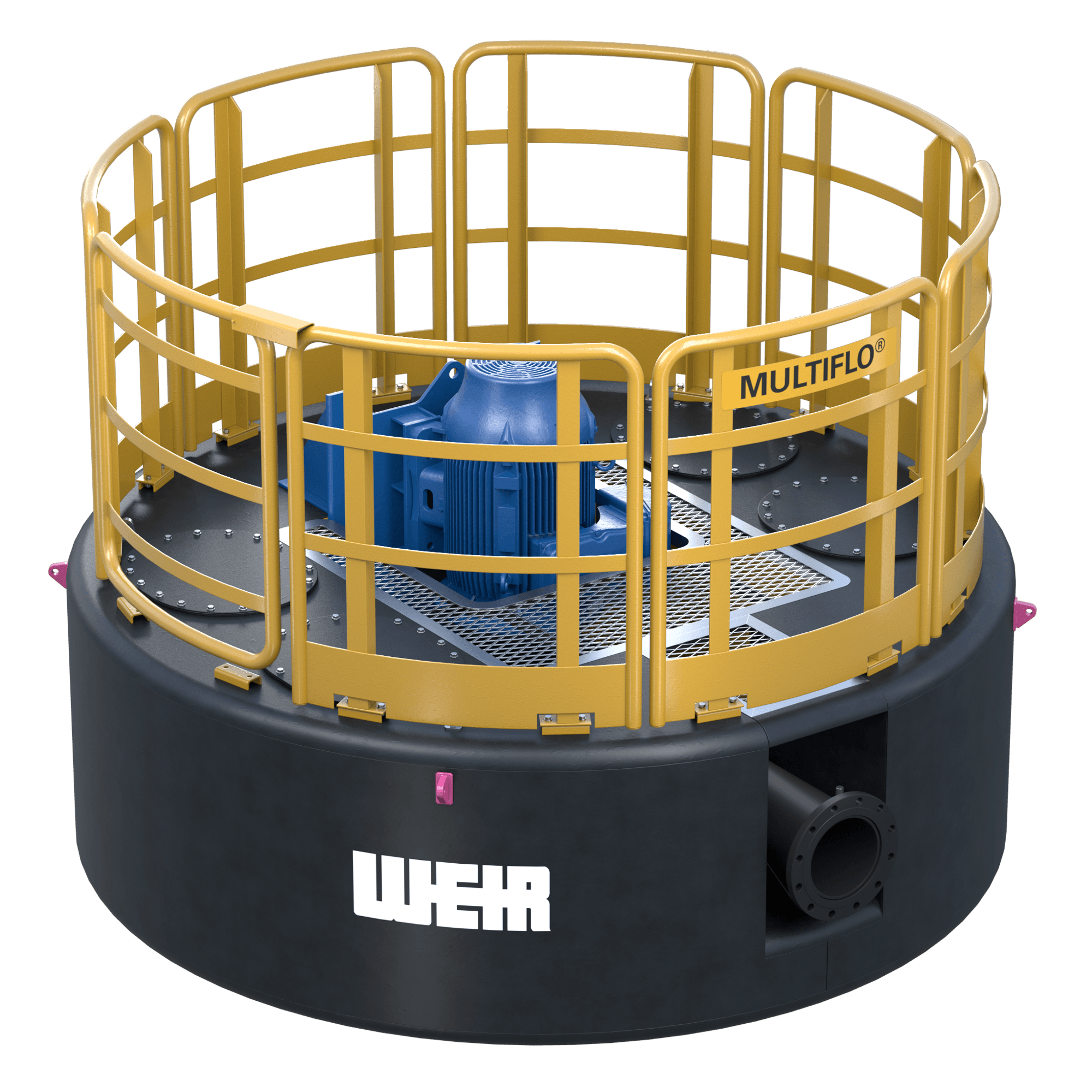

Multiflo® BR Modular Donut Pontoon Barge System

Name: Multiflo® BR Modular Donut Pontoon Barge System
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Multiflo® BR donut pontoon barges provide a floating pontoon solution for direct-coupled pumps with non-submerged motors. They are available in three sizes and have a buoyant capacity designed to accommodate a range of high efficiency pump ends. When combined with our range of Multiflo® dewatering pumps , these modular barges provide an efficient and reliable dewatering solution across a number of different industries. Particularly within open pit mining, surface extraction and tailings water reclaim applications. Compared to other types of floating pontoons, Multiflo® BR donut pontoon barges offer the following benefits: The modular barge design allows each pontoon to be independently ballasted before delivery, based on equipment loading The steel based frame is designed to support various direct coupled vertically mounted pump types with a wet-well included for vertical style pumps. Three pontoon variants are available It comes with integrated pump mounting and safety lifting equipment Contains internal ballasting compartments, an adjustable pump level mounting system and a recessed discharge piping system Close-coupled pump options Provides options to utilise submersible or vertical pumps according to local engineering recommendations For more information about our range of Multiflo® donut pontoons, please get in touch with our team.

المواصفات

Brand line	Multiflo®
Product type	Barges and Pontoons, Dewatering Pumps
DESIGN	Mono-hull donut-style pontoon
MAIN MATERIAL OF CONSTRUCTION	Steel
NUMBER OF PONTOONS	1 pontoon
OVERALL DIMENSIONS	From 2.2m to 3.5m
PONTOON WEIGHT WITHOUT PUMP AND EQUIPMENT	From 1215kg to 2258kg
MAXIMUM PUMP AND EQUIPMENT WEIGHT	From 660kg to 2372kg
MAXIMUM COMBINED PUMP AND PONTOON WEIGHT	From 1875kg to 4630kg
AMBIENT TEMPERATURE OPERATING RANGE	From -45°C to +40°C
SUBMERGANCE RANGE	60%
Catalogue category	Barges and Pontoons
