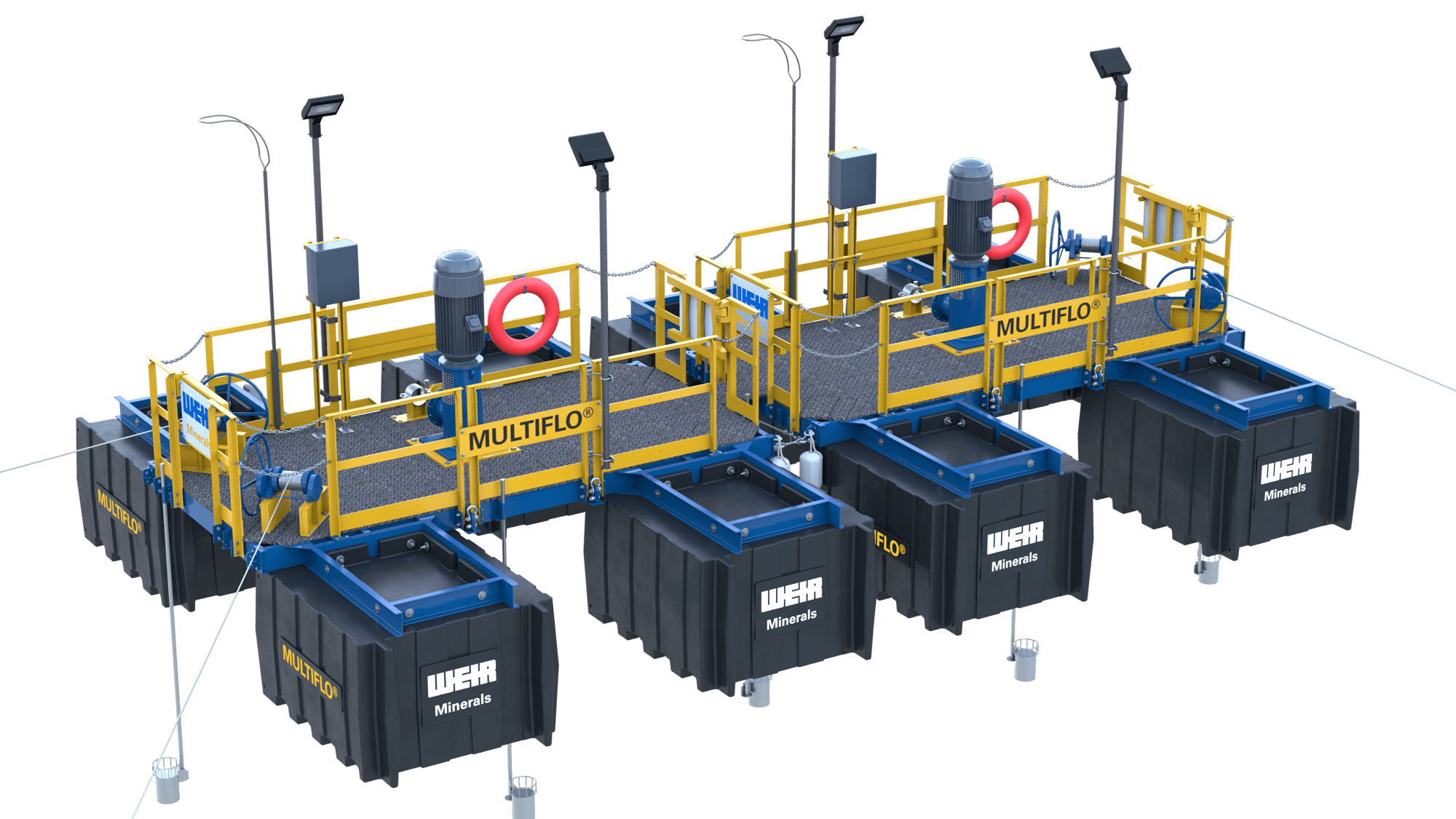

Multiflo® CC Polyethylene Modular Pontoon Barge System

Name: Multiflo® CC Polyethylene Modular Pontoon Barge System
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Multiflo® CC modular pontoon barges are fully scalable and designed with the capability to mount multiple floats depending on the required buoyant capacity. They also allow for expansion with the option to add more floats in the future. Each barge unit is designed to support one pump assembly, but can be tethered together in a multi-unit pontoon barge system to provide various pumping capacities and/or redundancies. The custom pontoon barge design allows each float to be independently ballasted before delivery, based on equipment loading. Each float is made from UV-resistant, corrosion-free, low-density polyethylene (PE) and is roto-moulded for seamless construction. When combined with our range of Multiflo® dewatering pumps , these modular barges provide an efficient and reliable dewatering solution across a number of different industries. Particularly within open pit mining, surface extraction and tailings water reclaim applications. Compared to other barge systems, Multiflo® CC pontoon barges offer the following benefits: Superior durability and strength Fully scalable design allowing the option to add more pontoons in the future Supports various pump types with a wet well included for vertical style pumps Available with four, six, and eight float mounting options Contains an interlocking system to reduce stress on the top deck frame Contains an integrated ballast chamber in each float Comes standard with a painted carbon steel platform, grating and handrails, and four, two ton, manual spur gear winches on the corners of the pontoon barge deck Enhanced safety features including a safety flotation life ring Marine naval engineering analysis to ensure great stability and buoyancy For more information about our range of Multiflo® modular pontoons and barges, please get in touch with our team.

المواصفات

Brand line	Multiflo®
Product type	Barges and Pontoons, Dewatering Pumps
DESIGN	Modular pontoon - comprising multiple independent flotation pontoons instead of a single hull.
MAIN MATERIAL OF CONSTRUCTION	Polyethylene (PE)
NUMBER OF PONTOONS	From 4 to 18 pontoons
OVERALL DIMENSIONS	From 6.3m x 5.1m x 1.7m to 8.3m x 5.1m x 2.7m
DECK DIMENSIONS	From 5.1m x 2.4m x 0.3m to 5.1m x 2.4m x 0.3m
PONTOON WEIGHT WITHOUT PUMP AND EQUIPMENT	From 2600kg to 3500kg
MAXIMUM PUMP AND EQUIPMENT WEIGHT	From 2200kg to 4100kg
MAXIMUM COMBINED PUMP AND PONTOON WEIGHT	From 4800kg to 7600kg
AMBIENT TEMPERATURE OPERATING RANGE	From -45°C to +40°C
SUBMERGANCE RANGE	From 65% to 70%
Catalogue category	Barges and Pontoons
