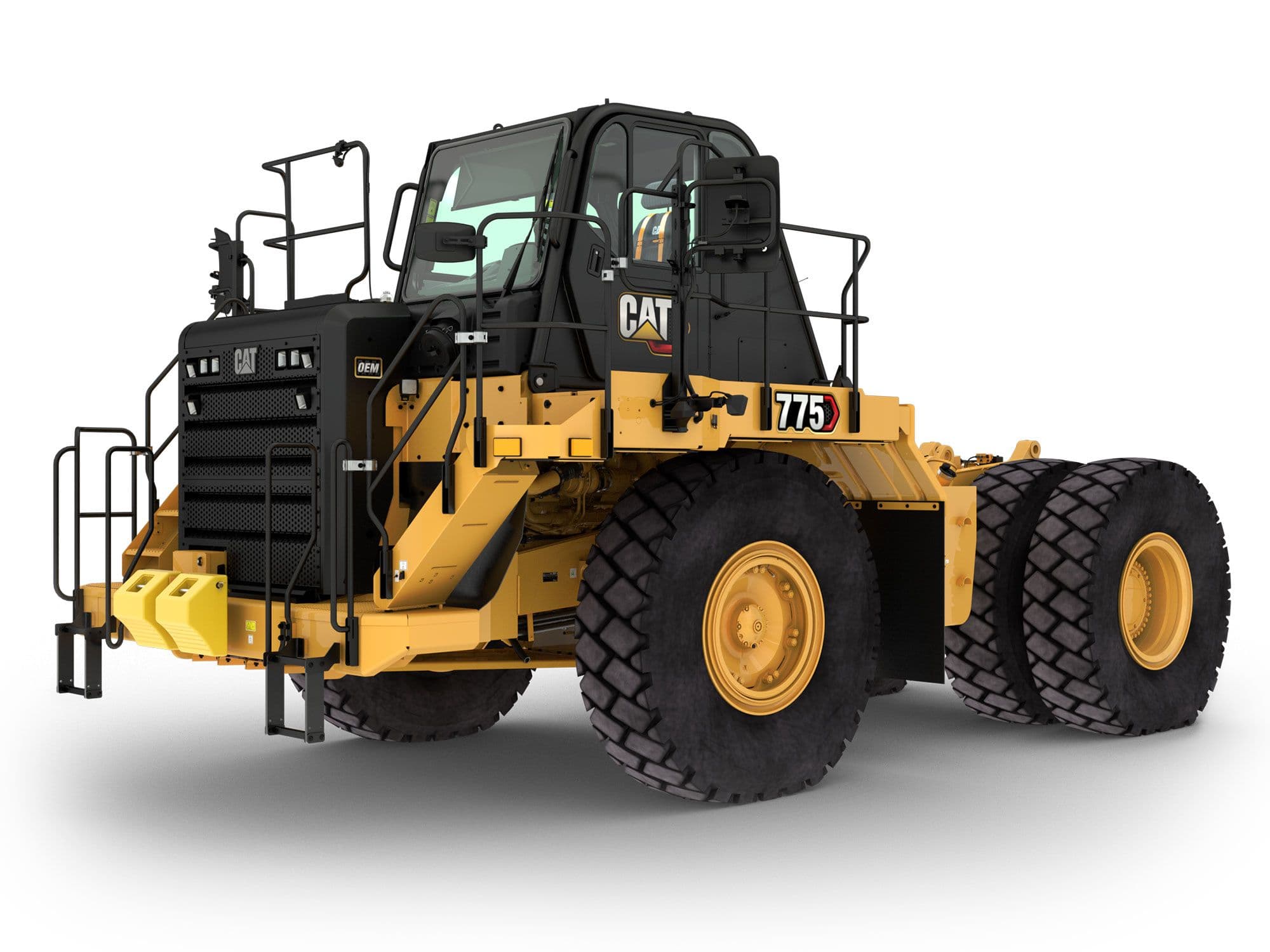

775 Off-Highway Truck Bare Chassis

Caterpillar

775 Off-Highway Truck Bare Chassis

رقم القطعة: CAT-1000005262

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

775 Off-Highway Truck Bare Chassis

المواصفات

Engine ModelCat® C27
Bore137 mm
Stroke152 mm
Displacement27 l
Forward - 110.6 km/h
Forward - 215 km/h
Forward - 320.3 km/h
Forward - 427 km/h
Forward - 536.7 km/h
Forward - 649.4 km/h
NoteLRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
Forward - 766.9 km/h
Cooling System171 l
Model775 Bare Chassis
Product Pagehttps://www.cat.com/en_US/products/new/equipment/off-highway-trucks/off-highway-trucks-bare-chassis/1000005262.html
Caterpillar CategoryOff-Highway Trucks Bare Chassis
Caterpillar Category PathProducts > Equipment > Off-Highway Trucks > Off-Highway Trucks Bare Chassis > 775 Bare Chassis
Caterpillar Product Familyequipment
Caterpillar Product Page ID1000005262
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20220831-77609-13917
Fuel Tank Capacity795 l
Transmission — NoteMaximum travel speeds with standard 24.00R35 (E4) tires
Engine — NoteNet Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. Specifications shown are for LRC model.
Gross Power - SAE J1995615 kW
Brake Surface - Front655 cm²
Brake Surface - Rear61269 cm²
Crankcase90 l
Steer Angle31 °
Steering StandardsISO 5010:2007
Steering System - Including Tank54 l
Differential - Final Drives145 l
Turning Circle - Clearance Diameter26.1 m
Brake Hoist System322 l
Reverse14 km/h
LRC Bare Chassis Weight without Hoist34073 kg
LRC Bare Chassis Weight with Hoist34621 kg
LRC Gross Vehicle Weight (Target) without Hoist111812 kg
LRC Gross Vehicle Weight (Target) with Hoist111812 kg
HRC Bare Chassis Weight without Hoist34733 kg
Brake/Hoist Hydraulic Tank176 l
HRC Bare Chassis Weight with Hoist35281 kg
HRC Gross Vehicle Weight (Target) with Hoist111812 kg
HRC Gross Vehicle Weight (Target) without Hoist111812 kg
Tractor ROPS38686 kg
Nominal Water Tank Capacity56775 l
Rated Net Power - SAE J1349584 kW
Turning Diameter23.5 m
