Caterpillar

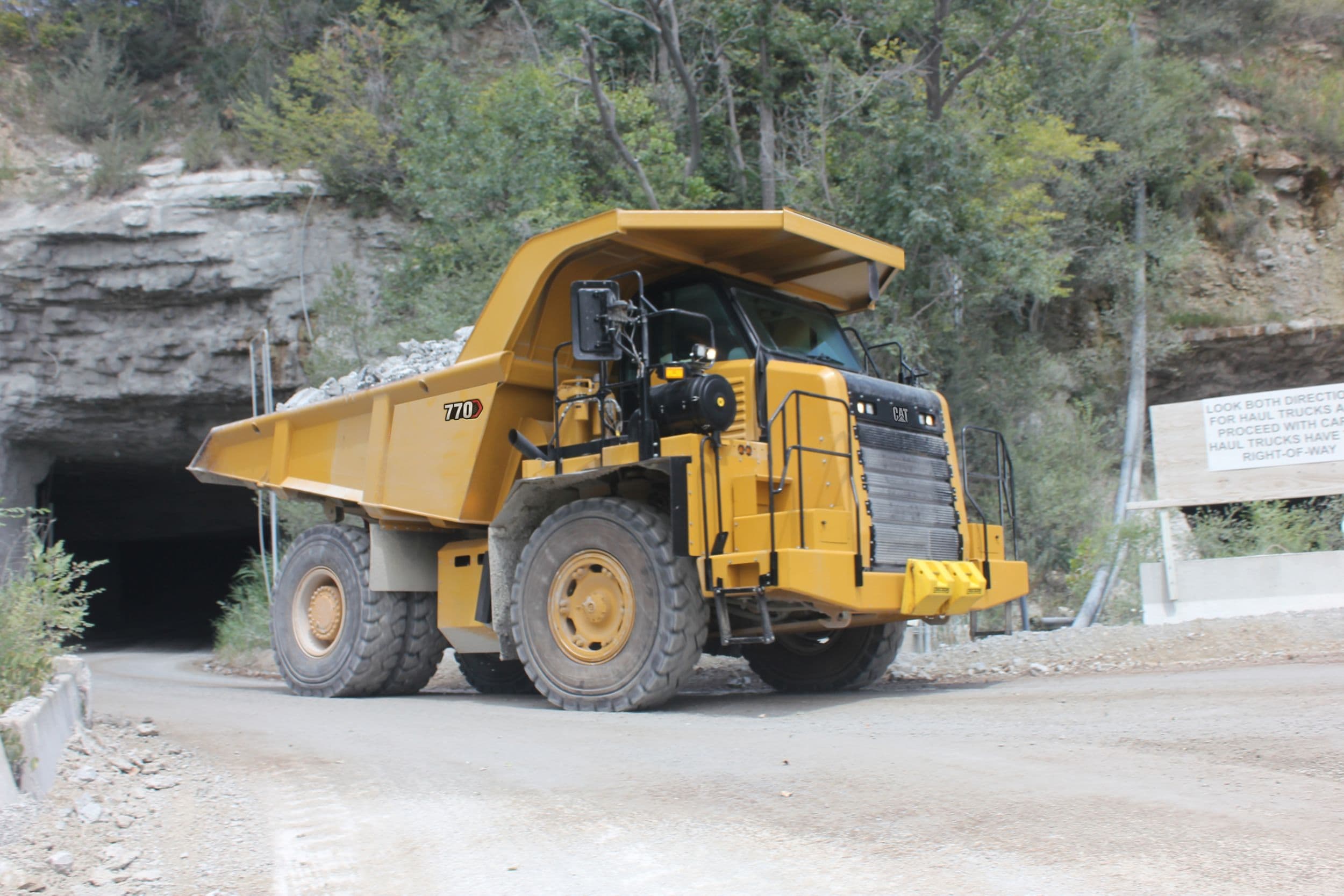

770 Off-Highway Truck

Name: 770 Off-Highway Truck
Brand: Caterpillar
SKU: CAT-122080

رقم القطعة: CAT-122080

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

770 Off-Highway Truck

المواصفات

Engine Model	Cat® C15
Gross Power - SAE J1995:2014	384 kW
Net Power - SAE J1349:2011	356 kW
Bore	137 mm
Stroke	171 mm
Displacement	15.2 l
Note (1)	*Refer to Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations.
Note (2)	Target payload and capacity based on Dual Slope body with no liner. Attachment selection will affect payload and maximum gross machine operating weight.
Note (3)	No engine derating required up to 3000 m (9,843 ft) altitude.
Forward - 1	11.9 km/h
Note (4)	Meets Japan Small Volume Exemption.
Forward - 2	16.3 km/h
Forward - 3	22.2 km/h
Forward - 4	29.8 km/h
Heaped (SAE 2:1)	25.2 m³
Forward - 5	40.4 km/h
Struck	17.6 m³
Forward - 6	54.4 km/h
Note	Maximum travel speeds with standard 18.00R33 (E4) tires.
Forward - 7	73.7 km/h
Fuel Tank	530 l
Cooling System	125 l
Front Axle - Empty	49 %
DEF Tank	21 l
Rear Axle - Empty	51 %
Model	770 (07)
Front Axle - Loaded	34 %
Product Page	https://www.cat.com/en_US/products/new/equipment/off-highway-trucks/off-highway-trucks/122080.html
Caterpillar Category	Off-Highway Trucks
Rear Axle - Loaded	66 %
Caterpillar Category Path	Products > Equipment > Off-Highway Trucks > Off-Highway Trucks > 770 (07)
Caterpillar Product Family	equipment
Caterpillar Product Page ID	122080
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20231213-8ea83-3b56a
Operating Width	4780 mm
Emissions	Meets U.S. EPA Tier 4 and EU Stage V emission standards.
Net Torque - SAE J1349	2486 N·m
Steering — Note	Target gross machine operating weight is 71 214 kg (157,000 lb).
Ground Clearance	518 mm
Net Power - ISO 9249	356 kW
Engine — Note (1)	Power rating applies at 1,700 rpm when tested under the specified condition for the specified standard.
Engine — Note (2)	Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
Wheel Base	3960 mm
Number of Cylinders	6
Body Weight	7850 kg
Chassis Weight	25378 kg
Differential Ratio	1.92:1
Planetary Ratio	4.80:1
Top Speed - Loaded	73.7 km/h
Pump Flow - High Idle	448 L/min
Total Reduction Ratio	9.26:1
Relief Valve Setting - Raise	18950 kPa
Target Gross Machine Weight	71214 kg
Body Raise Time - High Idle	7.5 s
Brake Surface - Front	1395 cm²
Body Lower Time - Float	10 s
Brake Surface - Rear	40225 cm²
Tires — Note (1)	Productive capabilities of the 770G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Brake Standards	ISO 3450:2011
Tires — Note (2)	Caterpillar recommends the customer evaluates all job conditions and consults the tire manufacturer for proper tire selection.
Relief Valve Setting - Lower	3450 kPa
Crankcase	64 l
Empty Loaded Cylinder Stroke Front	234 mm
Rear axle - Oscillation	8.9 °
Empty Loaded Cylinder Stroke Rear	149 mm
Steer Angle	40.5 °
Steering Standards	ISO 5010:2007
Steering Tank	55 l
Turning Diameter - Front	17.6 m
Steering System - Including Tank	87 l
Differential - Final Drives	180 l
Turning Circle - Clearance Diameter	20.3 m
Standard Tire	18.00R33 (E4)
Brake Hoist System	227 l
Torque Converter - Transmission System	64 l
FOPS Standards	Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria.
Reverse	14.2 km/h
Height - Top of ROPS	3857 mm
Body Power Down - High Idle	10 s
Overall Body Length	8199 mm
Inside Body Length	5635 mm
Sound Standards (1)	Hearing protection may be needed when operating with open operator station & cab for extended periods or in noisy environment.
Overall Length	8796 mm
Rear Axle - Tail	2586 mm
Inside Body Depth - Maximum	1404 mm
Dump Clearance	506 mm
Overall Height - Body Raised	8255 mm
Loading Height - Empty	3147 mm
Centerline Front Tire Width	3110 mm
Engine Guard Clearance	335 mm
Target Payload (100%)	38.2 t
Outside Body Width	3931 mm
Maximum Working Payload (110%)	42 t
Inside Body Width	3627 mm
Maximum Allowable Payload (120%)*	45.8 t
Centerline of Rear Dual Tire Width	2536 mm
Front Canopy Height	4114 mm
Body Capacity - SAE 2:1	25.2 m³
Overall Tire Width	3693 mm
Rear Axle - Clearance	548 mm
Sound Standards (2)	Exterior sound pressure power level for standard machine measured according to tests specified in ISO 6395:2008 is 116 dB(A).
Nominal Payload Class (100%)	38.2 t
Rated Engine Speed	1700 r/min
Net Power - 80/1269/EEC	365 kW
Net Power - ISO 14396	379 kW
Capacity - Dual Slope - 100% Fill Factor — Note (1)	Contact your local Cat dealer for body recommendation.
Target Gross Machine Operating Weight	71214 kg
Weights - Approximate — Note (1)	Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires.
Capacity - Dual Slope - 100% Fill Factor — Note (2)	*ISO 6483:1980.
Brake/Hoist Hydraulic Tank	145 l
Weights - Approximate — Note (2)	Body weight is the standard Dual Slope body with no liner and will vary depending on configuration.
Sound Standards (3)	Operator Equivalent Sound Pressure Level is 79 dB(A) & 74 dB(A) with EU sound suppression applied when ISO 6396:2008 is used.
Brakes — Note	Target gross machine operating weight is 71 214 kg (157,000 lb).
Capacity - Flat Floor - 100% Fill Factor — Note (1)	Contact your local Cat dealer for body recommendation.
ROPS Standards	Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
Capacity - Flat Floor - 100% Fill Factor — Note (2)	*ISO 6483:1980.
