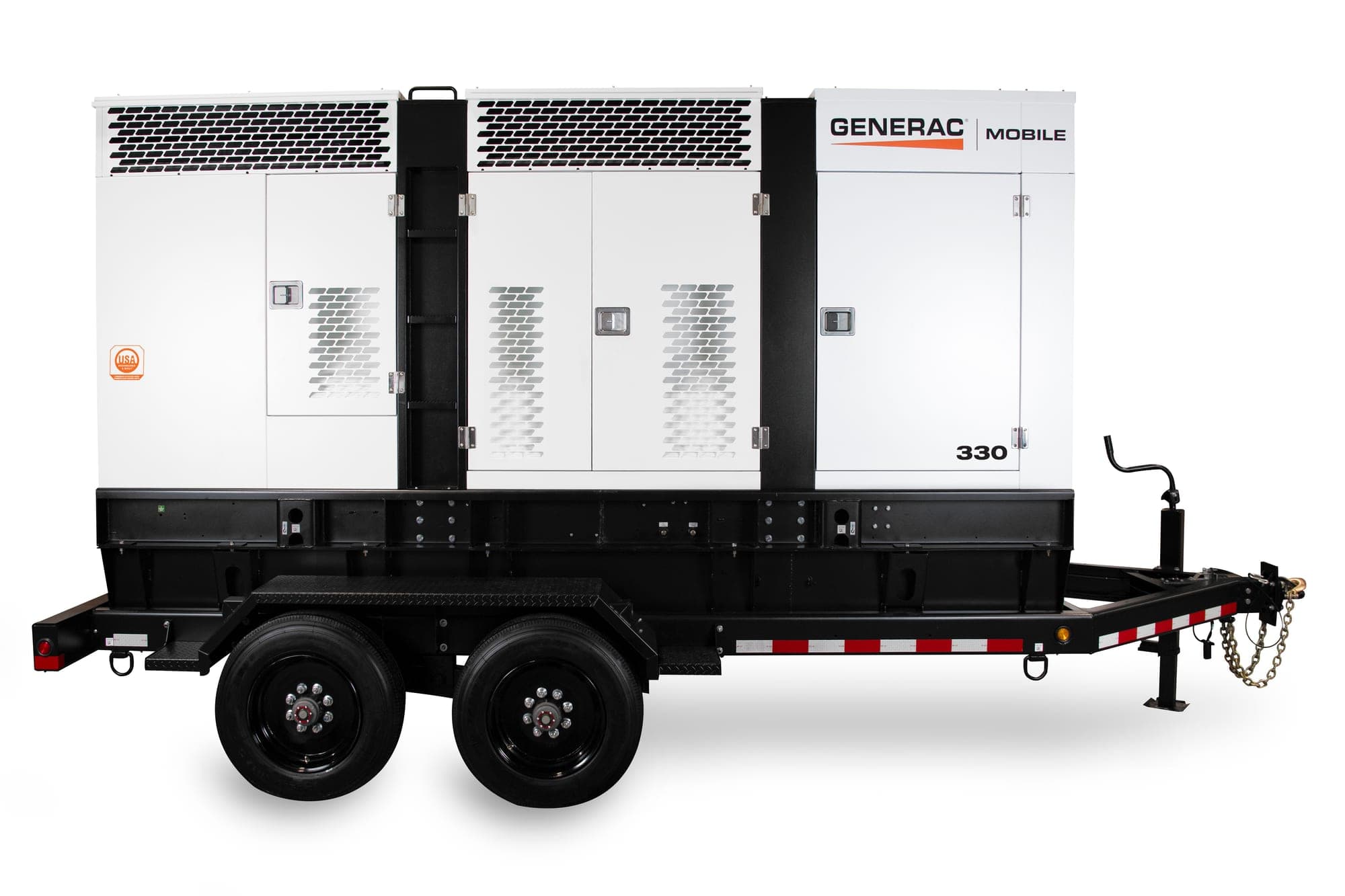

Mobile Generator | 330kVA / 264kW | Diesel | 9.3L

Generac

Mobile Generator | 330kVA / 264kW | Diesel | 9.3L

رقم القطعة: MDE330

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Mobile Generator | 330kVA / 264kW | Diesel | 9.3L

المواصفات

ModelMDE330
CategoryMobile Generators
kW/kVA Prime264/330
EnginePerkins (1706J-E93TAG2)
Spec Sheet / POWER RATING SUMMARY / Standby Power Rating290 kW, 363 kVA, 60 Hz
Spec Sheet / POWER RATING SUMMARY / Prime Power Rating264 kW, 330 kVA, 60 Hz
Spec Sheet / ENGINE / General / Make (Model)Perkins (1706J-E93TAG2)
Spec Sheet / ENGINE / Cooling System / Cooling System TypeWater Cooled
Spec Sheet / ENGINE / General / EPA Emissions ComplianceTier 4 Final
Spec Sheet / ENGINE / Cooling System / Water Pump TypeEngine Gear Driven
Spec Sheet / ENGINE / Cooling System / Fan TypePusher
Spec Sheet / ENGINE / Cooling System / Fan Speed: RPM1,800 RPM
Spec Sheet / ENGINE / General / TypeInline
Spec Sheet / ENGINE / Cooling System / Fan Diameter: in (mm)33 (838.2)
Spec Sheet / ENGINE / Cooling System / Cooling System Capacity - US gal10.0 (37.9)
Spec Sheet / ENGINE / General / Bore: in (mm)4.52 (115)
Spec Sheet / ENGINE / General / Stroke: in (mm)5.86 (149)
Spec Sheet / ENGINE / General / Compression Ratio17.0:1
Spec Sheet / ENGINE / General / Intake Air MethodTurbocharged & Aftercooled
Spec Sheet / ENGINE / Fuel System / Fuel TypeUltra Low Sulfur Diesel
Spec Sheet / ENGINE / Fuel System / FuelASTM D975 D2
Spec Sheet / ENGINE / Fuel System / Fuel FilteringPrimary: 10
Spec Sheet / ENGINE / Engine Governing / GovernorElectronic
Spec Sheet / ENGINE / Engine Governing / Frequency Regulation (Steady State)±1%
Spec Sheet / ENGINE / Fuel System / Fuel Pump TypeEngine Gear Driven Lift Pump
Spec Sheet / ENGINE / Fuel System / Injector TypeElectronic High Pressure Common Rail Fuel
Spec Sheet / ENGINE / Lubrication System / Oil PumpGear
Spec Sheet / ENGINE / Lubrication System / Oil Filter TypeSpin-On Cartridge
Spec Sheet / ENGINE / Lubrication System / Engine Oil Capacity: qt (L)31.7 (30)
Spec Sheet / ENGINE / Engine Electrical System / System Voltage: VDC24
Spec Sheet / ENGINE / Engine Electrical System / Battery - CCA950
Spec Sheet / ENGINE / Engine Electrical System / Battery - V (Qty)12 (2)
Spec Sheet / ENGINE / Engine Electrical System / Ground PolarityNegative (-)
Spec Sheet / STANDARD ALTERNATOR / Make (Model)Leroy Somer (LSA 46.3 L10)
Spec Sheet / STANDARD ALTERNATOR / Standard ExcitationPMG
Spec Sheet / STANDARD ALTERNATOR / Poles4
Spec Sheet / STANDARD ALTERNATOR / Bearings1
Spec Sheet / STANDARD ALTERNATOR / Field TypeRevolving
Spec Sheet / STANDARD ALTERNATOR / Coupling14
Spec Sheet / STANDARD ALTERNATOR / Insulation Class - RotorClass H
Spec Sheet / STANDARD ALTERNATOR / Prototype Short Circuit TestYes
Spec Sheet / STANDARD ALTERNATOR / Voltage Regulator TypeDigital
Spec Sheet / STANDARD ALTERNATOR / Total Harmonic Distortion (THD)<2.5%
Spec Sheet / STANDARD ALTERNATOR / Quantity of Sensed Phases1
Spec Sheet / STANDARD ALTERNATOR / Telephone Interference Factor (TIF)<50
Spec Sheet / STANDARD ALTERNATOR / Regulation Accuracy (Steady State)0.50%
Spec Sheet / SUPERSTART ALTERNATOR / Make (Model)Leroy Somer (LSA 46.3 L11)
Spec Sheet / SUPERSTART ALTERNATOR / Standard ExcitationPMG
Spec Sheet / SUPERSTART ALTERNATOR / Poles4
Spec Sheet / SUPERSTART ALTERNATOR / Bearings1
Spec Sheet / SUPERSTART ALTERNATOR / Field TypeRevolving
Spec Sheet / SUPERSTART ALTERNATOR / Coupling14
Spec Sheet / SUPERSTART ALTERNATOR / Insulation Class - RotorClass H
Spec Sheet / SUPERSTART ALTERNATOR / Prototype Short Circuit TestYes
Spec Sheet / SUPERSTART ALTERNATOR / Voltage Regulator TypeDigital
Spec Sheet / SUPERSTART ALTERNATOR / Total Harmonic Distortion (THD)<2.5%
Spec Sheet / SUPERSTART ALTERNATOR / Quantity of Sensed Phases1
Spec Sheet / SUPERSTART ALTERNATOR / Telephone Interference Factor (TIF)<50
Spec Sheet / SUPERSTART ALTERNATOR / Regulation Accuracy (Steady State)0.50%
Spec Sheet / VFLEX ALTERNATOR / Make (Model)Leroy Somer (LSA 46.3 L11)
Spec Sheet / VFLEX ALTERNATOR / Standard ExcitationPMG
Spec Sheet / VFLEX ALTERNATOR / Poles4
Spec Sheet / VFLEX ALTERNATOR / Bearings1
Spec Sheet / VFLEX ALTERNATOR / Field TypeRevolving
Spec Sheet / VFLEX ALTERNATOR / Coupling14
Spec Sheet / VFLEX ALTERNATOR / Insulation Class - RotorClass H
Spec Sheet / VFLEX ALTERNATOR / Prototype Short Circuit TestYes
Spec Sheet / VFLEX ALTERNATOR / Voltage Regulator TypeDigital
Spec Sheet / VFLEX ALTERNATOR / Total Harmonic Distortion (THD)<2%
Spec Sheet / VFLEX ALTERNATOR / Quantity of Sensed Phases1
Spec Sheet / VFLEX ALTERNATOR / Telephone Interference Factor (TIF)<50
Spec Sheet / VFLEX ALTERNATOR / Regulation Accuracy (Steady State)0.50%
Spec Sheet / DIMENSIONS AND WEIGHTS / Skid / Weight (Dry)12,132 (5,503)
Spec Sheet / DIMENSIONS AND WEIGHTS / Trailer / Weight (Dry)13,778 (6,249)
Spec Sheet / DIMENSIONS AND WEIGHTS / Skid / Dimensions - L×W×H168.0 (4.27) × 64.0 (1.6) × 101.0 (2.6)
Spec Sheet / DIMENSIONS AND WEIGHTS / Trailer / Dimensions - L×W×H232.0 (5.89) x 94.5 (2.4) x 115.0 (2.9)
Spec Sheet / DIMENSIONS AND WEIGHTS / Skid / Weight (Operating)15,324 (6,949)
Spec Sheet / DIMENSIONS AND WEIGHTS / Trailer / Weight (Operating)16,970 (7,697)
AlternatorLeroy Somer (LSA 46.3 L10)
Standby Power290 kW, 363 kVA, 60 Hz
Spec Sheet / ENGINE / General / Displacement: in³ (L)567.52 (9.3)
Spec Sheet / ENGINE / General / Cylinders - Qty6
Spec Sheet / ENGINE / General / After-Treatment SystemDOC, SCR, & DPF
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf / Standard Alternator Standby: kW/kVA (A)288/360 (1000)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf / Standard Alternator Prime: kW/kVA (A)264/330 (917)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf / SUPERSTART Alternator Standby: kW/kVA (288/360 (1000)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf / SUPERSTART Alternator Prime: kW/kVA (A)264/330 (917)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf / VFLEX Alternator Standby: kW/kVA (A)288/360 (1000)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf / VFLEX Alternator Prime: kW/kVA (A)264/330 (917)
Spec Sheet / POWER RATINGS / 3-phase, 240/139 VAC @ 0.8 pf / Standard Alternator Standby: kW/kVA (A)290/363 (873)
Spec Sheet / POWER RATINGS / 3-phase, 240/139 VAC @ 0.8 pf / Standard Alternator Prime: kW/kVA (A)264/330 (795)
Spec Sheet / POWER RATINGS / 3-phase, 240/139 VAC @ 0.8 pf / SUPERSTART Alternator Standby: kW/kVA (290/363 (873)
Spec Sheet / POWER RATINGS / 3-phase, 240/139 VAC @ 0.8 pf / SUPERSTART Alternator Prime: kW/kVA (A)264/330 (795)
Spec Sheet / POWER RATINGS / 3-phase, 240/139 VAC @ 0.8 pf / VFLEX Alternator Standby: kW/kVA (A)290/363 (873)
Spec Sheet / POWER RATINGS / 3-phase, 240/139 VAC @ 0.8 pf / VFLEX Alternator Prime: kW/kVA (A)264/330 (795)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf / Standard Alternator Standby: kW/kVA (A)290/363 (437)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf / Standard Alternator Prime: kW/kVA (A)264/330 (397)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf / SUPERSTART Alternator Standby: kW/kVA (290/363 (437)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf / SUPERSTART Alternator Prime: kW/kVA (A)264/330 (397)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf / VFLEX Alternator Standby: kW/kVA (A)290/363 (437)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf / VFLEX Alternator Prime: kW/kVA (A)264/330 (397)
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf / Standard Alternator Standby: kW/kVA (A)N/A
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf / Standard Alternator Prime: kW/kVA (A)N/A
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf / SUPERSTART Alternator Standby: kW/kVA (N/A
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf / SUPERSTART Alternator Prime: kW/kVA (A)N/A
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf / VFLEX Alternator Standby: kW/kVA (A)290/363 (349)
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf / VFLEX Alternator Prime: kW/kVA (A)264/330 (318)
