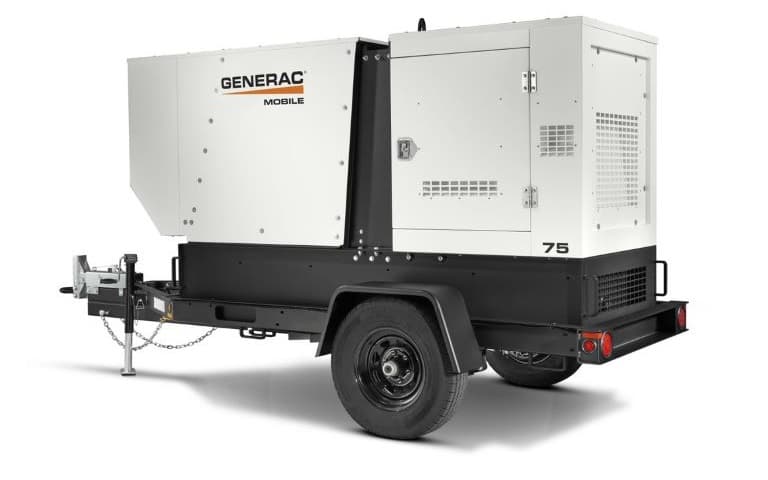

Mobile Generator | 75kVA / 60kW | Diesel | 4.5L

Generac

Mobile Generator | 75kVA / 60kW | Diesel | 4.5L

رقم القطعة: MDG75DF4

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Mobile Generator | 75kVA / 60kW | Diesel | 4.5L

المواصفات

ModelMDG75DF4
CategoryMobile Generators
kW/kVA Prime60
EngineJohn Deere® 4045HFG04
Spec Sheet / POWER RATING SUMMARY / Standby Power Rating68 kW, 85 kVA, 60 Hz
Spec Sheet / POWER RATING SUMMARY / Prime Power Rating60 kW, 75 kVA, 60 Hz
Spec Sheet / ENGINE / General / Make (Model)John Deere (4045HFG04)
Spec Sheet / ENGINE / Cooling System / Cooling System TypeRadiator and CAC
Spec Sheet / ENGINE / General / EPA Emissions ComplianceTier 4 Final
Spec Sheet / ENGINE / Cooling System / Water Pump TypeEngine Belt Driven
Spec Sheet / ENGINE / General / After Treatment SystemDOC and SCR
Spec Sheet / ENGINE / Cooling System / Fan TypePusher
Spec Sheet / ENGINE / General / Cylinder #4
Spec Sheet / ENGINE / Cooling System / Fan Speed: RPMVariable Speed Clutch
Spec Sheet / ENGINE / General / TypeIn-line
Spec Sheet / ENGINE / Cooling System / Fan Diameter: in (mm)23.2 (59.0)
Spec Sheet / ENGINE / General / Displacement: in 3 (L)275 (4.5)
Spec Sheet / ENGINE / General / Bore: in (mm)4.2 (10.6)
Spec Sheet / ENGINE / General / Stroke: in (mm)5.0 (12.7)
Spec Sheet / ENGINE / General / Compression Ratio17:1
Spec Sheet / ENGINE / General / Intake Air MethodTurbocharged & Aftercooled
Spec Sheet / ENGINE / Fuel System / Fuel TypeUltra Low Sulfur Diesel
Spec Sheet / ENGINE / Fuel System / FuelEN 590 / ASTM D975
Spec Sheet / ENGINE / Fuel System / Fuel FilteringPrimary: 10
Spec Sheet / ENGINE / Engine Governing / GovernorElectronic
Spec Sheet / ENGINE / Engine Governing / Frequency Regulation (Steady State)2%
Spec Sheet / ENGINE / Lubrication System / Oil PumpGear Driven
Spec Sheet / ENGINE / Lubrication System / Oil Filter TypeSpin-On Cartridge, Full Flow
Spec Sheet / ENGINE / Lubrication System / Engine Oil Capacity: qt (L)15.9 (15)
Spec Sheet / ENGINE / Engine Electrical System / System Voltage: VDC12
Spec Sheet / STANDARD ALTERNATOR / Make (Model)Marathon Electric (361PSL1647)
Spec Sheet / STANDARD ALTERNATOR / Standard ExcitationShunt
Spec Sheet / STANDARD ALTERNATOR / Poles4
Spec Sheet / STANDARD ALTERNATOR / BearingsSingle Bearing
Spec Sheet / STANDARD ALTERNATOR / Field TypeRotating
Spec Sheet / STANDARD ALTERNATOR / CouplingDirect Flexible Disc
Spec Sheet / STANDARD ALTERNATOR / Insulation Class - RotorClass H
Spec Sheet / STANDARD ALTERNATOR / Prototype Short Circuit TestYes
Spec Sheet / STANDARD ALTERNATOR / Voltage Regulator TypeAVR
Spec Sheet / STANDARD ALTERNATOR / Total Harmonic Distortion (THD)<3.5%
Spec Sheet / STANDARD ALTERNATOR / Quantity of Sensed Phases1
Spec Sheet / STANDARD ALTERNATOR / Telephone Interference Factor (TIF)<50
Spec Sheet / STANDARD ALTERNATOR / Regulation Accuracy (Steady State)±0.5%
Spec Sheet / SUPERSTART ALTERNATOR / Make (Model)Marathon Electric (362PSL1650)
Spec Sheet / SUPERSTART ALTERNATOR / Standard ExcitationShunt
Spec Sheet / SUPERSTART ALTERNATOR / Poles4
Spec Sheet / SUPERSTART ALTERNATOR / BearingsSingle Bearing
Spec Sheet / SUPERSTART ALTERNATOR / Field TypeRotating
Spec Sheet / SUPERSTART ALTERNATOR / CouplingDirect Flexible Disc
Spec Sheet / SUPERSTART ALTERNATOR / Insulation Class - RotorClass H
Spec Sheet / SUPERSTART ALTERNATOR / Prototype Short Circuit TestYes
Spec Sheet / SUPERSTART ALTERNATOR / Voltage Regulator TypeAVR
Spec Sheet / SUPERSTART ALTERNATOR / Total Harmonic Distortion (THD)<3.5%
Spec Sheet / SUPERSTART ALTERNATOR / Quantity of Sensed Phases1
Spec Sheet / SUPERSTART ALTERNATOR / Telephone Interference Factor (TIF)<50
Spec Sheet / SUPERSTART ALTERNATOR / Regulation Accuracy (Steady State)±0.5%
Spec Sheet / VFLEX ALTERNATOR / Make (Model)Marathon Electric (361PSL36113)
Spec Sheet / VFLEX ALTERNATOR / Standard ExcitationShunt
Spec Sheet / VFLEX ALTERNATOR / Poles4
Spec Sheet / VFLEX ALTERNATOR / BearingsSingle Bearing
Spec Sheet / VFLEX ALTERNATOR / Field TypeRotating
Spec Sheet / VFLEX ALTERNATOR / CouplingDirect Flexible Disc
Spec Sheet / VFLEX ALTERNATOR / Insulation Class - RotorClass H
Spec Sheet / VFLEX ALTERNATOR / Prototype Short Circuit TestYes
Spec Sheet / VFLEX ALTERNATOR / Voltage Regulator TypeAVR
Spec Sheet / VFLEX ALTERNATOR / Total Harmonic Distortion (THD)<3.5%
Spec Sheet / VFLEX ALTERNATOR / Quantity of Sensed Phases1
Spec Sheet / VFLEX ALTERNATOR / Telephone Interference Factor (TIF)<50
Spec Sheet / VFLEX ALTERNATOR / Regulation Accuracy (Steady State)±0.5%
Spec Sheet / POWER RATINGS / 1-phase, 120/240 VAC @ 1.0 pf-zig zag / Standard Alternator Standby: kW55/55 (229)
Spec Sheet / POWER RATINGS / 1-phase, 120/240 VAC @ 1.0 pf-zig zag / Standard Alternator Prime: kW/k55/55 (229)
Spec Sheet / POWER RATINGS / 1-phase, 120/240 VAC @ 1.0 pf-zig zag / SUPERSTART Alternator Standby: 55/55 (229)
Spec Sheet / POWER RATINGS / 1-phase, 120/240 VAC @ 1.0 pf-zig zag / SUPERSTART Alternator Prime: kW55/55 (229)
Spec Sheet / POWER RATINGS / 1-phase, 120/240 VAC @ 1.0 pf-zig zag / VFLEX Alternator Standby: kW/kV29/29 (121)
Spec Sheet / POWER RATINGS / 1-phase, 120/240 VAC @ 1.0 pf-zig zag / VFLEX Alternator Prime: kW/kVA 29/29 (121)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf-low wye / Standard Alternator Standby: kW68/85 (236)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf-low wye / Standard Alternator Prime: kW/k60/75 (208)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf-low wye / SUPERSTART Alternator Standby: 68/85 (236)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf-low wye / SUPERSTART Alternator Prime: kW60/75 (208)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf-low wye / VFLEX Alternator Standby: kW/kV60/75 (208)
Spec Sheet / POWER RATINGS / 3-phase, 208/120 VAC @ 0.8 pf-low wye / VFLEX Alternator Prime: kW/kVA 52/65 (180)
Spec Sheet / POWER RATINGS / 3-phase, 240/120 VAC @ 0.8 pf-delta / Standard Alternator Standby: kW/k68/85 (204)
Spec Sheet / POWER RATINGS / 3-phase, 240/120 VAC @ 0.8 pf-delta / Standard Alternator Prime: kW/kVA60/75 (180)
Spec Sheet / POWER RATINGS / 3-phase, 240/120 VAC @ 0.8 pf-delta / SUPERSTART Alternator Standby: kW68/85 (204)
Spec Sheet / POWER RATINGS / 3-phase, 240/120 VAC @ 0.8 pf-delta / SUPERSTART Alternator Prime: kW/k60/75 (180)
Spec Sheet / POWER RATINGS / 3-phase, 240/120 VAC @ 0.8 pf-delta / VFLEX Alternator Standby: kW/kVA 60/75 (180)
Spec Sheet / POWER RATINGS / 3-phase, 240/120 VAC @ 0.8 pf-delta / VFLEX Alternator Prime: kW/kVA (A52/65 (156)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf-high wye / Standard Alternator Standby: k68/85 (102)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf-high wye / Standard Alternator Prime: kW/60/75 (90)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf-high wye / SUPERSTART Alternator Standby:68/85 (102)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf-high wye / SUPERSTART Alternator Prime: k60/75 (90)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf-high wye / VFLEX Alternator Standby: kW/k68/85 (102)
Spec Sheet / POWER RATINGS / 3-phase, 480/277 VAC @ 0.8 pf-high wye / VFLEX Alternator Prime: kW/kVA60/75 (97)
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf-high wye / Standard Alternator Standby: kN/A
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf-high wye / Standard Alternator Prime: kW/N/A
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf-high wye / SUPERSTART Alternator Standby:N/A
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf-high wye / SUPERSTART Alternator Prime: kN/A
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf-high wye / VFLEX Alternator Standby: kW/k68/85 (81)
Spec Sheet / POWER RATINGS / 3-phase, 600/346 VAC @ 0.8 pf-high wye / VFLEX Alternator Prime: kW/kVA60/75 (75)
Spec Sheet / DIMENSIONS AND WEIGHTS / Skid / Weight (Dry)3,830 (1,740)
Spec Sheet / DIMENSIONS AND WEIGHTS / Trailer / Weight (Dry)4,530 (2055)
Spec Sheet / DIMENSIONS AND WEIGHTS / Skid / Dimensions - L×W×H119 (3.02)×40 (1.02)×62 (1.57)
Spec Sheet / DIMENSIONS AND WEIGHTS / Trailer / Dimensions - L×W×H170 (4.31)×69 (1.75)×80 (2.03)
Spec Sheet / DIMENSIONS AND WEIGHTS / Skid / Weight (Operating)4,790 (2,170)
Spec Sheet / DIMENSIONS AND WEIGHTS / Trailer / Weight (Operating)5,490 (2,490)
AlternatorMarathon Electric (361PSL1647)
Standby Power68 kW, 85 kVA, 60 Hz
Spec Sheet / ENGINE / Cooling System / Cooling System Capacity - qt (L)22.0 (20.8)
Spec Sheet / ENGINE / Fuel System / Fuel Injection Pump - MakeDenso (HP3)
Spec Sheet / ENGINE / (Model) / Fuel Pump TypeEngine Gear Driven
Spec Sheet / ENGINE / (Model) / Injector TypeElectronic
Spec Sheet / ENGINE / (Model) / Engine TypeDirect Injection High Pressure Common
Spec Sheet / ENGINE / (Model) / Fuel Supply Line Diameter - in0.375 (9.5)
Spec Sheet / ENGINE / (mm) / Fuel Return Line Diameter - in0.375 (9.5)
Spec Sheet / ENGINE / Engine Electrical System / Battery Charger Alternator - VDC12 (90)
Spec Sheet / ENGINE / (A) / Battery - CCA720
Spec Sheet / ENGINE / (A) / Battery - V (Qty)12 (1)
Spec Sheet / ENGINE / (A) / Ground PolarityNegative (-)
