John Deere

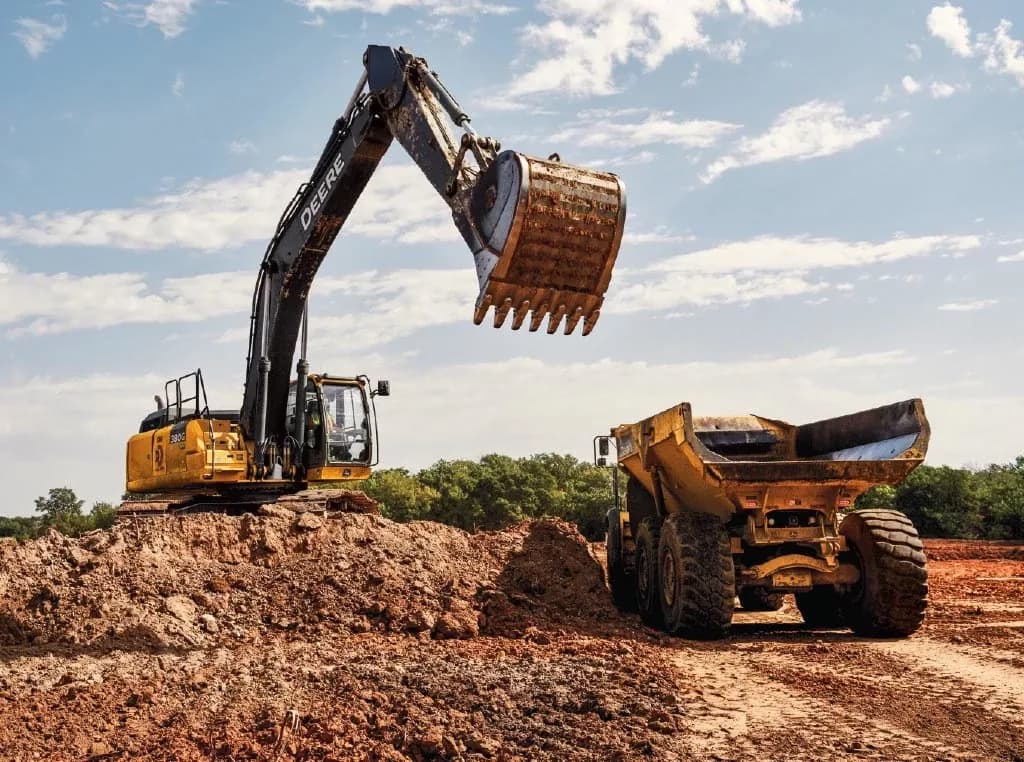

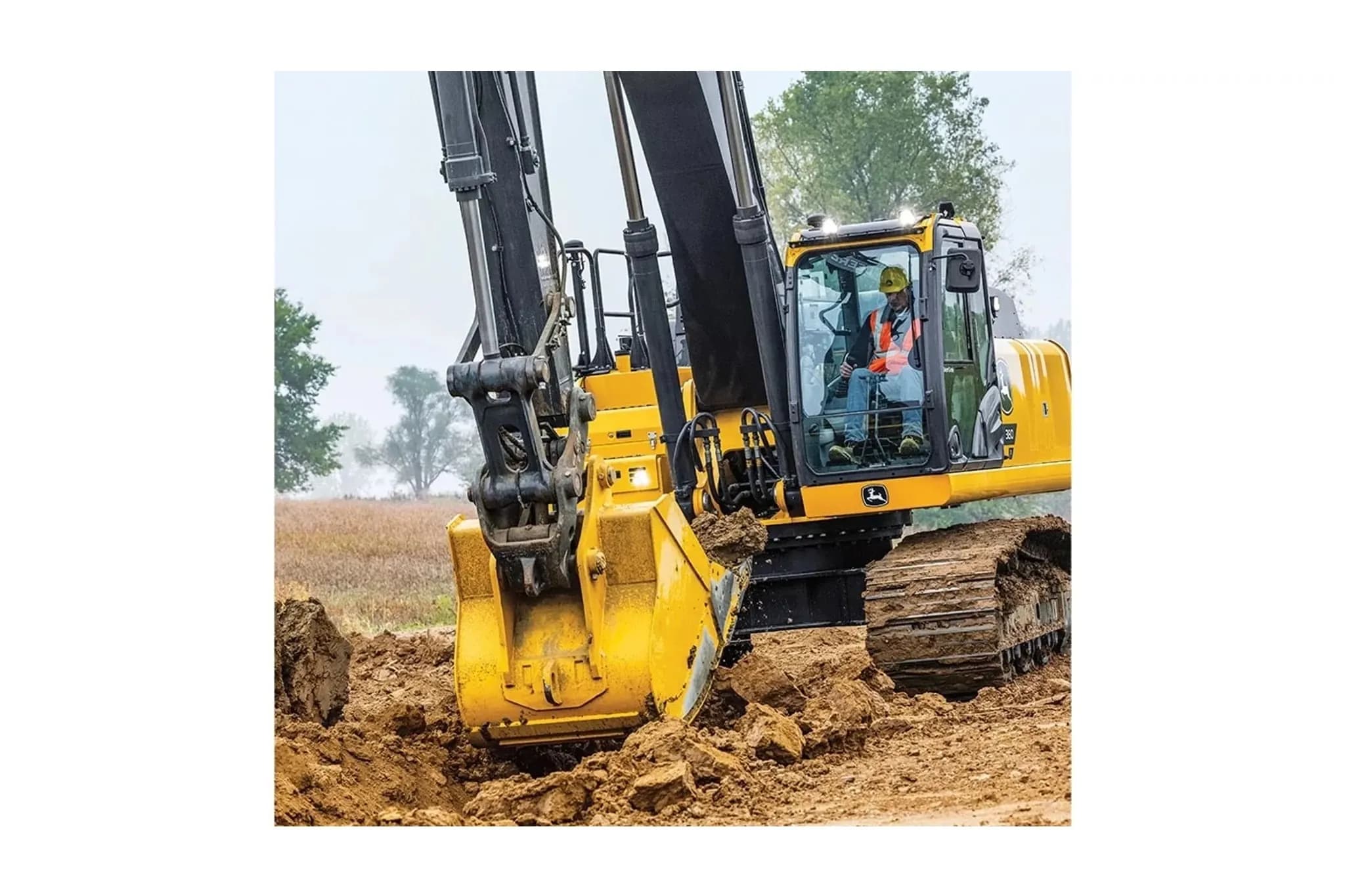

380 P-Tier Mid-Size Excavator

Name: 380 P-Tier Mid-Size Excavator
Brand: John Deere
SKU: JOHNDEERE-8010FF

رقم القطعة: JOHNDEERE-8010FF

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

380 P-Tier Mid-Size Excavator

المواصفات

Displacement	9.0 L (549 cu. in.)
Fuel Tank	628 L (166 gal.) Hydraulic System 290 L (77 gal.)
Diesel Exhaust Fluid (DEF) Tank	35 L (9.3 gal.) Swing Drive 11.8 L (12.5 qt.)
Engine Oil With Filter	27 L (7.2 gal.) Propel (each) 8.5 L (9.0 qt.)
No derating is required up to	3050-m (10,000 ft.) altitude. Specifications and design subject to change without notice. Wherever applicable,
Model	380 P-Tier
Base Code	8010FF
Division	construction-equipment
Product Family	excavators
(8 ft.	0 in.) Flat Bottom
Net Rated Power (ISO 9249)	202 kW (271 hp) at 1,900 rpm
Off-Level Capacity	70% (35 deg.)
Low	3.2 km/h (2.0 mph)
High	5.0 km/h (3.1 mph)
Drawbar Pull	30 350 kg (66,900 lb.)
Maximum Rated Flow	288 L/m (76.1 gpm) x 2
Pressure Setting	3900 kPa (566 psi)
Implement	34 300 kPa (4,975 psi)
Travel	35 500 kPa (5,149 psi)
Swing	33 300 kPa (4,830 psi)
Power Boost	38 000 kPa (5,511 psi)
Boom (2)	145 mm (5.7 in.) 100 mm (3.9 in.) 1520 mm (59.8 in.)
Arm (1)	170 mm (6.7 in.) 115 mm (4.5 in.) 1740 mm (68.5 in.)
Bucket (1)	140 mm (5.5 in.) 95 mm (3.7 in.) 1250 mm (49.2 in.)
Speed	10.7 rpm
Torque	120 000 Nm (88,500 lb.-ft.)
Cooling System	39.7 L (10.5 gal.) Gearbox
Hydraulic Tank	193 L (51 gal.) Pump Drive 1.1 L (1.2 qt.)
With full fuel tank;	79-kg (175-lb.) operator; 1.76-m (2.3 cu. yd.), 1372-mm (54 in.), 1532-kg (3,377 lb.) heavy-duty (HD) bucket; 4.0-m (13 ft. 1 in.) arm; 7629-kg (16,819 lb.)
Boom-Lift Cylinders (2), Total Weight	624 kg (1,376 lb.)
Arm Length	3.2 m (10 ft. 6 in.) 4.0 m (13 ft. 1 in.)
A Maximum Reach	11.10 m (36 ft. 5 in.) 11.86 m (38 ft. 11 in.)
A Maximum Reach at Ground Level	10.89 m (35 ft. 9 in.) 11.67 m (38 ft. 3 in.)
B Maximum Digging Depth	7.38 m (24 ft. 3 in.) 8.18 m (26 ft. 10 in.)
B Maximum Digging Depth at	2.44-m 7.21 m (23 ft. 8 in.) 8.04 m (26 ft. 5 in.)
C Maximum Cutting Height	10.36 m (34 ft. 0 in.) 10.75 m (35 ft. 3 in.)
D Maximum Dumping Height	7.24 m (23 ft. 9 in.) 7.63 m (25 ft. 0 in.)
E Minimum Swing Radius	4.46 m (14 ft. 8 in.) 4.47 m (14 ft. 8 in.)
F Maximum Vertical Wall	6.42 m (21 ft. 1 in.) 7.27 m (23 ft. 10 in.)
A Overall Length	11.20 m (36 ft. 9 in.) 11.29 m (37 ft. 1 in.)
B Overall Height	3.27 m (10 ft. 9 in.) 3.60 m (11 ft. 10 in.)
C Rear-End Length/Swing Radius	3.60 m (11 ft. 10 in.) 3.60 m (11 ft. 10 in.)
E Undercarriage Length	4.94 m (16 ft. 2 in.) 4.94 m (16 ft. 2 in.)
F Counterweight Clearance	1.18 m (3 ft. 10 in.) 1.18 m (3 ft. 10 in.)
G Upperstructure Width	2.99 m (9 ft. 10 in.) 2.99 m (9 ft. 10 in.)
H Cab Height	3.17 m (10 ft. 5 in.) 3.17 m (10 ft. 5 in.)
J Gauge Width	2.59 m (8 ft. 6 in.) 2.59 m (8 ft. 6 in.)
K Ground Clearance	0.50 m (20 in.) 0.50 m (20 in.)
1.5 m (5 ft.)	3.0 m (10 ft.) 4.5 m (15 ft.) 6.0 m (20 ft.) 7.5 m (25 ft.) 9.0 m (30 ft.)
With	3.2-m (10 ft. 6 in.) arm and 6.4-m (21 ft. 0 in.) HD boom, less bucket
Deere	3.2-m (10 ft. 6 in.) Arm
s Arm,	3.2 m (10 ft. 6 in.)
Operating Weight	38 765 kg (85,462 lb.)
2,000	2,200 2,600 3,200 lb./cu. yd. 1,600 3,400 1,200 1,400 1,800 2,400 2,800 3,000 3,600
s Right rear left	270-deg. camera system
800 mm (32 in.)	3.39 m (11 ft. 2 in.) 3.39 m (11 ft. 2 in.)
Manufacturer and Model John Deere PowerTech™ PSS	9.0 L
Counterweight, Standard	7629 kg (16,819 lb.)
D Distance Between Idler/Sprocket	4.05 m (13 ft. 3 in.) 4.05 m (13 ft. 3 in.)
UP TO	7%
counterweight; and	800-mm (32 in.) triple semi-grouser shoes
6.4-m (21 ft.	0 in.) HD One-Piece 3380 kg (7,452 lb.)
4.0 m (13 ft.	1 in.) 1898 kg (4,184 lb.)
1.76-m (2.3 cu. yd.),	1372-mm (54 in.) 1532 kg (3,377 lb.)
I Track Width With Shoes	700 mm (28 in.) HD / 800 mm (32 in.) 700 mm (28 in.) HD / 800 mm (32 in.)
Type Bucket Width Capacity Weight Dig Force	3.2 m (10 ft. 6 in.) 4.0 m (13 ft. 1 in.) Tip Radius of Teeth
Single-bar shoes,	700-mm (28 in.) Heavy Floor mat
l Triple semi-grouser shoes,	800 mm speeds auxiliary hydraulics with auxiliary function
800-mm (32 in.) Steel Track With Triple	53.5 kPa (7.77 psi)
Undercarriage, HD, With	800-mm 13 550 kg (29,872 lb.)
3.2-m (10 ft.	6 in.) 2010 kg (4,431 lb.)
700 mm (28 in.) HD	3.29 m (10 ft. 10 in.) 3.29 m (10 ft. 10 in.)
boost). Machine equipped without bucket and with	800-mm (32 in.) shoes; standard gauge; and situated on firm, uniform supporting surface. Total load includes weight
Retractable seat belt,	76 mm (3 in.) s
7629-kg (16,819 lb.) counterweight,	800-mm (32 in.) triple semi-grouser shoes. full fuel tank, and 79-kg (175 lb.) operator.
