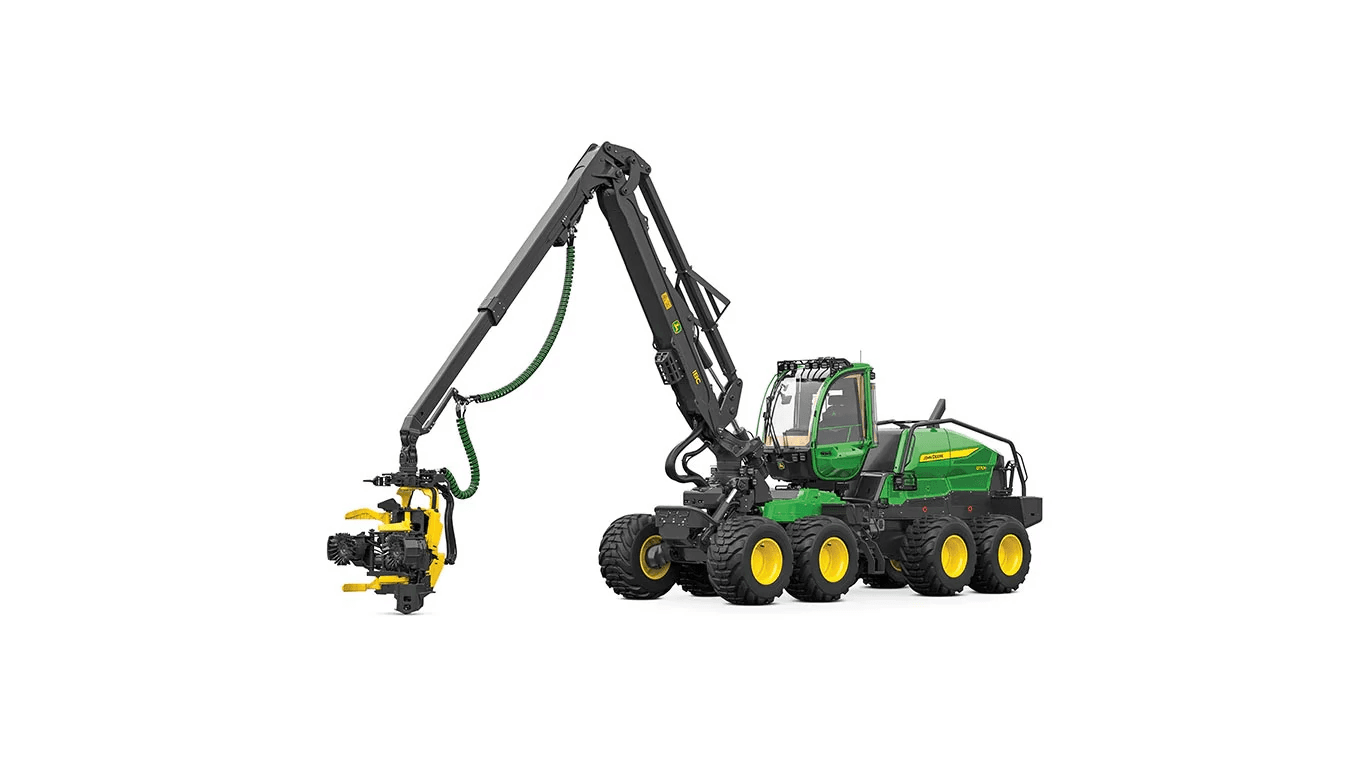

1270H Wheeled Harvester

Name: 1270H Wheeled Harvester
Brand: John Deere
SKU: JOHNDEERE-0900WJ

رقم القطعة: JOHNDEERE-0900WJ

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

1270H Wheeled Harvester

Displacement	9 L (549 cu. in.)
Fuel Tank	467 L (123 gal.)
Model	1270H
Base Code	0900WJ
Division	forestry-equipment
Product Family	wheeled-harvesters
Torque	1445 Nm (1,065 ft.-lb.)
Boom,	26 MPa (3,771 psi)
Transport height	3.88 m (12.7 ft.) 3.88 m (12.7 ft.)
Slewing Angle	220 deg.
Power	220 kW (295 hp) 220 kW (295 hp)
Maximum Reach	8.6 m (28.2 ft.) / 10.0 m (32.8 ft.) / 11.7 m (38.4 ft.)
Diesel Exhaust Fluid (DEF) Liquid Tank	25 L (6.6 gal.)
Hydraulic Oil Tank	302 L (80 gal.)
B + C Wheelbase	4.27 m (12 ft.) 4.45 m (14.6 ft.)
D Machine Width	2.96 m (9.7 ft.) 2.96 m (9.7 ft.)
E Ground Clearance	61.6 cm (24.5 in.) 61.6 cm (24.5 in.)
A Length	11.92 m (39.1 ft.) 12.12 m (39.8 ft.)
Tilt Angle	28 deg. / 20 deg.
Harvester Head	35 MPa (5,076 psi) / 28 MPa (4,061 psi)
Stump-Treatment Tank	135 L (35 gal.)
Front Tires	673 mm (26.5 in.) 673 mm (26.5 in.)
Rear Tires	863 mm (34.0 in.) 673 mm (26.5 in.)
