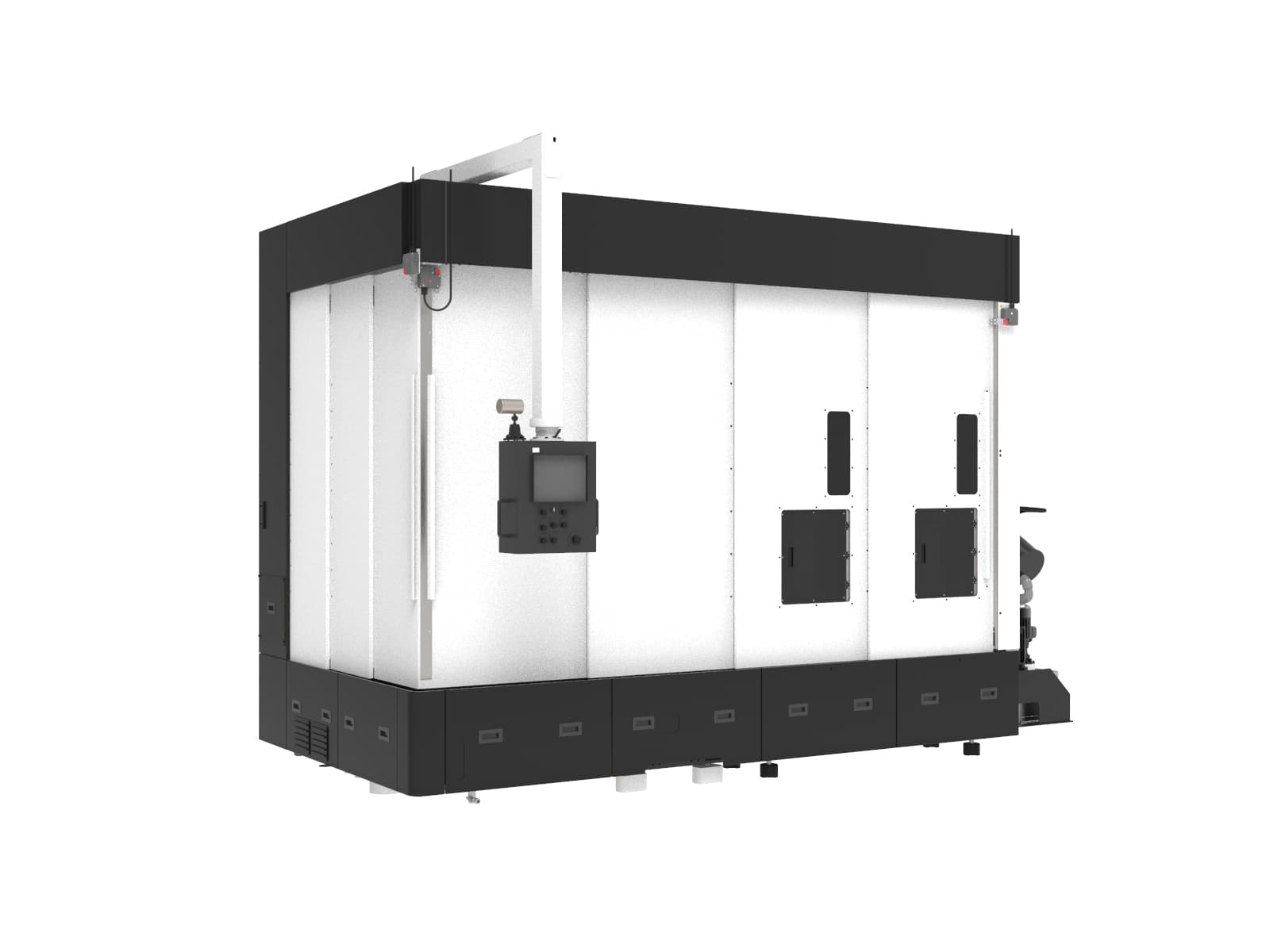

MWM3050nQ
رقم القطعة: KOMATSU-MWM3050NQ
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
MWM3050nQ
المواصفات
| Machine weight (lbs) | 32408 |
|---|---|
| Machine weight (kg) | 14700 |
| Machine size (W x D x H) (mm) | 2,000 x 3,550 x 3,500 |
| Machine size (W x D x H) (in) | 78.7 x 139.8 x 137.8 |
| Tension range (N) | 15-34 |
| Machine size (W x L x H) (mm) | 2,000 x 3,550 x 3,500 |
| Machine size (W x L x H) (in) | 78.7 x 139.8 x 137.8 |
| Processing method | Slurry |
| Max workpiece size (D x L x No.) (in) | Φ11.8 x L17.7 x 1pc |
| Wire running method | Uni-directional/bi-directional/switchable |
| Max workpiece size (D x L x No.) (mm) | Φ300 x L450 x 1pc |
| Max wire speed (ft/min) | 3281 |
| Max wire speed (m/min) | 1000 |
| Wire storage capacity | Φ0.14mm × 500km |
| Cutting feed speed (in/min) | 0.0004-0.98 |
| Cutting feed speed (mm/min) | 0.01-2.50 |
| Power source used | 200V ± 10% |
| Power consumption (kVA) | 115 |
| Compressed air used | 600NL / min, 0.4MPa min |
| Equipped NC | FANUC |
| Specialties | Wire saw |
