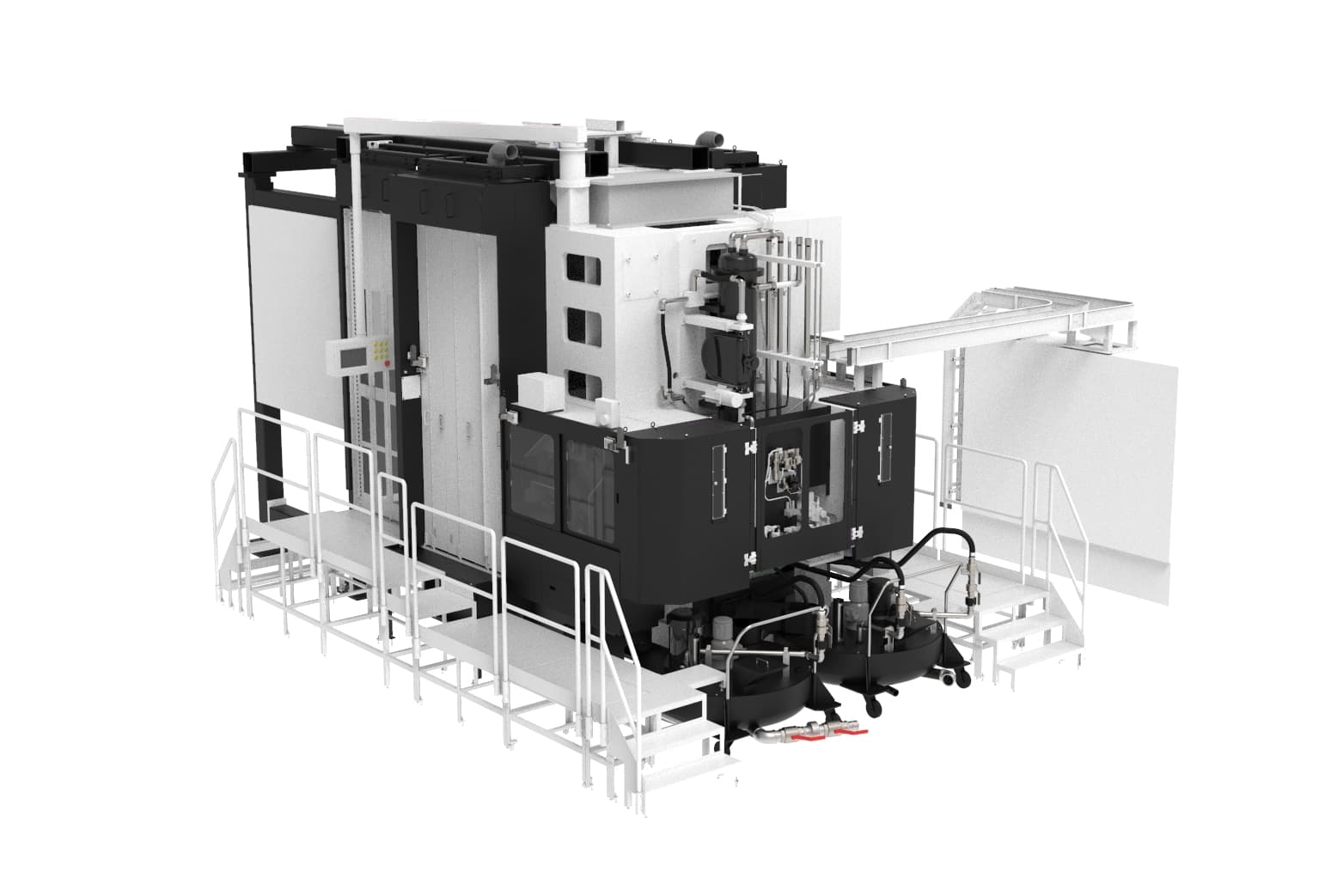

MWM11411
رقم القطعة: KOMATSU-MWM11411
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
MWM11411
المواصفات
| Machine weight (lbs) | 67241 |
|---|---|
| Machine weight (kg) | 30500 |
| Machine size (W x D x H) (mm) | 5,000 x 6,400 x 4,400 |
| Machine size (W x D x H) (in) | 196.9 x 252.0 x 173.2 |
| Tension range (N) | 25-100 |
| Machine size (W x L x H) (mm) | 5,000 x 6,400 x 4,400 |
| Machine size (W x L x H) (in) | 196.9 x 252.0 x 173.2 |
| Processing method | Slurry |
| Max workpiece size (D x L x No.) (in) | 43.3 x 39.4 x L13.8 x 1 unit |
| Wire running method | Uni-directional/bi-directional/switchable |
| Max workpiece size (D x L x No.) (mm) | 1,100 x 1,000 x L350 x 1 unit |
| Max wire speed (ft/min) | 2625 |
| Max wire speed (m/min) | 800 |
| Wire storage capacity | Φ0.18mm x 500km / Φ0.32mm x 145km |
| Cutting feed speed (in/min) | 0.0008-0.098 |
| Cutting feed speed (mm/min) | 0.02-2.5 |
| Power source used | 200V ± 10% |
| Power consumption (kVA) | 110 |
| Compressed air used | 600NL / min, 0.4MPa |
| Equipped NC | FANUC |
