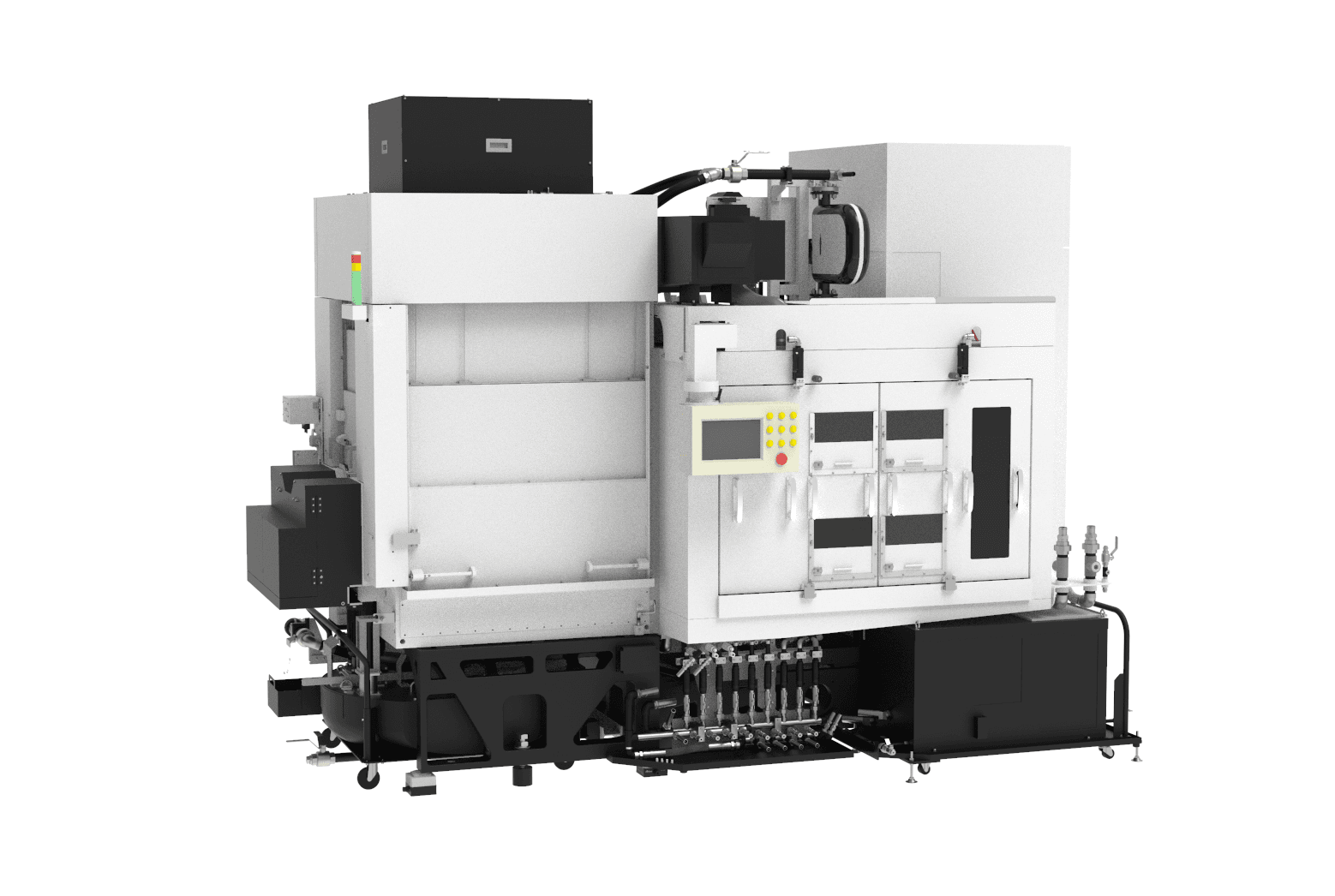

ND200
رقم القطعة: KOMATSU-ND200
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
ND200
المواصفات
| Machine weight (lbs) | 29101 |
|---|---|
| Machine weight (kg) | 13200 |
| Machine size (W x D x H) (mm) | 2,250 x 3,955 x 3,070 |
| Machine size (W x D x H) (in) | 88.6 x 155.7 x 120.9 |
| Tension range (N) | 5-25 |
| Machine size (W x L x H) (mm) | 2,250 x 3,955 x 3,070 |
| Machine size (W x L x H) (in) | 88.6 x 155.7 x 120.9 |
| Processing method | Diamond wire |
| Max workpiece size (D x L x No.) (in) | Φ7.9 x L27.6 x 1pc (Standard specifications); Φ7.9 x L15.7 x 1pc (Equipped with gonio function) |
| Wire running method | Uni-directional/bi-directional/switchable |
| Max workpiece size (D x L x No.) (mm) | Φ200 x L700 x 1pc (Standard specifications); Φ200 x L400 x 1pc (Equipped with gonio function) |
| Max wire speed (ft/min) | 7218 |
| Max wire speed (m/min) | 2200 |
| Wire storage capacity | Φ0.12mm × 100km |
| Cutting feed speed (in/min) | 0.004-0.2 |
| Cutting feed speed (mm/min) | 0.1-5.0 |
| Power source used | 380V ± 10% |
| Power consumption (kVA) | 132 |
| Compressed air used | 600NL / min, 0.4MPa min |
| Equipped NC | FANUC |
| Specialties | Wire saw |
| Max workpiece size (D x L x No.) (in) (Specifications) | Φ7.9 x L25.6 x 1pc (Standard specifications); Φ7.9 x L15.7 x 1pc (Equipped with gonio function) |
