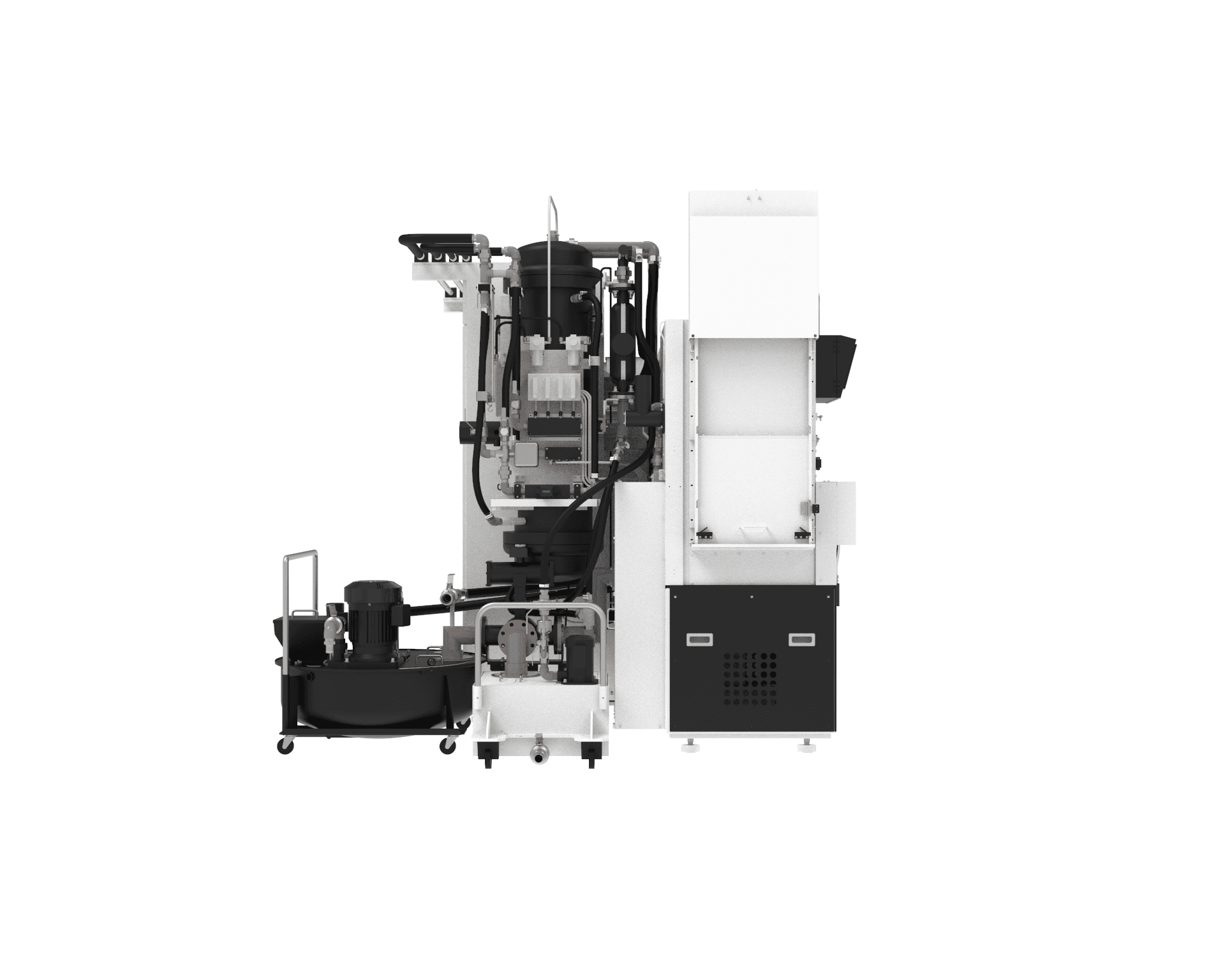

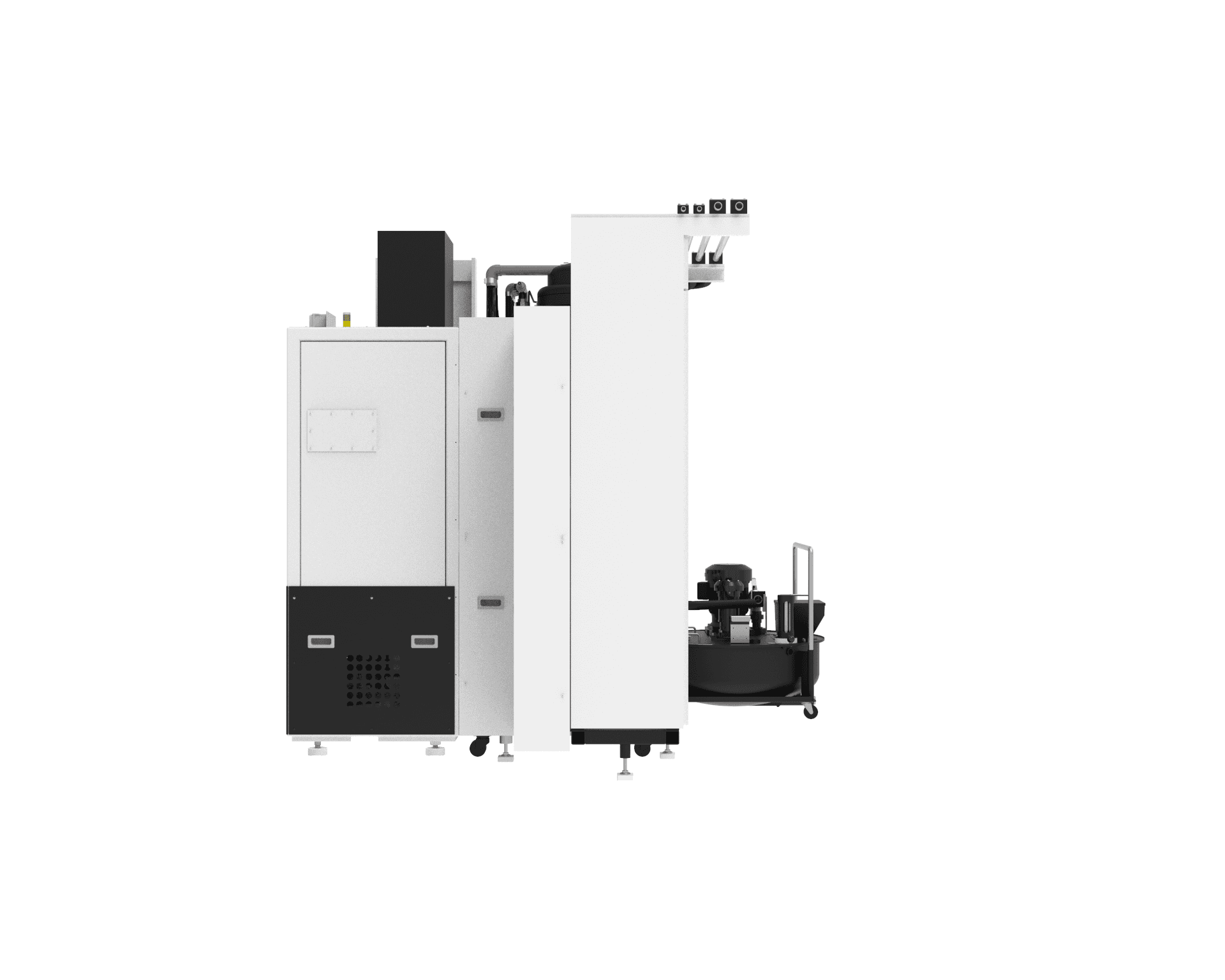

MWM442DM
رقم القطعة: KOMATSU-MWM442DM
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
MWM442DM
المواصفات
| Machine weight (lbs) | 12125 |
|---|---|
| Machine weight (kg) | 5500 |
| Tension range (N) | 10-50 |
| Machine size (W x L x H) (mm) | 1,800 x 2,650 x 2,615 |
| Machine size (W x L x H) (in) | 71 x 104 x 103 |
| Processing method | Slurry |
| Max workpiece size (D x L x No.) (in) | Φ5.9×L11.8×2pc (Standard specifications), Φ3.9×L11.8×3pc (Option), Φ7.9×L11.8×1pc (Special specifications) |
| Wire running method | Uni-directional/bi-directional/switchable |
| Max workpiece size (D x L x No.) (mm) | Φ150×L300×2pc (Standard specifications), Φ100×L300×3pc (Option), Φ200×L300×1pc (Special specifications) |
| Max wire speed (ft/min) | 3281 |
| Max wire speed (m/min) | 1000 |
| Wire storage capacity | Φ0.12mm × 300km |
| Cutting feed speed (in/min) | 0.0004-0.098 |
| Cutting feed speed (mm/min) | 0.01-2.50 |
| Power source used | 200V ± 10% |
| Power consumption (kVA) | 37 |
| Compressed air used | 600NL / min, 0.4MPa min |
| Equipped NC | FANUC |
| Specialties | Wire saw |
