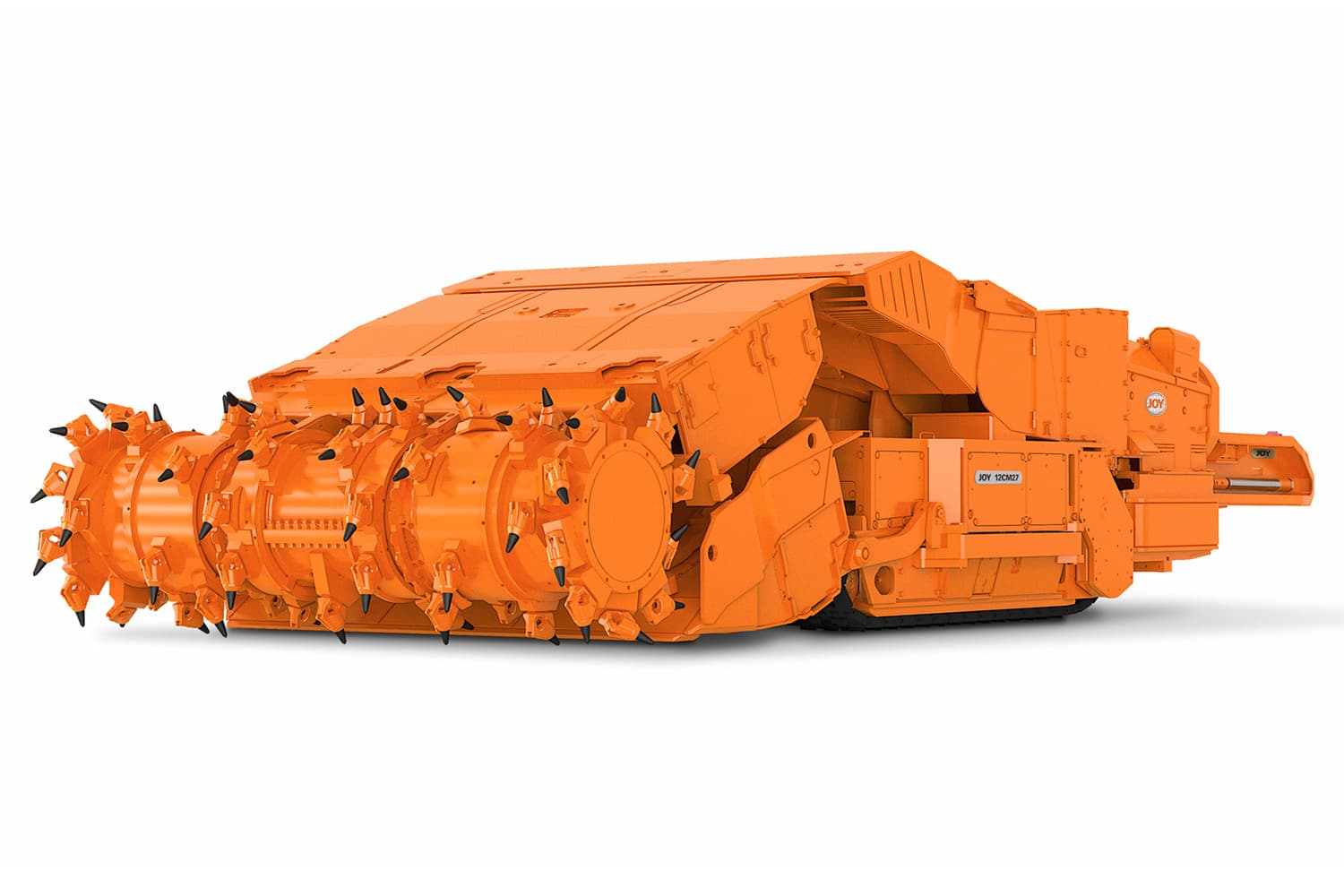

12CM27
رقم القطعة: KOMATSU-12CM27
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
12CM27
المواصفات
| Ground clearance (in) | 12 |
|---|---|
| Ground clearance (mm) | 305 |
| Conveyor width (in) | 38 |
| Conveyor width (mm) | 965 |
| Tram speed (m/min) | First - 4.6, Second - 9.1, Third - 19.8, Third (optional, turbo) - 25.9 |
| Ground pressure (kPa) | 245 |
| Ground pressure (psi) | 35 |
| Weight (kg) | 71 110 |
| Weight (lbs) | 170,000 |
| Cutter head diameter (in) | 47.25, 51.5, 54 |
| Maximum cutting height (in) | 145 - 197 |
| Maximum cutting height (mm) | 3 685 - 5 000 |
| Minimum cutting height (in) | 63 - 98 |
| Minimum cutting height (mm) | 1 600 - 2 500 |
| Total power (HP) | 992 HP @ 950 V 60 Hz; 1,005 HP @ 2,300 V 60 Hz; 918 HP @ 950 V 50 Hz; 1,052 HP @ 3,300 V 50 Hz |
| Total power (kW) | 740 kW @ 950 V 60 Hz; 750 kW @ 2 300 V 60 Hz; 685 kW @ 950 V 50 Hz; 785 kW @ 3 300 V 50 Hz |
| Cutter head design | Solid head |
| Cutter head diameter (mm) | 1 200, 1 310, 1 367 |
| Tram speed (ft/min) | First - 15, Second - 30, Third - 65, Third (optional, turbo) - 85 |
| Machine input voltage | 950 V @ 50 or 60 Hz, 2,300 V @ 60 Hz, 3,300 V @ 50 Hz |
| Dust collector (kW) | *Optional: 22 or 30 kW @ 60 Hz, 19 or 26 kW @ 50 Hz |
| Cutter (HP) | 320 HP @ 950 V 60 Hz, 328 HP @ 2,300 V 60 Hz, 280 HP @ 950 V 50 Hz, 349 HP @ 3,300 V 50 Hz |
| Dust collector (HP) | 30 or 40 HP @ 60 Hz, 25 or 35 HP @ 50 Hz |
| Cutter (kW) | 240 kW @ 950 V 60 Hz, 245 kW @ 2 300 V 60 Hz, 210 kW @ 950 V 50 Hz, 260 kW @ 3 300 V 50 Hz |
| Pump (HP) | 54 HP @ 60 Hz, 74 HP @ 50 Hz |
| Pump (kW) | 40 kW @ 60 Hz, 55 kW @ 50 Hz |
| Gathering head (kW) | 50 kW x 2 @ 60 Hz, 45 kW x 2 @ 50 Hz |
| Gathering head (HP) | 67 HP x 2 @ 60 Hz, 60 HP x 2 @ 50 Hz |
| Traction (HP) | 80 HP x 2 |
| Traction (kW) | 60 kW x 2 |
| General footnote | Dust collector is optional and total power does not include dust collector fan |
