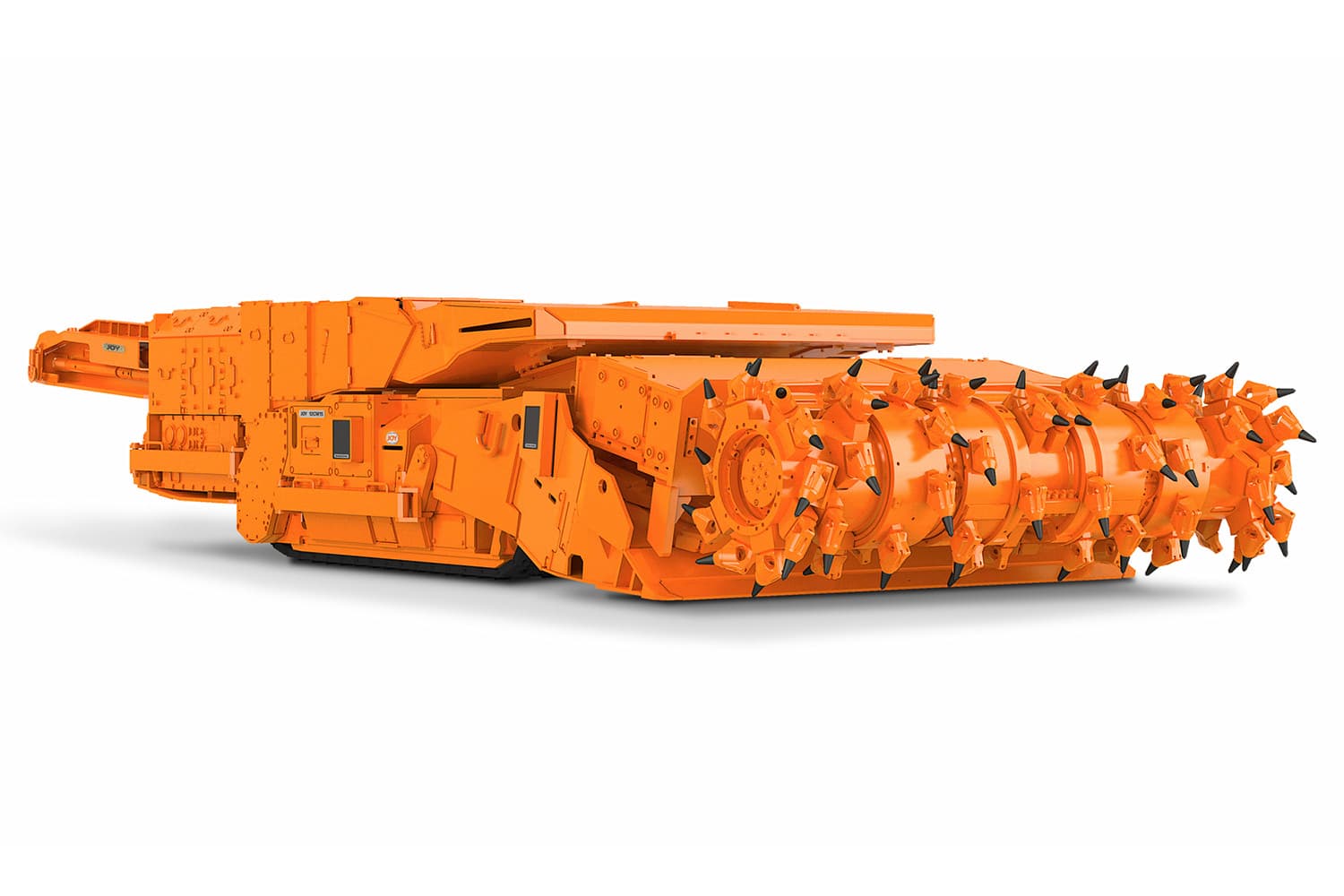

12CM15
رقم القطعة: KOMATSU-12CM15
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
12CM15
المواصفات
| Ground clearance (in) | 12 |
|---|---|
| Ground clearance (mm) | 305 |
| Conveyor width (in) | 30 |
| Conveyor width (mm) | 760 |
| Tram speed (m/min) | First - 4.6, Second - 9.1, Third - 19.8, Third (optional, turbo) - 25.9 |
| Ground pressure (kPa) | 200 |
| Ground pressure (psi) | 29 |
| Weight (kg) | 61 235 |
| Weight (lbs) | 135,000 |
| Cutter head diameter (in) | 44 |
| Maximum cutting height (in) | 145 - 181 |
| Maximum cutting height (mm) | 3 685 - 4 600 |
| Minimum cutting height (in) | 55 - 85 |
| Minimum cutting height (mm) | 1 400 - 2 150 |
| Total power (HP) | 818 HP @ 60 Hz, 811 HP @ 50 Hz |
| Total power (kW) | 610 kW @ 60 Hz, 605 kW @ 50 Hz |
| Cutter head design | Solid head |
| Cutter head diameter (mm) | 1 120 |
| Tram speed (ft/min) | First - 15, Second - 30, Third - 65, Third (optional, turbo) - 85 |
| Machine input voltage | 950 V @ 60 Hz, 950 or 1050 V @ 50 Hz |
| Dust collector (kW) | 22 or 30 kW @ 60 Hz, 19 or 26 kW @ 50 Hz |
| Cutter (HP) | 235 HP @ 60 Hz, 228 HP @ 50 Hz |
| Dust collector (HP) | 30 or 40 HP @ 60 Hz, 25 or 35 HP @ 50 Hz |
| Cutter (kW) | 175 kW @ 60 Hz, 170 kW @ 50 Hz |
| Pump (HP) | 54 HP @ 60 Hz, 74 HP @ 50 Hz |
| Pump (kW) | 40 kW @ 60 Hz, 55 kW @ 50 Hz |
| Gathering head (kW) | 50 kW x 2 @ 60 Hz, 45 kW x 2 @ 50 Hz |
| Gathering head (HP) | 67 HP x 2 @ 60 Hz, 60 HP x 2 @ 50 Hz |
| Traction (HP) | 80 HP x 2 |
| Traction (kW) | 60 kW x 2 |
| General footnote | Dust collector is optional and total power does not include dust collector fan |
