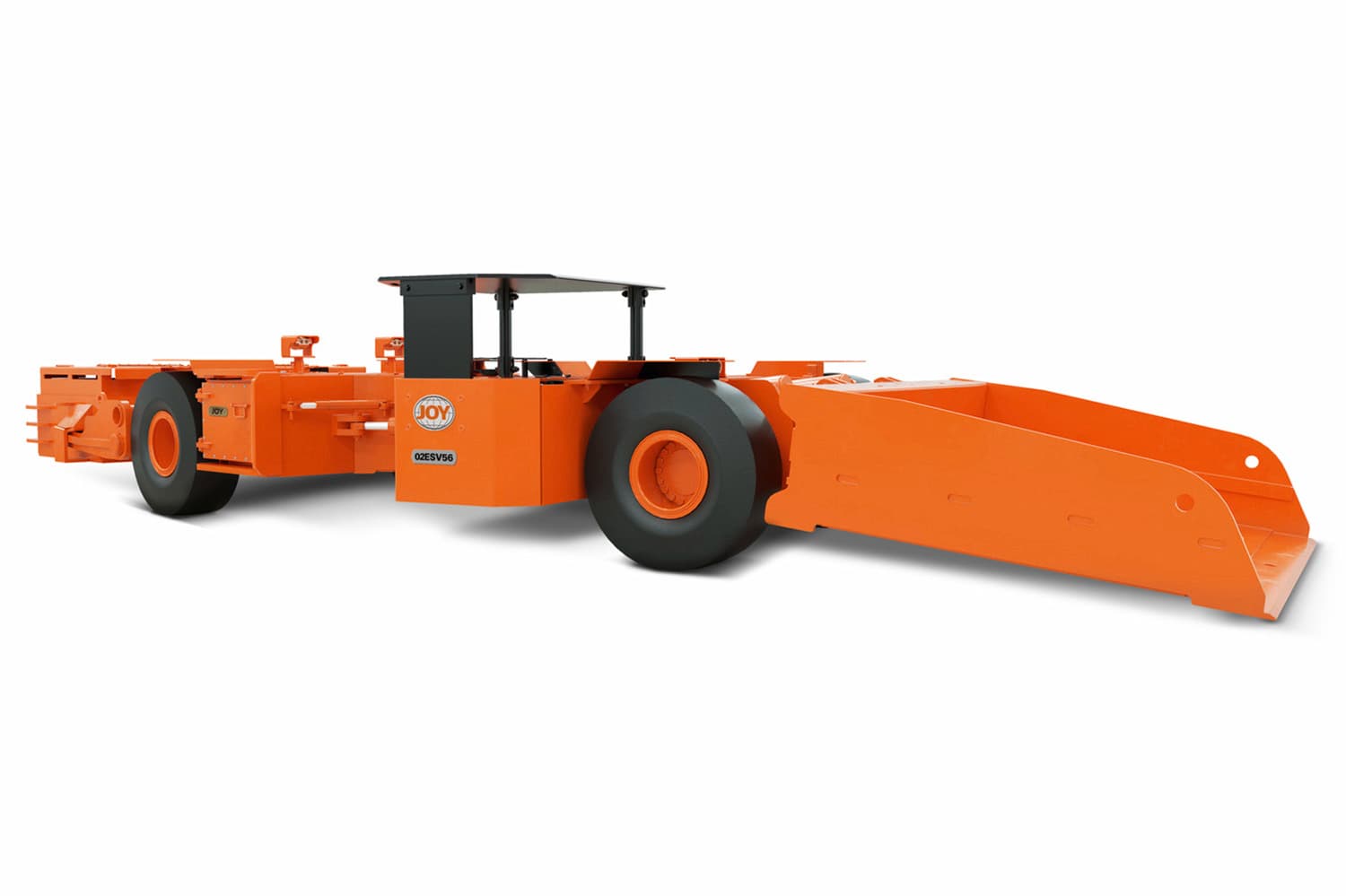

02ESV56
رقم القطعة: KOMATSU-02ESV56
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
02ESV56
المواصفات
| Ground clearance (in) | 11 - 13 |
|---|---|
| Seam height (cm) | 142 - 211 |
| Seam height (in) | 56 - 83 |
| Bucket capacity (m^3) | 3.43 |
| Ground clearance (cm) | 27.9 - 33.0 |
| Tram speed (kph) | 0 to 9.65 |
| Tram speed (mph) | 0 to 6 |
| Bucket capacity (ft^3) | 121 |
| Maximum payload (kg) | 27 590 |
| Maximum payload (lbs) | 60,827 |
| Length with bucket (m) | 9.17 |
| Length with bucket (ft) | 30 ft. 1.13 in |
| Basic machine width (ft) | 10 |
| Basic machine width (m) | 3.05 |
| Wheel base (ft) | 12 ft. 11 in |
| Wheel base (m) | 3.95 |
| Basic frame height (mm) | 635 |
| Basic frame height (in) | 25 |
| Batteries (Ah) | 930 |
| Batteries (kWh) | 214.8 |
| Estimated weight with batteries (kg) | 22 680 |
| Estimated weight with batteries (lbs) | 50,000 |
| Tram motor (1 hr rating- HP) | 75 |
| Tram motor (1 hour cont. rating - kW) | 55.9 |
| Tram motor (cont. rating - HP) | 50 |
| Tram motor (cont. rating - kW) | 37.3 |
| Pump motor (1 hr rating - HP) | 35 |
| Pump motor (1 hr rating - kW) | 26 |
| Pump motor (cont. rating - HP) | 25 |
| Pump motor (cont. rating - kW) | 18.6 |
| Breakout load rating (lbs) | 31,426 |
| Breakout load rating (kg) | 14 255 |
| Maximum payload general (lbs) | 60,827 |
| Maximum payload general (kg) | 27 590 |
| Steering angle | 40° (each side) |
| Inside turning radius (m) | 3.22 |
| Inside turning radius (ft) | 10 ft. 6.75 in |
| Payload (carrying) capacity (kg) | 10 000 |
| Payload (carrying) capacity (lbs) | 22,046 |
| Gross vehicle weight (kg) | 32 680 |
| Gross vehicle weight (lbs) | 72,046 |
