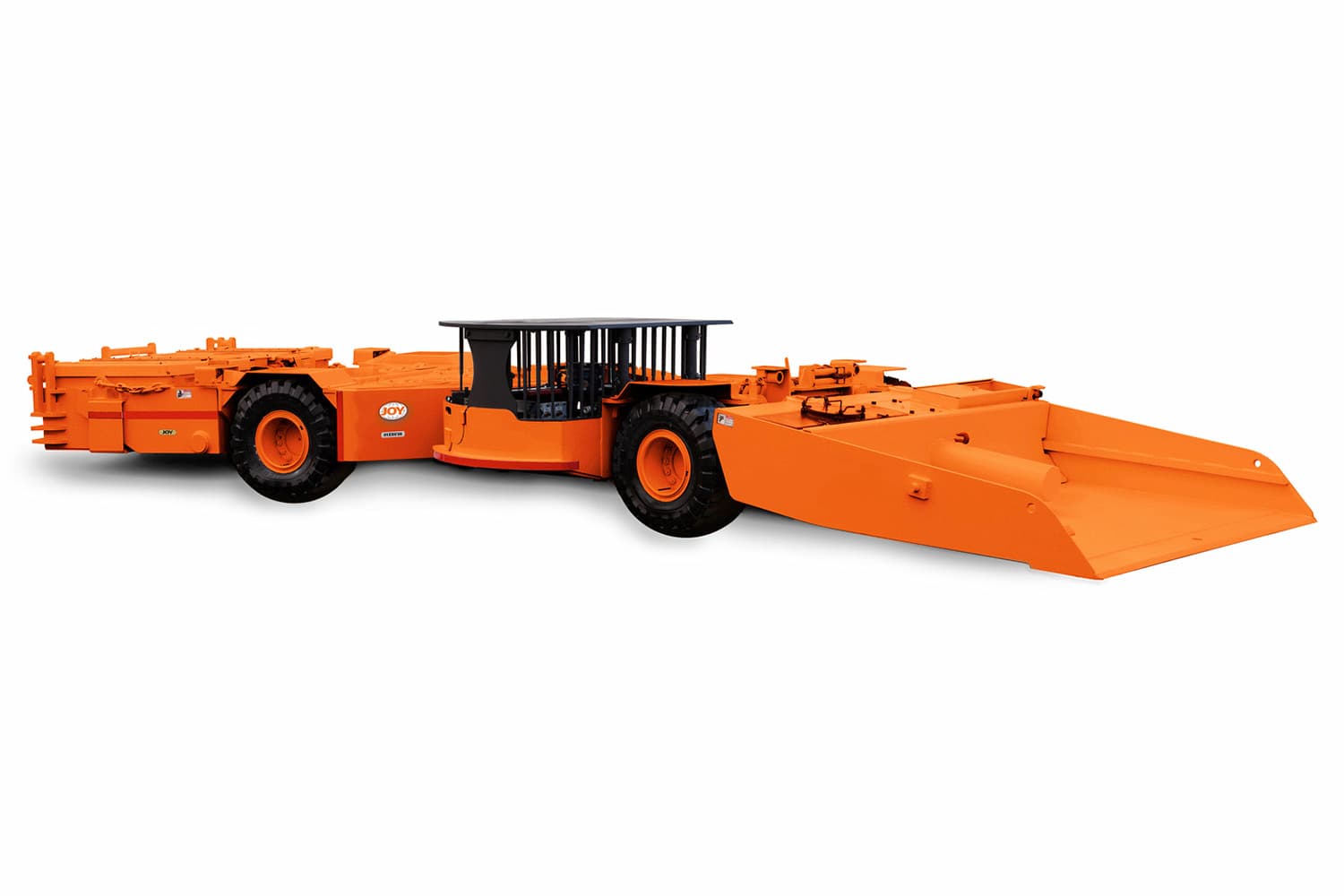

02ESV36
رقم القطعة: KOMATSU-02ESV36
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
02ESV36
المواصفات
| Ground clearance (in) | 9 - 13 |
|---|---|
| Seam height (cm) | 91 - 160 |
| Seam height (in) | 36 - 63 |
| Bucket capacity (m^3) | 3.4 |
| Ground clearance (cm) | 22.9 - 33 |
| Tram speed (kph) | 0 to 8 |
| Tram speed (mph) | 0 to 5 |
| Bucket capacity (ft^3) | 120 |
| Maximum payload (kg) | 14 970 |
| Maximum payload (lbs) | 40,118 |
| Length with bucket (m) | 8.7 |
| Length with bucket (ft) | 28 ft. 8.13 in |
| Basic machine width (ft) | 10 ft. 2.75 in |
| Basic machine width (m) | 3.1 |
| Wheel base (ft) | 12 |
| Wheel base (m) | 3.7 |
| Basic frame height (mm) | 50.8 |
| Basic frame height (in) | 20 |
| Batteries (Ah) | 660 |
| Batteries (kWh) | 158.4 |
| Estimated weight with batteries (kg) | 18 182 |
| Estimated weight with batteries (lbs) | 40,000 |
| Tram motor (1 hr rating- HP) | 75 |
| Tram motor (1 hour cont. rating - kW) | 55.9 |
| Tram motor (cont. rating - HP) | 50 |
| Tram motor (cont. rating - kW) | 37.3 |
| Pump motor (1 hr rating - HP) | 35 |
| Pump motor (1 hr rating - kW) | 26 |
| Pump motor (cont. rating - HP) | 25 |
| Pump motor (cont. rating - kW) | 18.6 |
| Breakout load rating (lbs) | 20,868 |
| Breakout load rating (kg) | 7 790 |
| Maximum payload general (lbs) | 40,118 |
| Maximum payload general (kg) | 14 970 |
| Steering angle | 40° (each side) |
| Inside turning radius (m) | 3.7 |
| Inside turning radius (ft) | 12 ft. 1.38 in |
