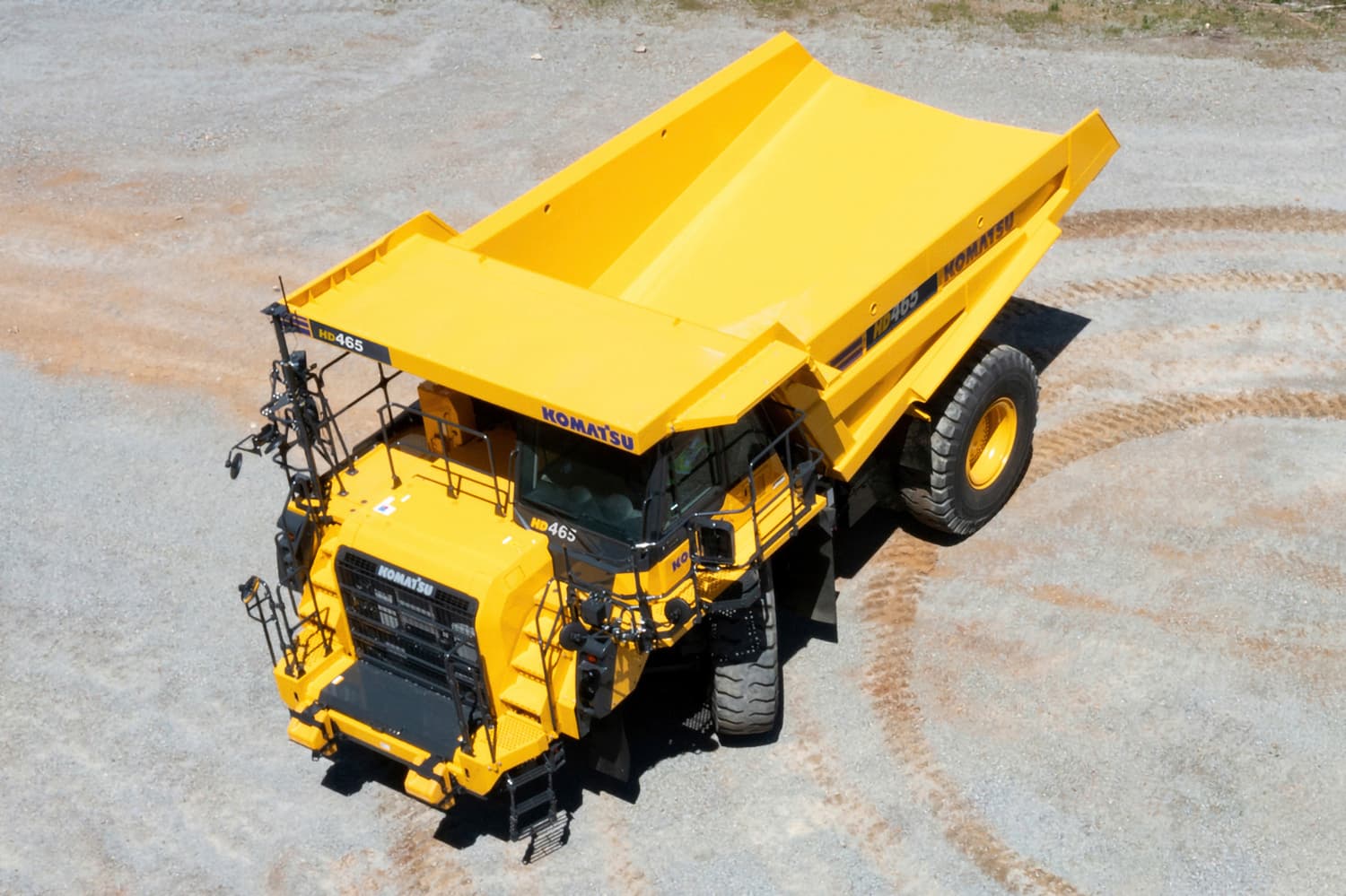

HD465-10
رقم القطعة: KOMATSU-HD465-10
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
HD465-10
المواصفات
| Maximum torque (ft-lbs) | 3,016 @ 1,400 rpm |
|---|---|
| Operating weight (kg) | 105 400 |
| Operating weight (lbs) | 232,367 |
| Engine model | Komatsu SAA6D170E-7 (EPA Tier 4 Final emissions certified) |
| Aspiration | Variable geometry, turbo-charged, air-to-air after-cooled, cooled Exhaust Gas Recirculation (EGR) |
| Number of cylinders | 6 |
| Piston displacement (L) | 23.15 |
| Piston displacement (in^3) | 1,413 |
| Governor | Electronically controlled |
| SAEJ1995 - Gross (kW) | 610 @ 2,000 rpm |
| SAEJ1995 - Gross (HP) | 818 @ 2,000 rpm |
| ISO 9249 / SAE J1349 - Net (HP) | 791 @ 2,000 rpm (590 kW @ 2,000 rpm) |
| Fan drive type | Hydraulic |
| Filter | Full-flow type |
| Method | Gear pump, force-lubrication |
| Fuel tank (US gal) | 211.3 |
| Fuel tank (L) | 800 |
| Engine oil (L) | 80 |
| Engine oil (US gal) | 21.1 |
| Final drive (US gal) | 11.1 |
| Final drive (L) | 42 |
| Bore (mm) | 170 x 170 |
| Bore (in) | 6.69 x 6.69 |
| Hydraulic system (US gal) | 39.4 |
| Hydraulic system (L) | 149 |
| Air cleaner | Dry type with double elements and pre-cleaner (cyclone pack type), and evacuator valve |
| Maximum travel speed (kph) | 70 |
| Maximum travel speed (mph) | 43.5 |
| Engine type | Water-cooled, 4-cycle |
| Parking brake type | Oil cooled, multiple disc type, spring operated, hydraulic releasing type |
| Transmission | Full-automatic, planetary type |
| Gross horsepower (HP) | 818 HP @ 2,000 rpm |
| Gross horsepower (kW) | 610 kW @ 2 000 rpm |
| Capacity (mt) | 55.5 |
| Capacity (st) | 61.2 |
| Bottom (in) | .63 |
| Bottom (mm) | 16 |
| Front (in) | .35 |
| Front (mm) | 9 |
| Sides (in) | .35 |
| Sides (mm) | 9 |
| Maximum torque (kg-m) | 417 @ 1,400 rpm |
| Front suspension type | Independent, hydro-pneumatic suspension cylinder with fixed throttle to dampen vibration. |
| Hoist cylinder type | Twin, 2-stage telescopic type |
| Fuel system | Direct injection |
| Relief pressure (kg/cm^2 / MPa) | 210 / 20.6 |
| Relief pressure (psi) | 2988 |
| Hoist time | 11.5 seconds |
| Torque converter | Three-elements, one-stage, two-phase |
| Speed range | Seven speeds forward and one reverse |
| Lockup clutch | Wet, multiple-disc clutch |
| Forward | Torque converter drive in 1st gear, direct drive in 1st lockup and all higher gears |
| Shift control | Electronic shift control with automatic clutch modulation in all gears |
| Brakes standard | ISO 3450 |
| Reverse | Torque converter drive |
| Final drive type | Planetary gear |
| Differential ratio | 3.538 |
| Planetary ratio | 4.737 |
| Steering system type | Fully hydraulic power steering with two double-acting cylinders |
| Supplementary steering | Manually controlled |
| Minimum turning radius wall to wall (ft) | 28 ft. 7 in |
| Minimum turning radius wall to wall (m) | 8.7 |
| Torque converter transmission retarder (L) | 224 |
| Torque converter transmission retarder (US gal) | 59.2 |
| Differentials (L) | 95 |
| Differentials (US gal) | 25.1 |
| Suspension (US gal) | 17.5 |
| Suspension (L) | 66.2 |
| Articulated type | Box-sectioned structure |
| Standard tire | 24.00 R35 |
| Struck capacity (2 : 1) unlined (standard) (m^3) | 24.8 |
| Struck capacity (2 : 1) unlined (standard) (yd^3) | 32.4 |
| Heaped capacity (2 : 1) unlined (standard) (yd^3) | 48.5 |
| Struck capacity (2 : 1) lined (m^3) | 24.7 |
| Heaped capacity (2 : 1) lined (m^3) | 36.5 |
| Heaped capacity (2 : 1) unlined (standard) (m^3) | 37.1 |
| Heaped capacity (2 : 1) lined (yd^3) | 47.7 |
| Struck capacity (2 : 1) lined (yd^3) | 32.3 |
| Side lined (standard) (in) | 0.35 |
| Front unlined (standard) (mm) | 9 |
| Mechanical stopper (degrees) | 7.7 |
| Front lined (standard) (in) | 0.35 |
| Oil stopper (degrees) | 6.8 |
| Bottom unlined (standard) (in) | 0.63 |
| Bottom lined (standard) (mm) | 16 |
| Bottom unlined (standard) (mm) | 16 |
| Body footnote | *Payload may vary depending on the machine and body configuration. Please contact distributor for details regarding your specific configuration |
| Retarder | Oil cooled, multiple disc type full hydraulic |
| Front lined (standard) (mm) | 9 |
| Front unlined (standard) (in) | 0.35 |
| Side lined (standard) (mm) | 9 |
| Bottom lined (standard) (in) | 0.63 |
| Max. gross vehicle weight (120 %) lined (kg) | 115700 |
| Maximum steering angle (degrees) | 39 |
| Rear axle | Full-floating |
| Nominal payload* lined (kg) | 51 400 |
| Nominal payload* unlined (standard) (lbs) | 122,356 |
| Gross vehicle weight lined (kg) | 105400 |
| Front distribution (loaded) *nominal lined (%) | 33.5 |
| Empty weight unlined (standard) (kg) | 49900 |
| Rear distribution (loaded) *nominal unlined (standard) (%) | 66.4 |
| Front suspension (mm) | 303 |
| Nominal payload* unlined (standard) (kg) | 55 500 |
| Rear distribution (loaded) *nominal lined (%) | 66.5 |
| Gross vehicle weight lined (lbs) | 232367 |
| Nominal payload* lined (lbs) | 113,327 |
| Empty weight lined (lbs) | 119040 |
| Front brake type | Dry type, single disc type full hydraulic |
| Gross vehicle weight unlined (standard) (lbs) | 232367 |
| Gross vehicle weight unlined (standard) (kg) | 105400 |
| Max. gross vehicle weight (120 %) unlined (standard) (lbs) | 256839 |
| Maximum payload (120 %) unlined (standard) (lbs) | 146827 |
| Max. gross vehicle weight (120 %) unlined (standard) (kg) | 116500 |
| Rear distribution (empty) lined (%) | 48.9 |
| Maximum payload (120 %) unlined (standard) (kg) | 66600 |
| Maximum payload (120 %) lined (kg) | 61700 |
| Empty weight lined (kg) | 54000 |
| Front distribution (empty) unlined (standard) (%) | 54.2 |
| Empty weight unlined (standard) (lbs) | 110011 |
| Rear distribution (empty) unlined (standard) (%) | 45.8 |
| Front distribution (loaded) *nominal unlined (standard) (%) | 33.6 |
| Front distribution (empty) lined (%) | 51.1 |
| Maximum payload (120 %) lined (lbs) | 135992 |
| Max. gross vehicle weight (120 %) lined (lbs) | 255975 |
| Rear brake type | Oil cooled, multiple disc type full hydraulic |
