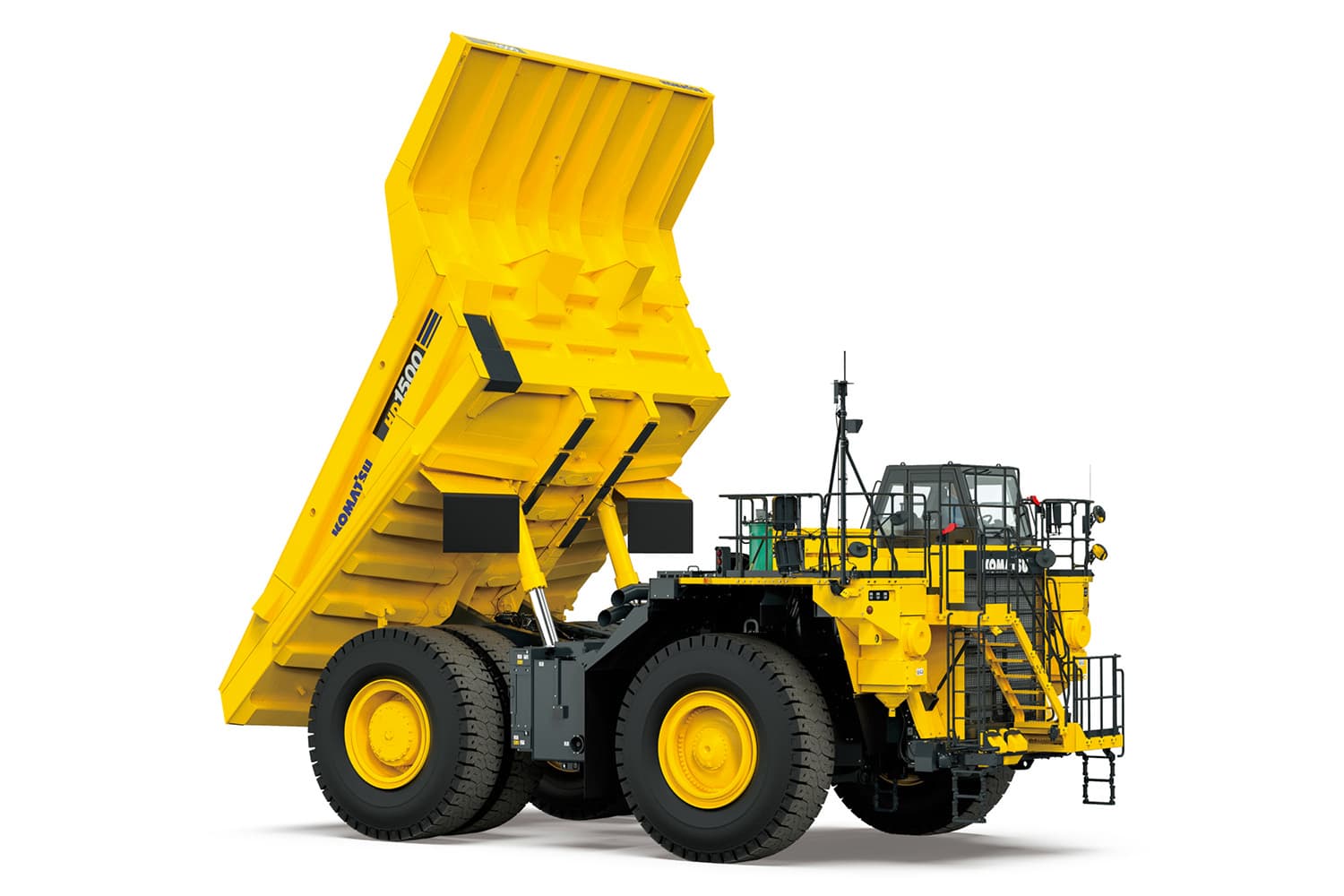

HD1500-8E0
رقم القطعة: KOMATSU-HD1500-8E0
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
HD1500-8E0
المواصفات
| Operating weight (kg) | 294 580 |
|---|---|
| Operating weight (lbs) | 550,229 |
| Engine model | Komatsu SDA16V159E-3 (EPA Tier 4 Final emissions certified) |
| Aspiration | Overhead valve, direct injection type, turbocharged, after-cooled |
| Number of cylinders | 16 |
| Piston displacement (L) | 50.5 |
| Piston displacement (in^3) | 3082 |
| Governor | Electronically controlled |
| SAEJ1995 - Gross (kW) | 1 180 @ 1 900 rpm |
| SAEJ1995 - Gross (HP) | 1,580 @ 1,900 rpm |
| ISO 9249 / SAE J1349 - Net (HP) | 1,570 @ 1900 rpm (1 170 kW @ 1900 rpm) |
| ISO 9249 / SAE J1349 - Gross (kW) | 1170 @ 1900 rpm |
| Fan drive type | Mechanical with electronic controlled fan clutch |
| Filter | Full-flow type |
| Method | Gear pump, force-lubrication |
| Fuel tank (US gal) | 560 |
| Fuel tank (L) | 2 120 |
| Engine oil (L) | 215 |
| Engine oil (US gal) | 56.8 |
| Final drive (US gal) | 56.5 |
| Final drive (L) | 214 |
| Bore (mm) | 159 |
| Bore (in) | 6.26 |
| Stroke (in) | 6.26 |
| Stroke (mm) | 159 |
| Hydraulic system (US gal) | 83.5 |
| Hydraulic system (L) | 316 |
| Radiator (L) | 460 |
| DEF tank (US gal) | 56 |
| Radiator (US gal) | 121.5 |
| DEF tank (L) | 212 |
| Air cleaner | Dry type with double elements, precleaner and evacuator valve |
| Maximum travel speed (kph) | 56.5 |
| Maximum travel speed (mph) | 35.1 |
| Engine type | Water-cooled, 4-cycle |
| Parking brake type | Spring applied, multiple-disc type |
| Transmission | Full-automatic, planetary type |
| Gross vehicle weight (kg) | 249 580 |
| Gross vehicle weight (lbs) | 550229 |
| Gross horsepower (HP) | 1,580 HP @ 1,900 rpm |
| Gross horsepower (kW) | 1 180 @ 1 900 rpm |
| Capacity (mt) | 139.1 |
| Capacity (st) | 153.2 |
| Bottom (in) | 0.75 |
| Bottom (mm) | 19 |
| Front (in) | 0.47 |
| Front (mm) | 12 |
| Sides (in) | 0.35 |
| Sides (mm) | 9 |
| Heaped 2:1 SAE Capacity (yd^3) | 102 |
| Heaped 2:1 SAE Capacity (m^3) | 78 |
| Hoist cylinder type | Twin, 2-stage telescopic type |
| Fuel system | Direct injection |
| Relief pressure (kg/cm^2 / MPa) | 245/24.0 |
| Relief pressure (psi) | 3481 |
| Hoist time | 13.5 |
| Torque converter | 4 elements, 1 stage, 2 phase |
| Speed range | Seven speeds forward and two reverse |
| Lockup clutch | Wet, multiple-disc clutch |
| Forward | Torque converter drive in 1st gear, direct drive in 1st lockup and all higher gears |
| Shift control | Electronic shift control with automatic clutch modulation in all gears |
| Brakes standard | ISO 3450 |
| Reverse | Torque converter drive and direct (lockup) |
| Final drive type | Planetary gear |
| Differential ratio | 1.72 |
| Planetary ratio | 11.482 |
| Steering system type | Fully hydraulic power steering with two double-acting cylinder |
| Secondary steering | Automatic/Manual control (meets ISO 5010 and SAE J1511) |
| Minimum turning radius wall to wall (ft) | 36 ft. 9 in |
| Minimum turning radius wall to wall (m) | 11.2 |
| Empty weight (lbs) | 243,390 |
| Empty weight (kg) | 110 480 (including 80 kg operator) |
| Front axle - loaded (%) | 32.9 |
| Rear axles - loaded (%) | 67.1 |
| Front axle - empty (%) | 52.5 |
| Rear axles - empty (%) | 47.5 |
| Torque converter transmission retarder (L) | 129 |
| Torque converter transmission retarder (US gal) | 34.1 |
| Differentials (L) | 439 |
| Differentials (US gal) | 116 |
| Suspension (US gal) | 50.6 |
| Suspension (L) | 191.6 |
| Articulated type | Box-sectioned structure |
| Standard tire | 33.00 R51 |
| Struck capacity (2 : 1) unlined (standard) (m^3) | 50 |
| Struck capacity (2 : 1) unlined (standard) (yd^3) | 65.4 |
| Rear axle oscillation oil stopper (degree) | 3.9 |
| Rear axle oscillation mechanical stopper (degree) | 5.8 |
| Nominal payload (metric tons) | 139.1 (standard body) |
| Nominal payload (short tons) | 153.2 (standard body) |
| Front brake surface (in^2) | 10530.6 |
| Front brake surface (cm^2) | 67 939 |
| Rear brake surface (in^2) | 15043.6 |
| Rear brake surface (cm^2) | 97 055 |
| Retarder | Oil-cooled, multiple-disc front and rear brakes act as retarder |
| Rear service brakes | Fully hydraulic control, oil-cooled multiple-disc type |
| Service parking brakes | Spring applied, multiple-disc type |
| Service retarder brakes | Oil-cooled, multiple-disc front and rear brakes act as retarder |
| Secondary service brakes | Manual pedal operation when hydraulic pressure drops below the rated level, parking brake is automatically actuated |
| Maximum steering angle (degrees) | 43 |
| Rear axle | Full-floating |
| Front suspension (mm) | 375 |
| Front suspension (ft X in) | 14.76 |
| Rear suspension (mm) | 106 |
| Rear suspension (in) | 4.17 |
| McPherson strut type | Front suspension and four-link type rear axle suspension with independent, hydropneumatic cylinders. |
| Front brake type | Fully hydraulic control, oil-cooled multiple-disc type |
| FOPS and ROPS standard | FOPS (ISO 3449 level II), ROPS (ISO 3471) |
| Height at full dump (ft.) | 37 ft. 11 in |
