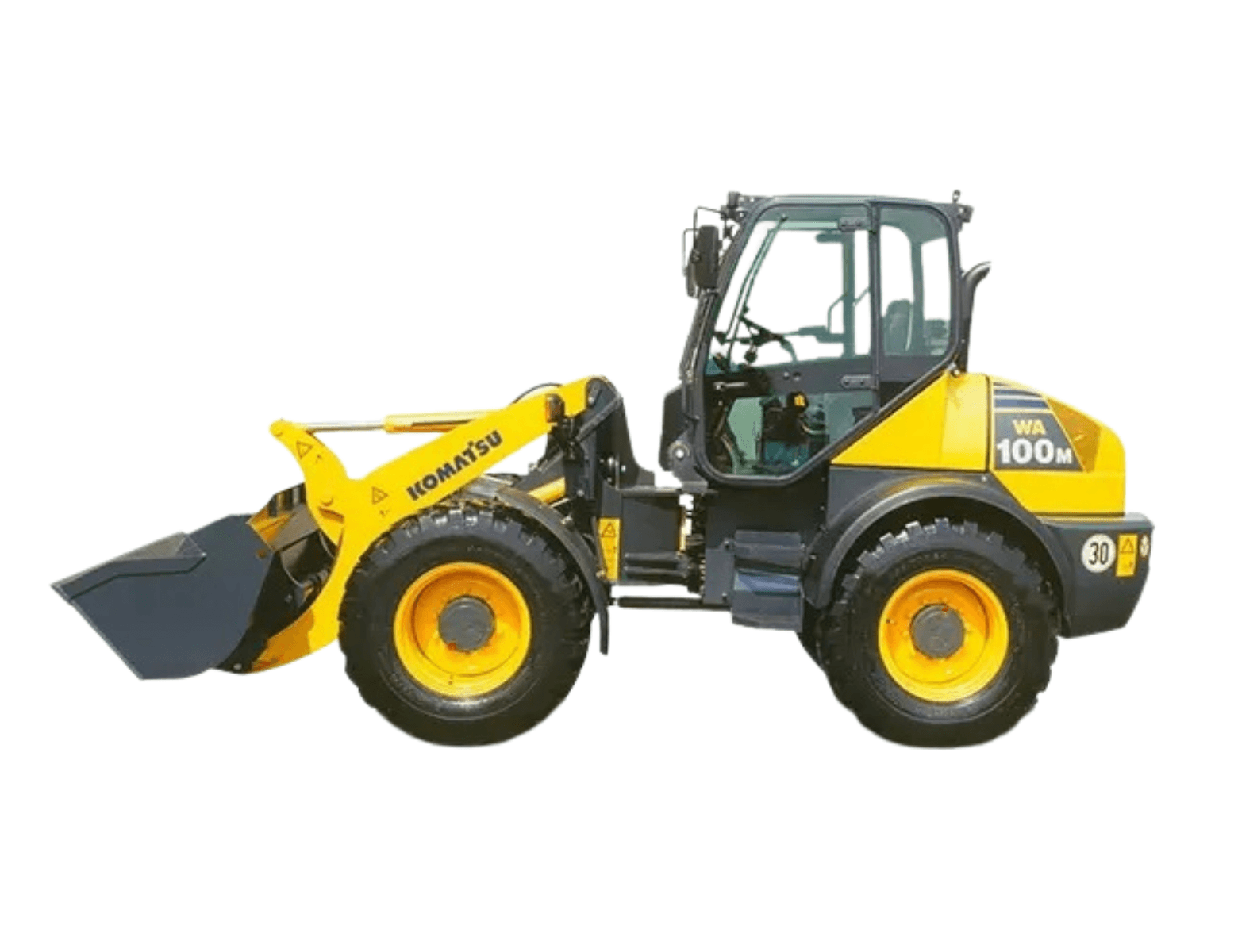

WA100M-8E0
رقم القطعة: KOMATSU-WA100M-8E0
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WA100M-8E0
المواصفات
| Operating weight (kg) | 7065 |
|---|---|
| Operating weight (lbs) | 15578 |
| Engine model | Komatsu SAA4D94LE-3 |
| Bore x stroke (in) | 2.36 x 14.53 |
| Bore x stroke (mm) | 60 × 369 |
| Rated rpm | 2000 |
| Fuel tank (US gal) | 29.06 |
| Fuel tank (L) | 110 |
| Parking brake | Integrated wet multi-disc type brake |
| Engine (L) | 10.5 |
| Engine (US gal) | 2.77 |
| Hydraulic system (US gal) | 13.21 |
| Hydraulic system (L) | 50 |
| Bucket capacity (m³) | 1.3 |
| Bucket capacity (yd³) | 1.7 |
| Engine power (HP) | 94 |
| Engine power (kW) | 69.8 |
| Cooling system (L) | 22.3 |
| Tires | 455/70 R20 (standard) |
| Steering angle | 42° |
| Steering system type | Hydraulic, double-action, articulated frame steering |
| Drive system | Hydrostatic |
| Type of hydrostatic | 1 variable piston motor, 1 variable piston pump |
| Bore x stroke of engine (mm) | 94 x 110 |
| Bore x stroke of engine (in) | 3.70 x 4.33 |
| Bucket cylinder - 1 (mm) | 100 × 476 |
| Bucket cylinder - 1 (in) | 3.94 × 18.74 |
| Axle front (US gal) | 2.4 |
| Axle front (L) | 9.1 |
| Axle rear (US gal) | 2.4 |
| Axle rear (L) | 9.1 |
| Transfer case (US gal) | 0.34 (at 20/km/h) / 0.43 (at 40 km/h) |
| Transfer case (L) | 1.3 (at 20 km/h) / 1.6 (at 40 km/h) |
| Option (ltr/min) | 120 |
| Cooling system (US gal) | 5.89 |
| Boom cylinder (mm) | 80 × 714 mm |
| Working pressure, max (bar) | 270 |
| Hydraulic control lever | Multifunction lever |
| Number of boom/bucket cylinders | 2/1 |
| Operating brakes | Combined inch brake pedal actuates maintenance free, wet multi-disc type brakes in the front axle Self-braking via the hydrostatic drive |
| Working pressure (bar) | 175 |
| Number of steering cylinders | 2 |
| Chassis axles type | Planetary rigid axles with automatic limited slip differentials in both axles 100% locking differentials as option |
