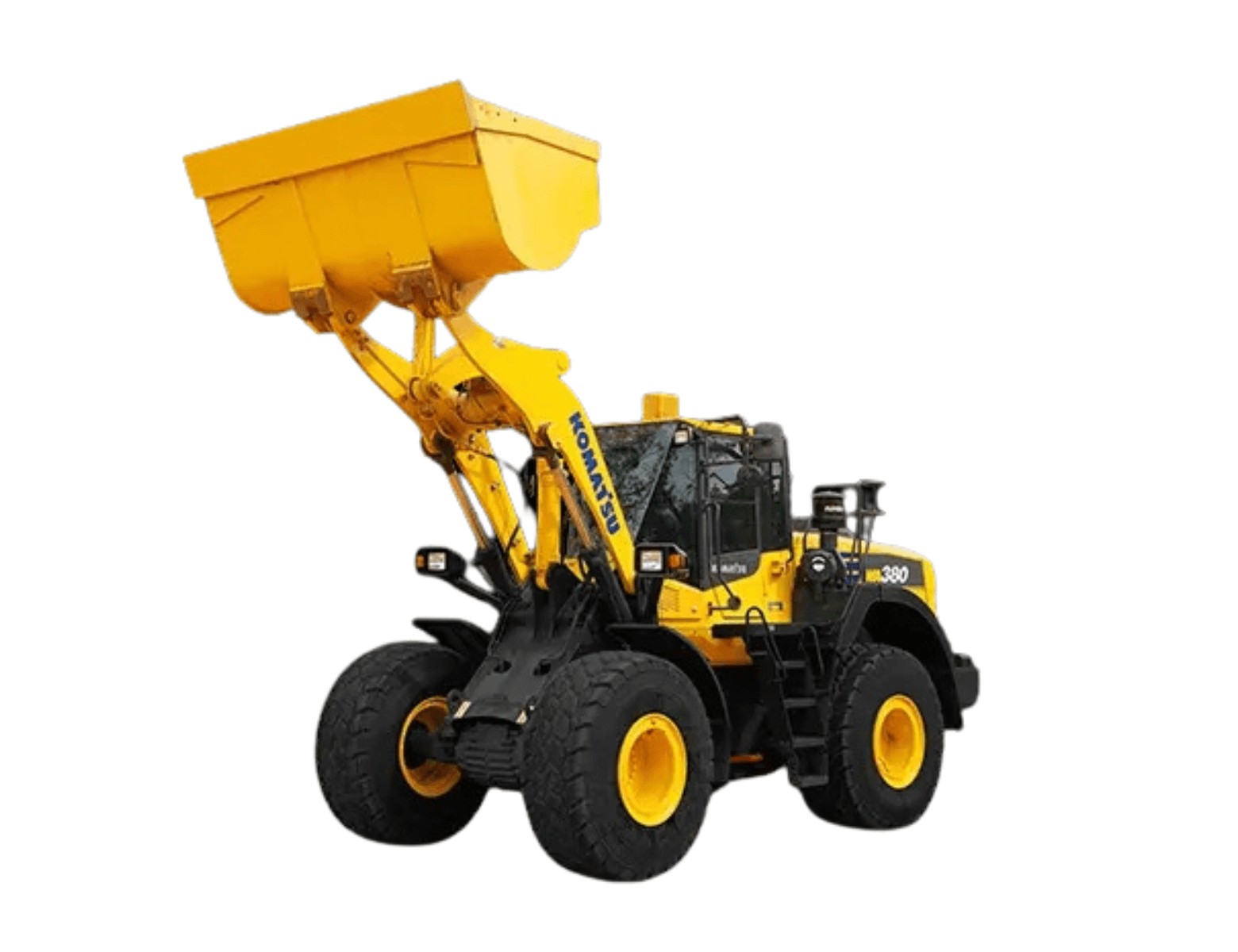

WA380-8 Non-Tier 4
رقم القطعة: KOMATSU-WA380-8-NON-TIER-4
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WA380-8 Non-Tier 4
المواصفات
| Operating weight (kg) | 18670 |
|---|---|
| Operating weight (lbs) | 41168 |
| Engine model | Komatsu SAA6D107E-3 |
| Aspiration | Turbo-charged, after-cooled, cooled EGR |
| Bore x stroke (in) | 2.95 x 17.40 |
| Bore x stroke (mm) | 75 x 442 |
| SAEJ1995 - Gross (kW) | 143 |
| SAEJ1995 - Gross (HP) | 192 |
| ISO 9249 / SAE J1349 - Net (HP) | 191 |
| Rated rpm | 2100 |
| Fuel tank (L) | 300 |
| Parking brake | Wet disc brake |
| Fan drive method for radiator cooling | Hydraulic |
| ISO 9249 / SAE J1349 - Net (kW) | 143 |
| Engine (L) | 23 |
| Engine (US gal) | 6.07 |
| Hydraulic system (US gal) | 37.52 |
| Hydraulic system (L) | 142 |
| Bucket capacity (m³) | 3.6 |
| Bucket capacity (yd³) | 4.7 |
| Engine power (HP) | 191 |
| Engine power (kW) | 143 |
| Fuel (US gal) | 79.25 |
| Cooling system (L) | 60.6 |
| Transmission | Automatic, full-powershift, countershaft type |
| Steering angle | 35° each direction (40° to max end stop) |
| Torque converter | Three-elements, one-stage, two-phase |
| Steering system type | Articulated type, fully hydraulic power steering |
| Drive system | Four-wheel drive |
| Bore x stroke of engine (mm) | 107 x 124 |
| Bore x stroke of engine (in) | 4.21 x 4.88 |
| Hydraulic pump | Piston pump |
| Capacity (at rated rpm) (US gpm) | 36.2 |
| Capacity (at rated rpm) (L/min) | 137 |
| Number of cylinders in hydraulic cylinders | 2 |
| Axle front (US gal) | 10.57 |
| Axle front (L) | 40 |
| Axle rear (US gal) | 10.6 |
| Axle rear (L) | 40 |
| Secondary brake | Parking brake is commonly used |
| Front Axle | Fixed, semi-floating |
| Axle Rear | Centre-pin support, semi-floating, 26° total oscillation |
| Final reduction gear | Planetary gear, single reduction |
| Differential gear | Conventional type |
| Reduction gear | Spiral bevel gear |
| Torque converter and transmission (US gal) | 14.3 |
| Torque converter and transmission (L) | 54 |
| Breakout force standard (kN) | 158 |
| Cooling system (US gal) | 16.01 |
| Static tipping load, straight (kg) | 15440 |
| Bucket capacity SAE (m³) | 2.7 - 3.6 |
| Bucket capacity SAE (yd³) | 3.5 – 4.7 |
| Static tipping load, straight (lbs) | 34044.4 |
| Dump clearance at 45° dump angle (mm) | 2950 |
| Dump clearance at 45° dump angle (in) | 116.1 |
| Standard bucket capacity SAE (yd³) | 4.7 |
| Standard bucket capacity SAE (m³) | 3.6 |
| Bucket width (in) | 114.4 |
| Bucket description | Loose material bucket |
| Dump reach at 45° dump angle (in) | 45.3 |
| Bucket width (mm) | 2905 |
| Dump reach at 45° dump angle (mm) | 1150 |
| Static tipping load, full turn (lbs) | 29626.8 |
| Static tipping load, full turn (kg) | 13440 |
