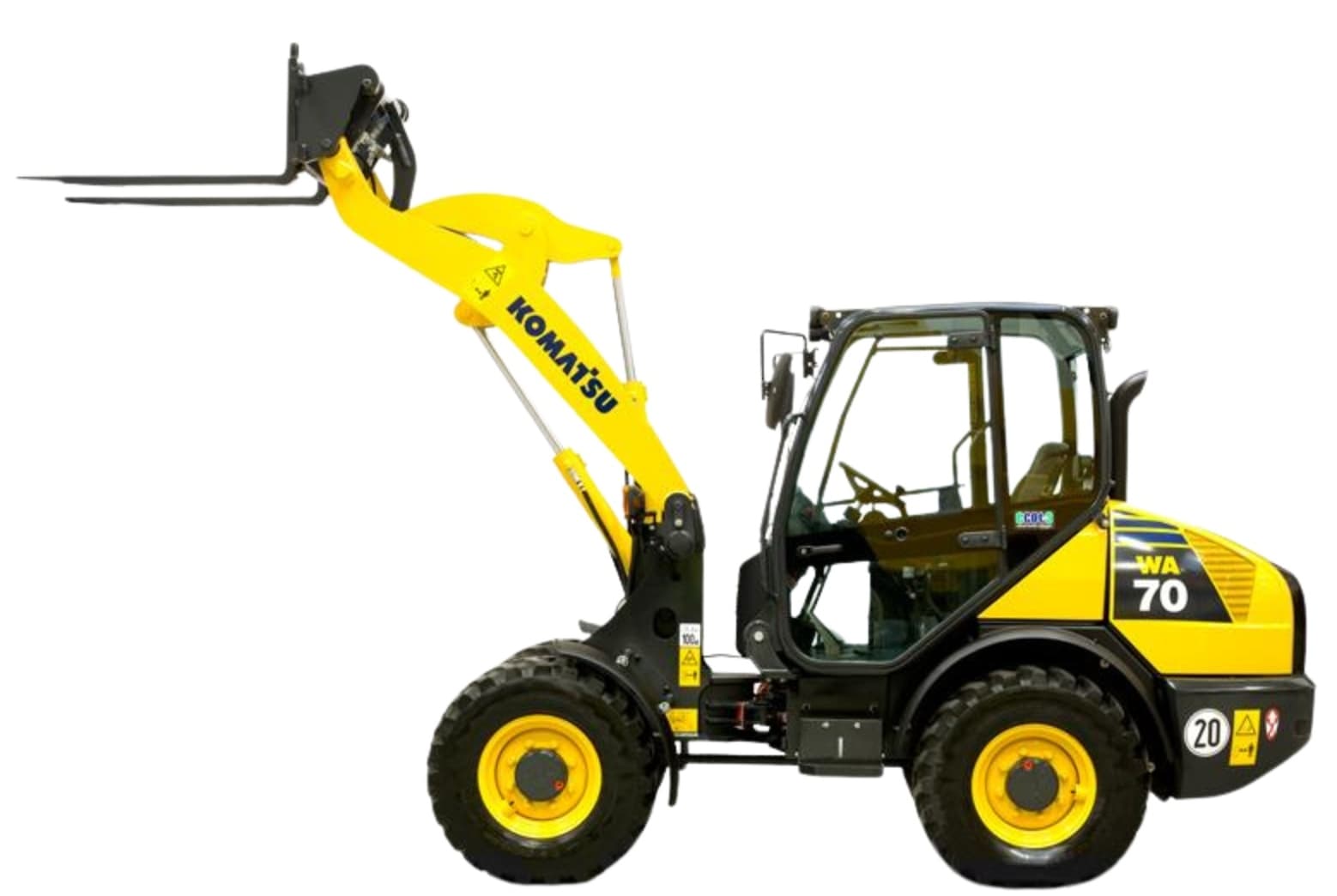

WA70M-8E0
رقم القطعة: KOMATSU-WA70M-8E0
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WA70M-8E0
المواصفات
| Operating weight (kg) | 5300 |
|---|---|
| Operating weight (lbs) | 11685 |
| Engine model | Komatsu 4D98E-6SHA |
| Bore x stroke (in) | 2.76 x 14.29 |
| Bore x stroke (mm) | 70 x 363 |
| Rated rpm | 1430 |
| 1st forward (kph) | 0-7.6 |
| 1st forward (mph) | 0-4.7 |
| 1st reverse (mph) | 0-4.7 |
| 1st reverse (kph) | 0-7.6 |
| 2nd forward (kph) | 0-20 |
| Fuel tank (L) | 132 |
| Parking brake | Dry disc |
| Engine (L) | 7.5 |
| Engine (US gal) | 1.98 |
| Hydraulic system (US gal) | 13.21 |
| Hydraulic system (L) | 50 |
| Bucket capacity (m³) | 1.0 |
| Bucket capacity (yd³) | 1.3 |
| Engine power (HP) | 62 |
| Engine power (kW) | 46.2 |
| Fuel (US gal) | 34.87 |
| Cooling system (L) | 9.1 |
| Steering angle | 40° each direction |
| Steering system type | Articulated type, fully hydraulic power steering |
| Drive system | Four-wheel drive |
| Bore x stroke of engine (mm) | 98 x 110 |
| Bore x stroke of engine (in) | 3.86 x 4.33 |
| Hydraulic pump | Piston pump, in common with loader control |
| Capacity (at rated rpm) (US gpm) | 14 |
| Capacity (at rated rpm) (L/min) | 53 |
| Number of cylinders in hydraulic cylinders | 1 |
| Axle front (US gal) | 2.22 |
| Axle front (L) | 8.4 |
| Axle rear (US gal) | 2.2 |
| Axle rear (L) | 8.4 |
| Transfer case (US gal) | 0.34 |
| Transfer case (L) | 1.3 |
| Breakout force standard (kN) | 35 |
| Cooling system (US gal) | 2.4 |
| Static tipping load, straight (kg) | 4170 |
| Bucket capacity SAE (m³) | 0.85 - 1.25 |
| Travel speed | Forward & Reverse |
| Bucket capacity SAE (yd³) | 1.1 – 1.6 |
| Static tipping load, straight (lbs) | 9192.4 |
| Dump clearance at 45° dump angle (mm) | 2335 |
| Operating brakes | Combined inch brake pedal actuates maintenance free wet-disc type brakes in the front axle. Self-braking via the hydrostatic drive. |
| Dump clearance at 45° dump angle (in) | 91.9 |
| Standard bucket capacity SAE (yd³) | 1.3 |
| Standard bucket capacity SAE (m³) | 1 |
| Bucket width (in) | 73.6 |
| Bucket description | Light material bucket |
| Dump reach at 45° dump angle (in) | 37.8 |
| Bucket width (mm) | 1870 |
| Dump reach at 45° dump angle (mm) | 960 |
| Static tipping load, full turn (lbs) | 7982.4 |
| Static tipping load, full turn (kg) | 3620 |
| Axles type | Planetary rigid axles with automatic limited slip differentials in both axles |
