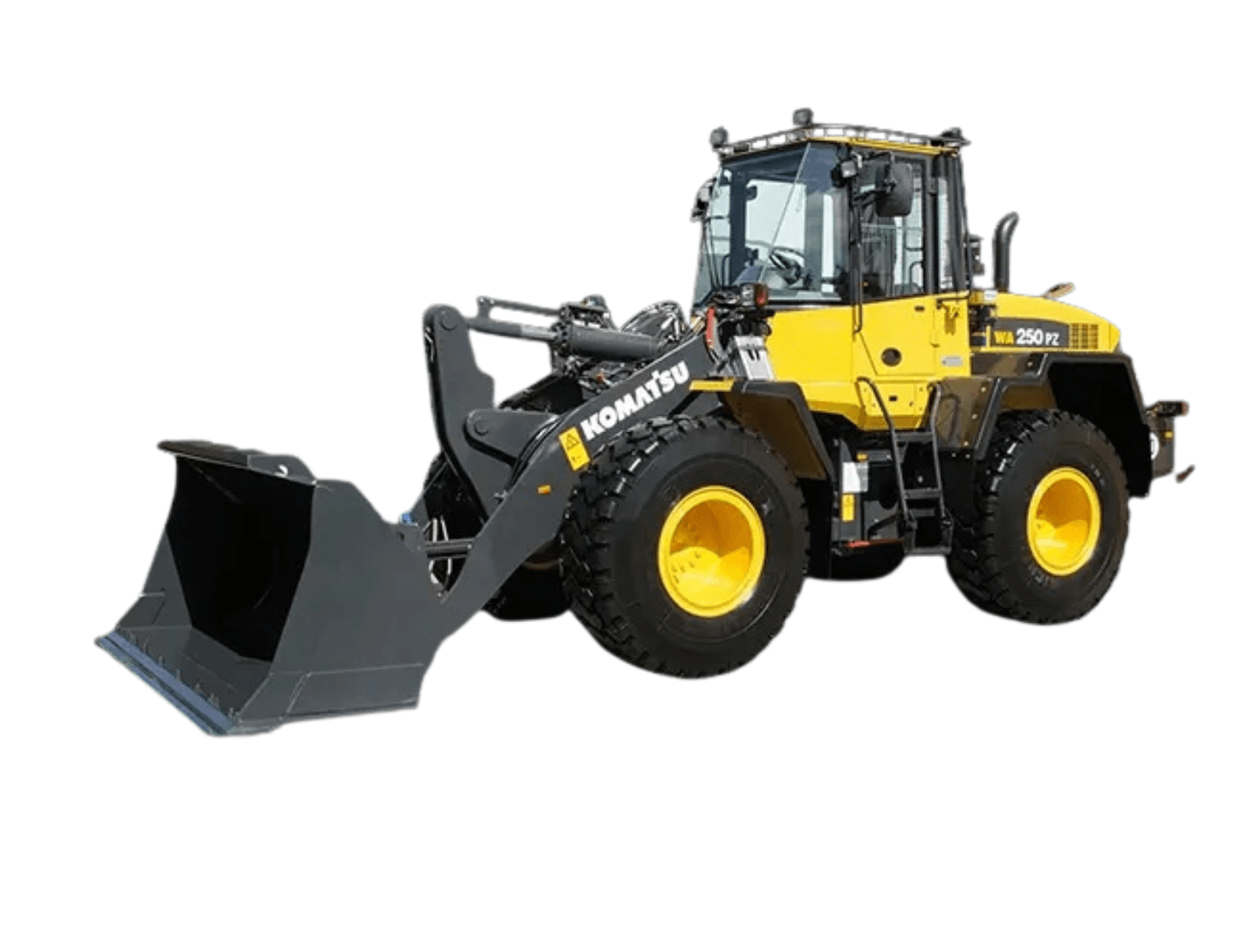

WA250PZ-6
رقم القطعة: KOMATSU-WA250PZ-6
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WA250PZ-6
المواصفات
| Operating weight (kg) | 11950 |
|---|---|
| Operating weight (lbs) | 26360 |
| Engine model | Komatsu SAA6D107E-1 |
| Aspiration | Turbo-charged, after-cooled |
| Bore x stroke (in) | 2.76 x 17.83 |
| Bore x stroke (mm) | 70 x 453 |
| SAEJ1995 - Gross (kW) | 104 |
| SAEJ1995 - Gross (HP) | 140 |
| ISO 9249 / SAE J1349 - Net (HP) | 138 |
| Rated rpm | 2000 |
| 1st forward (kph) | 4.0-13.0 |
| 1st forward (mph) | 2.5-8.1 |
| 1st reverse (mph) | 2.5-8.1 |
| 1st reverse (kph) | 4.0-13.0 |
| 2nd forward (kph) | 13 |
| 2nd forward (mph) | 8.1 |
| 2nd reverse (mph) | 8.1 |
| 2nd reverse (kph) | 13 |
| 3rd forward (mph) | 11.2 |
| 3rd forward (kph) | 18 |
| 3rd reverse (mph) | 12.4 |
| 3rd reverse (kph) | 20 |
| Fuel tank (US gal) | 49.15 |
| Fuel tank (L) | 186 |
| Parking brake | Wet, multi-disc brake on transfer output shaft |
| Fan drive method for radiator cooling | Hydraulic |
| ISO 9249 / SAE J1349 - Net (kW) | 103 |
| Engine (L) | 23 |
| Engine (US gal) | 6.07 |
| Hydraulic system (US gal) | 17.7 |
| Hydraulic system (L) | 67 |
| Bucket capacity (m³) | 2.3 |
| Bucket capacity (yd³) | 3.0 |
| Engine power (HP) | 138 |
| Engine power (kW) | 103 |
| Cooling system (L) | 22 |
| Steering angle | 38° each direction (40° to max end stop) |
| Steering system type | Articulated type, fully hydraulic power steering |
| Drive system | Four-wheel drive |
| Transmission footnote | Measured with 20.5-25 tyres |
| 4th, forward (kph) | 38 |
| 4th, forward (mph) | 23.6 |
| 4th, reverse (kph) | 34.5 |
| 4th, reverse (mph) | 21.4 |
| Bore x stroke of engine (mm) | 107 x 124 |
| Bore x stroke of engine (in) | 4.21 x 4.88 |
| Hydraulic pump | Gear type pump |
| Capacity (at rated rpm) (US gpm) | 29.1 |
| Capacity (at rated rpm) (L/min) | 110 |
| Number of cylinders in hydraulic cylinders | 2 |
| Axle front (US gal) | 4.76 |
| Axle front (L) | 18 |
| Axle rear (US gal) | 4.8 |
| Axle rear (L) | 18 |
| Transfer case (US gal) | 1.32 |
| Transfer case (L) | 5 |
| Secondary brake | Parking brake is commonly used |
| Front Axle | Fixed, semi-floating |
| Axle Rear | Centre-pin support, semi-floating, 24° total oscillation |
| Final reduction gear | Planetary gear, single reduction |
| Differential gear | Torque proportioning |
| Reduction gear | Spiral bevel gear |
| Breakout force standard (kN) | 131 |
| Cooling system (US gal) | 5.81 |
| Static tipping load, straight (kg) | 9340 |
| Travel speed | Forward & Reverse |
| Static tipping load, straight (lbs) | 20588.1 |
| Dump clearance at 45° dump angle (mm) | 2945 |
| Dump clearance at 45° dump angle (in) | 116 |
| Standard bucket capacity SAE (yd³) | 3 |
| Standard bucket capacity SAE (m³) | 2.3 |
| Bucket width (in) | 100.4 |
| Bucket description | Stockpile bucket, pin on |
| Dump reach at 45° dump angle (in) | 37.2 |
| Bucket width (mm) | 2550 |
| Dump reach at 45° dump angle (mm) | 945 |
| Static tipping load, full turn (lbs) | 18013.9 |
| Static tipping load, full turn (kg) | 8170 |
