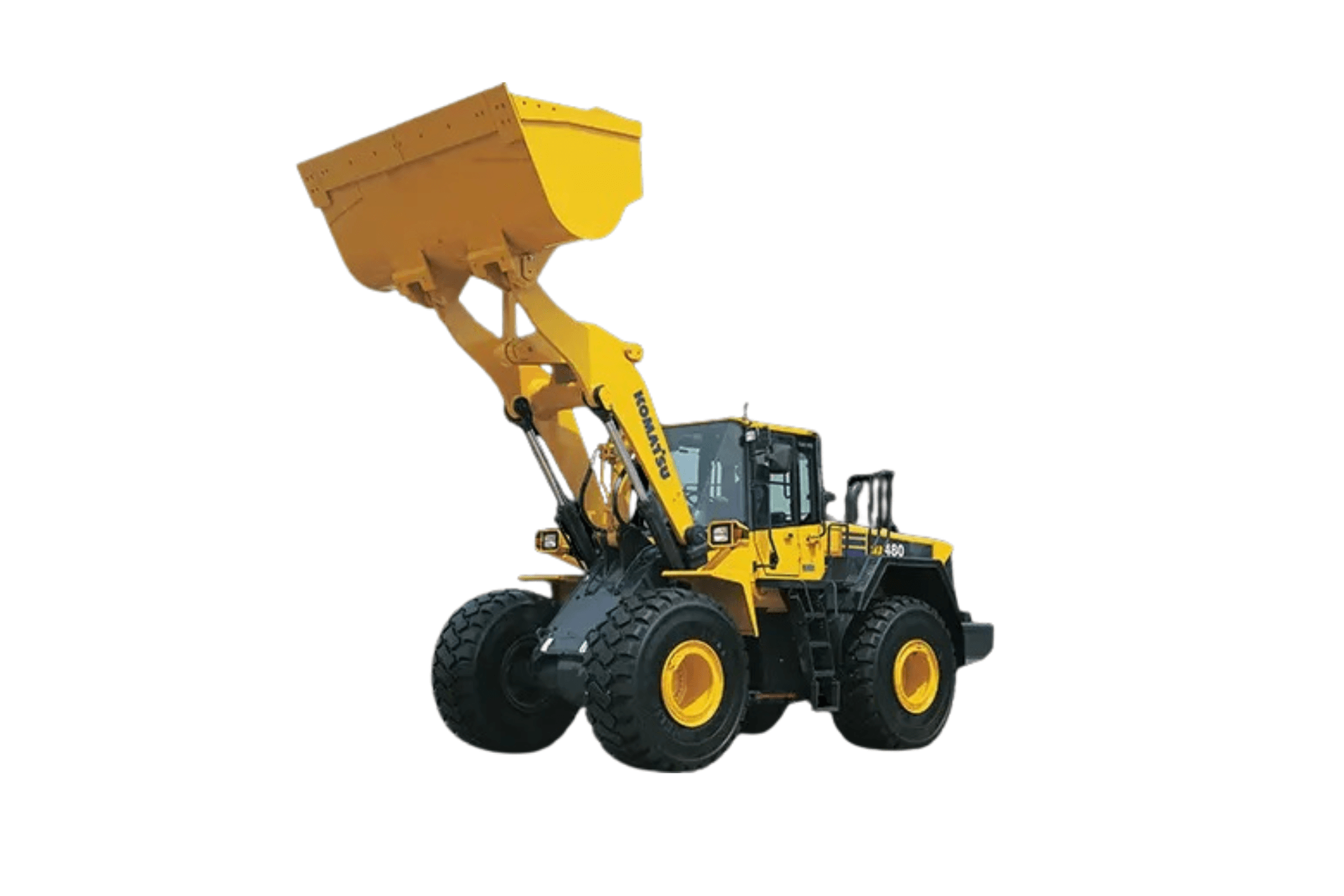

WA480-6
رقم القطعة: KOMATSU-WA480-6
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WA480-6
المواصفات
| Operating weight (kg) | 25780 |
|---|---|
| Operating weight (lbs) | 56864 |
| Engine model | Komatsu SAA6D125E-5 |
| Aspiration | Turbo-charged, after-cooled, cooled EGR |
| Bore x stroke (in) | 3.54 x 17.36 |
| Bore x stroke (mm) | 90 x 441 |
| SAEJ1995 - Gross (kW) | 224 |
| SAEJ1995 - Gross (HP) | 300 |
| ISO 9249 / SAE J1349 - Net (HP) | 299 |
| Rated rpm | 2000 |
| Fuel tank (US gal) | 109.07 |
| Fuel tank (L) | 413 |
| Parking brake | Wet disc brake |
| Fan drive method for radiator cooling | Hydraulic |
| ISO 9249 / SAE J1349 - Net (kW) | 223 |
| Engine (L) | 38 |
| Engine (US gal) | 10.04 |
| Hydraulic system (US gal) | 45.71 |
| Hydraulic system (L) | 173 |
| Bucket capacity (m³) | 5.0 |
| Bucket capacity (yd³) | 6.5 |
| Engine power (HP) | 299 |
| Engine power (kW) | 223 |
| Cooling system (L) | 61 |
| Transmission | Automatic, full-powershift, countershaft type |
| Steering angle | 35° each direction (40° to max end stop) |
| Torque converter | Three-elements, single-stage, single-phase |
| Steering system type | Articulated type, fully hydraulic power steering |
| Drive system | Four-wheel drive |
| Bore x stroke of engine (mm) | 125 x 150 |
| Bore x stroke of engine (in) | 4.92 x 5.91 |
| Hydraulic pump | Piston pump |
| Capacity (at rated rpm) (US gpm) | 51.5 |
| Capacity (at rated rpm) (L/min) | 195 |
| Number of cylinders in hydraulic cylinders | 2 |
| Axle front (US gal) | 15.59 |
| Axle front (L) | 59 |
| Axle rear (US gal) | 15.6 |
| Axle rear (L) | 59 |
| Secondary brake | Parking brake is commonly used |
| Front Axle | Fixed, semi-floating |
| Axle Rear | Centre-pin support, semi-floating, 26° total oscillation |
| Final reduction gear | Planetary gear, single reduction |
| Differential gear | Conventional type |
| Reduction gear | Spiral bevel gear |
| Torque converter and transmission (US gal) | 17.2 |
| Torque converter and transmission (L) | 65 |
| Breakout force standard (kN) | 212 |
| Cooling system (US gal) | 16.11 |
| Static tipping load, straight (kg) | 21010 |
| Bucket capacity SAE (m³) | 3.8 - 6.1 |
| Bucket capacity SAE (yd³) | 5.0 – 8.0 |
| Static tipping load, straight (lbs) | 46310.7 |
| Dump clearance at 45° dump angle (mm) | 3205 |
| Dump clearance at 45° dump angle (in) | 126.2 |
| Standard bucket capacity SAE (yd³) | 6.5 |
| Standard bucket capacity SAE (m³) | 5 |
| Bucket width (in) | 124.8 |
| Bucket description | General purpose bucket |
| Dump reach at 45° dump angle (in) | 55.5 |
| Bucket width (mm) | 3170 |
| Dump reach at 45° dump angle (mm) | 1410 |
| Static tipping load, full turn (lbs) | 39633.6 |
| Static tipping load, full turn (kg) | 17975 |
