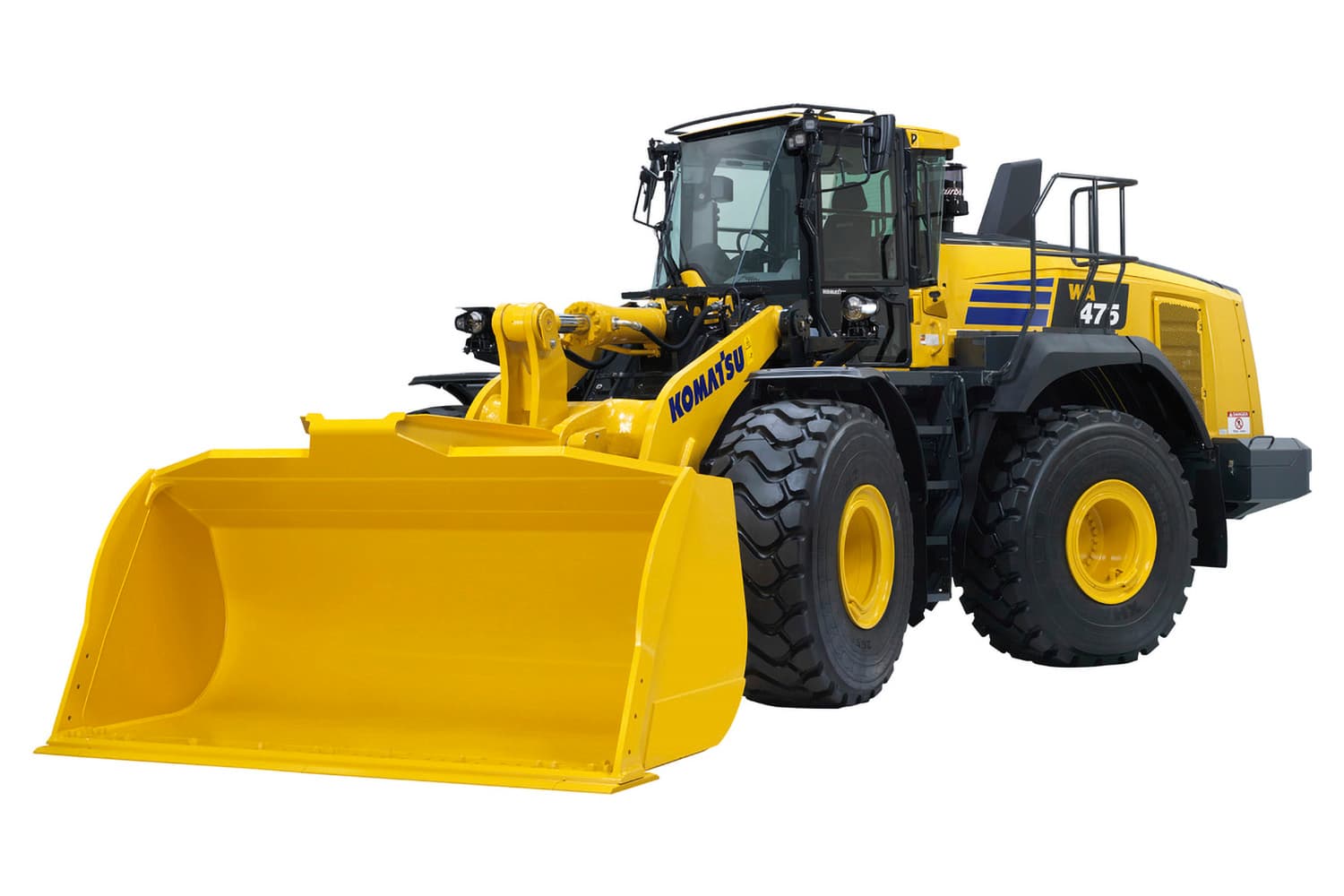

WA475-10
رقم القطعة: KOMATSU-WA475-10
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WA475-10
المواصفات
| Operating weight (kg) | 25830 |
|---|---|
| Operating weight (lbs) | 56958 |
| Engine model | Komatsu SAA6D125E-7* |
| Aspiration | Turbo-charged, after-cooled, cooled EGR |
| Bore x stroke (in) | 3.54 x 17.36 |
| Bore x stroke (mm) | 90 x 441 |
| Piston displacement (L) | 11.04 |
| Governor | All-speed, electronic |
| SAEJ1995 - Gross (kW) | 217 |
| SAEJ1995 - Gross (HP) | 291 |
| ISO 9249 / SAE J1349 - Net (HP) | 290 |
| Rated rpm | 1600 |
| Filter | Full-flow type |
| Method | Gear pump, force-lubrication |
| Fuel tank (US gal) | 100.38 |
| Fuel tank (L) | 380 |
| Parking brake | Wet disc brake |
| Fan drive method for radiator cooling | Hydraulic |
| ISO 9249 / SAE J1349 - Net (kW) | 216 |
| Engine (L) | 38 |
| Engine (US gal) | 10.04 |
| Hydraulic system (US gal) | 35.66 |
| Hydraulic system (L) | 135 |
| Bucket capacity (m³) | 5.2 |
| Bucket capacity (yd³) | 6.8 |
| Engine power (HP) | 290 |
| Engine power (kW) | 216 |
| Piston displacement (in³) | 673.69 |
| DEF tank (US gal) | 9.51 |
| DEF tank (L) | 36 |
| Air cleaner | Dry type with double elements and dust evacuator, plus dust indicator |
| Cooling system (L) | 65 |
| Transmission | Hydraulic Mechanical planetary type |
| Steering angle | 35° each direction (40° to max end stop) |
| Fuel system | Direct injection |
| Steering system type | Articulated type, fully hydraulic power steering |
| Drive system | Four-wheel drive |
| Bore x stroke of engine (mm) | 125 x 150 |
| Bore x stroke of engine (in) | 4.92 x 5.91 |
| Hydraulic pump | Piston pump |
| Capacity (at rated rpm) (US gpm) | 41.7 |
| Capacity (at rated rpm) (L/min) | 157.7 |
| Number of cylinders in hydraulic cylinders | 2 |
| Axle front (US gal) | 15.59 |
| Axle front (L) | 59 |
| Axle rear (US gal) | 15.6 |
| Axle rear (L) | 59 |
| Secondary brake | Parking brake is commonly used |
| Front Axle | Fixed, semi-floating |
| Axle Rear | Centre-pin support, semi-floating, 26° total oscillation |
| Final reduction gear | Planetary gear, single reduction |
| Differential gear | Conventional type |
| Reduction gear | Spiral bevel gear |
| Forward (mph) | 1.9 - 23.6 |
| Forward (kph) | 3.0 - 38.0 |
| Reverse (kph) | 3.06-28 |
| Reverse (mph) | 1.9-17.4 |
| Torque converter and transmission (US gal) | 17.2 |
| Torque converter and transmission (L) | 65 |
| Cooling system (US gal) | 17.17 |
