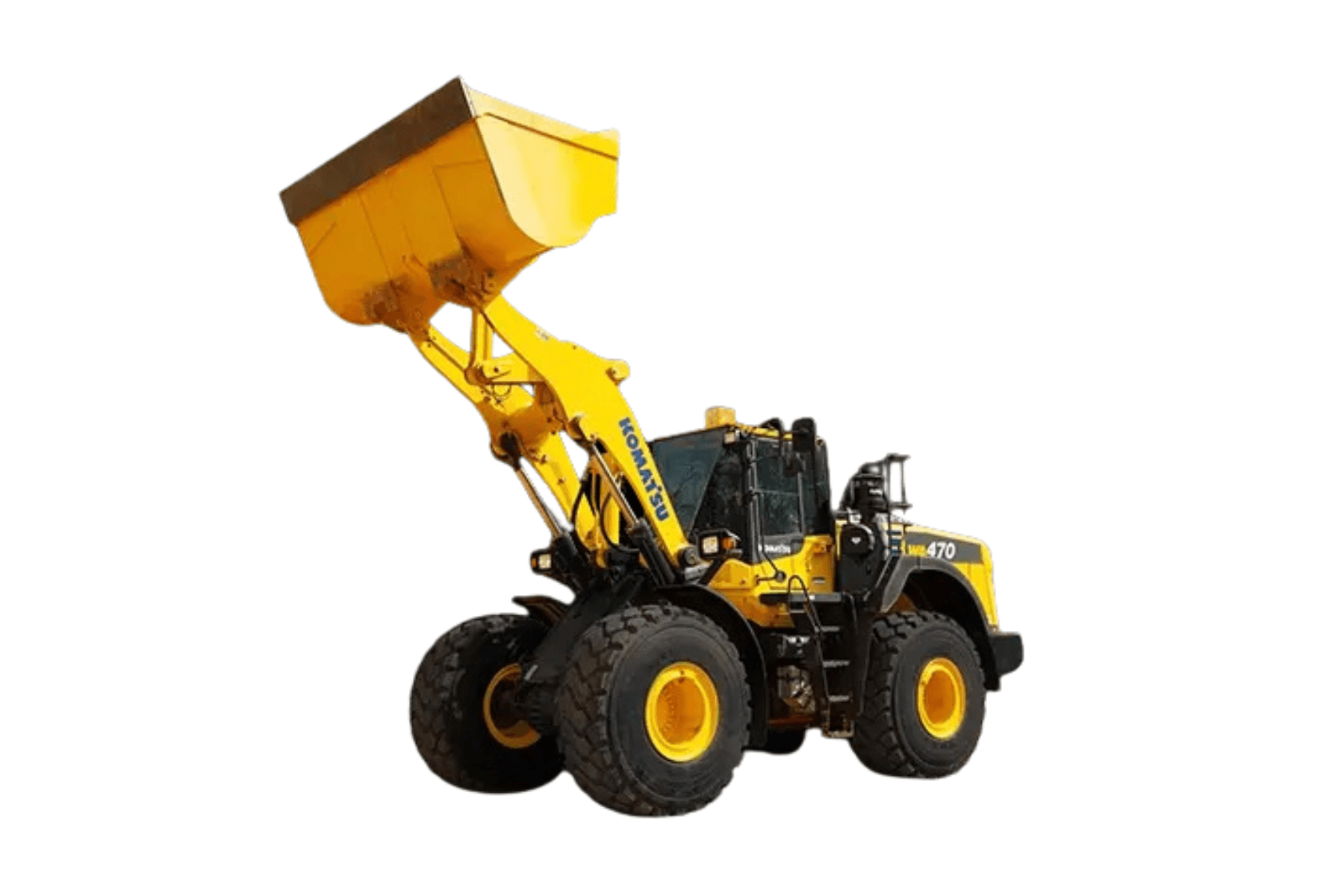

WA470-8
رقم القطعة: KOMATSU-WA470-8
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WA470-8
المواصفات
| Operating weight (kg) | 24670 |
|---|---|
| Operating weight (lbs) | 54376 |
| Engine model | Komatsu SAA6D125E-7 |
| Aspiration | Turbo-charged, after-cooled, cooled EGR |
| Bore x stroke (in) | 3.54 x 17.36 |
| Bore x stroke (mm) | 90 x 441 |
| SAEJ1995 - Gross (kW) | 204 |
| SAEJ1995 - Gross (HP) | 273 |
| ISO 9249 / SAE J1349 - Net (HP) | 272 |
| Rated rpm | 2000 |
| Fuel tank (US gal) | 100.38 |
| Fuel tank (L) | 380 |
| Parking brake | Wet disc brake |
| Fan drive method for radiator cooling | Hydraulic |
| ISO 9249 / SAE J1349 - Net (kW) | 203 |
| Engine (L) | 38 |
| Engine (US gal) | 10.04 |
| Hydraulic system (US gal) | 45.71 |
| Hydraulic system (L) | 173 |
| Bucket capacity (m³) | 4.7 |
| Bucket capacity (yd³) | 6.1 |
| Engine power (HP) | 272 |
| Engine power (kW) | 203 |
| DEF tank (US gal) | 9.51 |
| DEF tank (L) | 36 |
| Cooling system (L) | 78 |
| Transmission | Automatic, full-powershift, countershaft type |
| Steering angle | 35° each direction (40° to max end stop) |
| Torque converter | Three-elements, one-stage, two-phase |
| Steering system type | Articulated type, fully hydraulic power steering |
| Drive system | Four-wheel drive |
| Bore x stroke of engine (mm) | 125 x 150 |
| Bore x stroke of engine (in) | 4.92 x 5.91 |
| Hydraulic pump | Piston pump |
| Capacity (at rated rpm) (US gpm) | 51.5 |
| Capacity (at rated rpm) (L/min) | 195 |
| Number of cylinders in hydraulic cylinders | 2 |
| Axle front (US gal) | 15.06 |
| Axle front (L) | 57 |
| Axle rear (US gal) | 14.8 |
| Axle rear (L) | 56 |
| Secondary brake | Parking brake is commonly used |
| Front Axle | Fixed, semi-floating |
| Axle Rear | Centre-pin support, semi-floating, 26° total oscillation |
| Final reduction gear | Planetary gear, single reduction |
| Differential gear | Conventional type |
| Reduction gear | Spiral bevel gear |
| Torque converter and transmission (US gal) | 17.2 |
| Torque converter and transmission (L) | 65 |
| Breakout force standard (kN) | 168 |
| Cooling system (US gal) | 20.61 |
| Static tipping load, straight (kg) | 20090 |
| Bucket capacity SAE (m³) | 3.8 - 4.65 |
| Bucket capacity SAE (yd³) | 5.0 – 6.1 |
| Static tipping load, straight (lbs) | 44292.2 |
| Dump clearance at 45° dump angle (mm) | 3055 |
| Dump clearance at 45° dump angle (in) | 120.3 |
| Standard bucket capacity SAE (yd³) | 6.1 |
| Standard bucket capacity SAE (m³) | 4.65 |
| Bucket width (in) | 124.8 |
| Bucket description | Loose material bucket |
| Dump reach at 45° dump angle (in) | 53.7 |
| Bucket width (mm) | 3170 |
| Dump reach at 45° dump angle (mm) | 1365 |
| Static tipping load, full turn (lbs) | 38103 |
| Static tipping load, full turn (kg) | 17280 |
