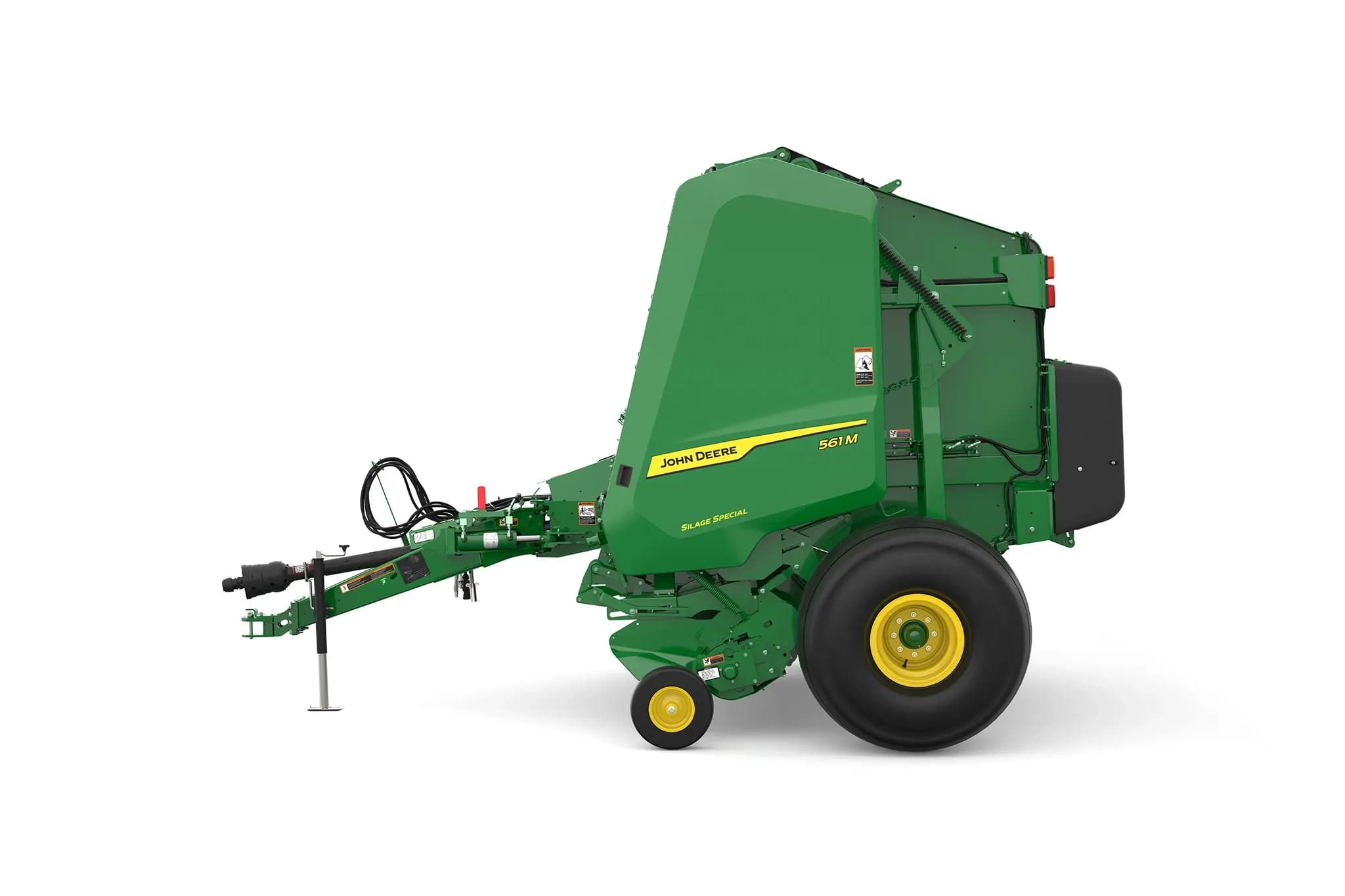

561M Round Baler

John Deere

561M Round Baler

رقم القطعة: JOHNDEERE-23G5E

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

561M Round Baler

المواصفات

Model561M
Base Code23G5E
Divisionhay-and-forage-equipment
Product Familybalers
KEY SPECS / Belts - other - width7 in. (17.8 cm)
KEY SPECS / Density controlHydraulic
KEY SPECS / Bale size indicationElectronic display on monitor
BALE / SIZE- Diameter5 x 6 ft 1.5 x 1.8 m
BALE / SIZE- Width62 in. (157 cm)
BALER / WEIGHTShipping dry - 4,310 lb 1,955 kg Shipping silage - 6,812 lb 3,089 kg
MONITOR / Monitor console for tractorIntegrated Display
DRIVELINE / Drive protectionFriction clutch or Cut out clutch
BALER / -Gate closed146 in. (371 cm)
BALER / -Gate open187 in. (475 cm)
BALER / HEIGHT- Gate closed110 in. (279 cm)
BALER / HEIGHT- Gate open145 in. (368 cm)
BALER / WIDTH- w/ Standard tires89 in. (226cm)
WRAPPING SYSTEM / Twine arms2
WRAPPING SYSTEM / Twine ball capacity8
MONITOR / Gate closedSymbol on monitor
MONITOR / Bale sizeDigital
MONITOR / Near full baleAudible, adjustable alert
MONITOR / Full baleAudible, adjustable alert
MONITOR / Auto wrapActivates when bale reaches preset size
MONITOR / Oversize baleYes, audible and mechanical alerts
MONITOR / Bale formingDigital bale shape indicator
DRIVELINE / PTO speed540 rpm or 1,000 rpm
DRIVELINE / TypeConstant-velocity (CV)
DRIVELINE / PTO lockback collar on tractor hookupYes
DRIVELINE / PTO 60-degree free rotationYes
DRIVELINE / Minimum PTODry Hay and Silage - 55 hp (42 kW)
DRIVELINE / Selective Control Valves (SCV)1 SCV: Bale Gate or Gate Automation 2 SCV’s: Hydraulic Pickup Lift, Bale Gate
DRIVELINE / Date collected3-September-2025
BALER / With opt. tires (Hi-Flotation)112 in. (285 cm)
Standard / OptionalDry and Precutter - High-flotation 14
Stripper diameter / Inside77 in. (196 cm)
Stripper diameter / Flare87 in. (221 cm)
Stripper diameter / Number of middle teeth120
Stripper diameter / Number of mega teeth8
Stripper diameter / Gauge wheelsSemi-pneumatic
