John Deere

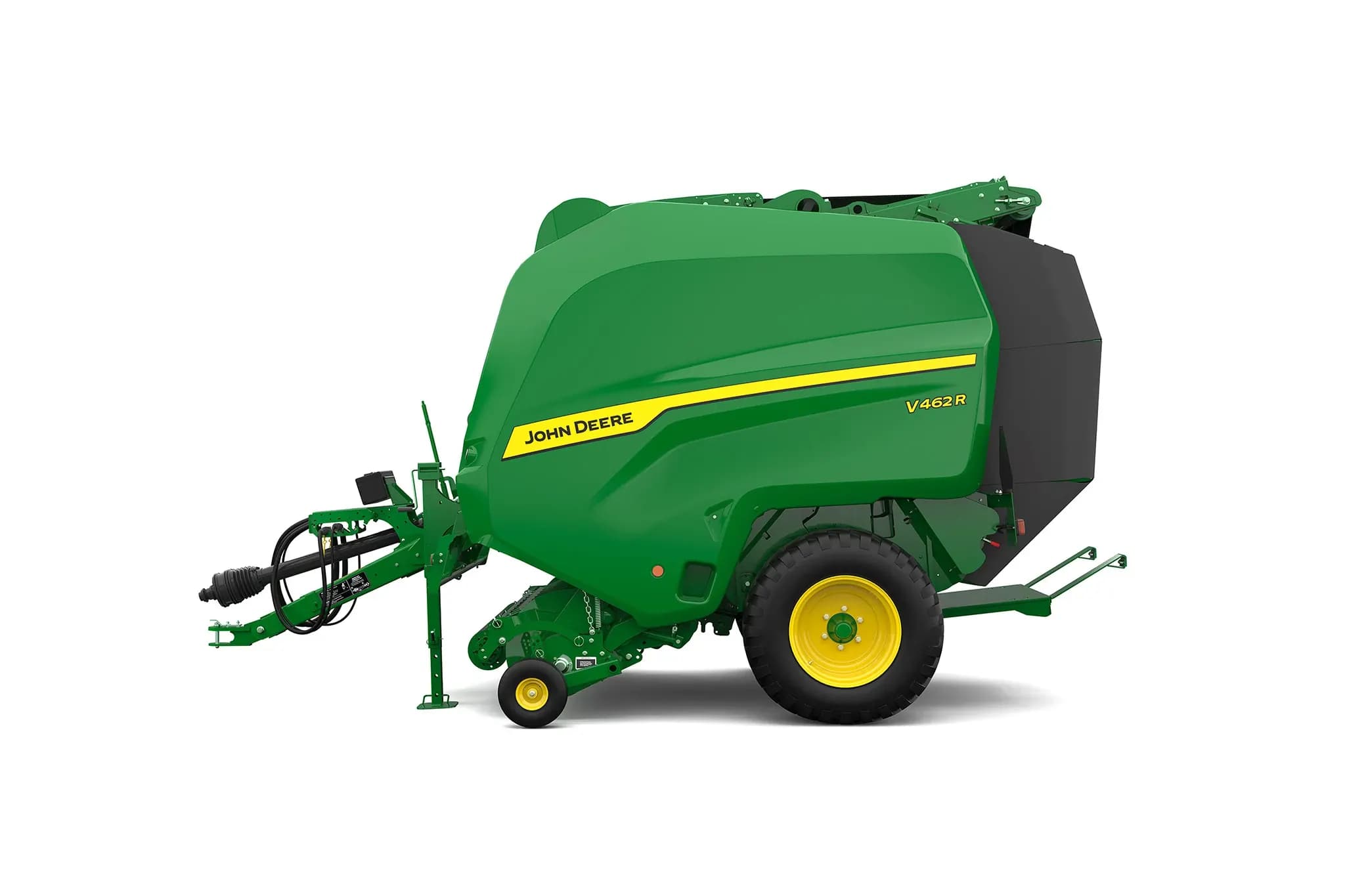

V462R Variable Chamber Round Baler

Name: V462R Variable Chamber Round Baler
Brand: John Deere
SKU: JOHNDEERE-1072C

رقم القطعة: JOHNDEERE-1072C

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

V462R Variable Chamber Round Baler

المواصفات

Model	V462R
Base Code	1072C
Division	hay-and-forage-equipment
Product Family	balers
KEY SPECS / Belts - other - width	Two endless belts - 22.5 in. (573 mm)
KEY SPECS / Density control	Softcore fully adjustable from the monitor in the cab
KEY SPECS / Bale size indication	Monitor – from the display in cab
KEY SPECS / Pickup - Bars	Five
BALE / SIZE- Diameter	2.6 to 6 ft (0.8 to 1.85 m)
BALE / SIZE- Width	3.97 ft (1.21 m)
BALER / WEIGHT	9700 lb (4400 kg)
WIDTH / With narrowest tires	9.02 ft (2.75 m)
WIDTH / With widest tires	9.58 ft (2.92 m)
WRAPPING SYSTEM / Control	From monitor
WRAPPING SYSTEM / Type	Net system and optional twine tying
DRIVELINE / Drive protection	Cam-clutch
TRACTOR REQUIREMENTS 1 / Minimum PTO	120 hp (90 kW)
TRACTOR REQUIREMENTS 1 / Selective Control Valves (SCV)	Two
ADDITIONAL INFORMATION / Date collected	3-September-2025
BALE FORMING / BELTS - OTHER	Variable - two endless belts + two front rolls + starter roll
BALE FORMING / Density control	Density, softcore fully adjustable from the monitor in the cab
BALE FORMING / Bale size indication	Monitor – from the display in cab
MONITOR / Gate closed	Yes
MONITOR / Bale size	Yes
MONITOR / Near full bale	Yes
MONITOR / Full bale	Yes
MONITOR / Auto wrap	Yes
MONITOR / Oversize bale	Yes
MONITOR / Bale forming	Yes
DRIVELINE / PTO speed	Available on all except MaxiCut HC 40: 540 rpm (124kW, 166.3hp) Optional or in base with MaxiCut HC 40: 1000 rpm (157kW, 210hp)
DRIVELINE / PTO lockback collar on tractor hookup	Yes
DRIVELINE / PTO 60-degree free rotation	Yes
REGULAR PICKUP / Type	Rotoflow or MaxiCut HC 68 or 40
REGULAR PICKUP / Width	7.2 ft (2.2 m)
REGULAR PICKUP / Drive	Cam track
REGULAR PICKUP / Bars	Five
REGULAR PICKUP / Knives	Zero or fifteen or twenty five
REGULAR PICKUP / Lift control	Hydraulic
REGULAR PICKUP / Gauge wheels	Fixed or castor action
BALER / Gate closed	With bale ramp - 17.4 ft (5.3 m)
WRAPPING SYSTEM / Bale chamber	Net system on front of baler with capacity for three net rolls
WRAPPING SYSTEM / Twine tying	capacity for ten twine spools
