John Deere

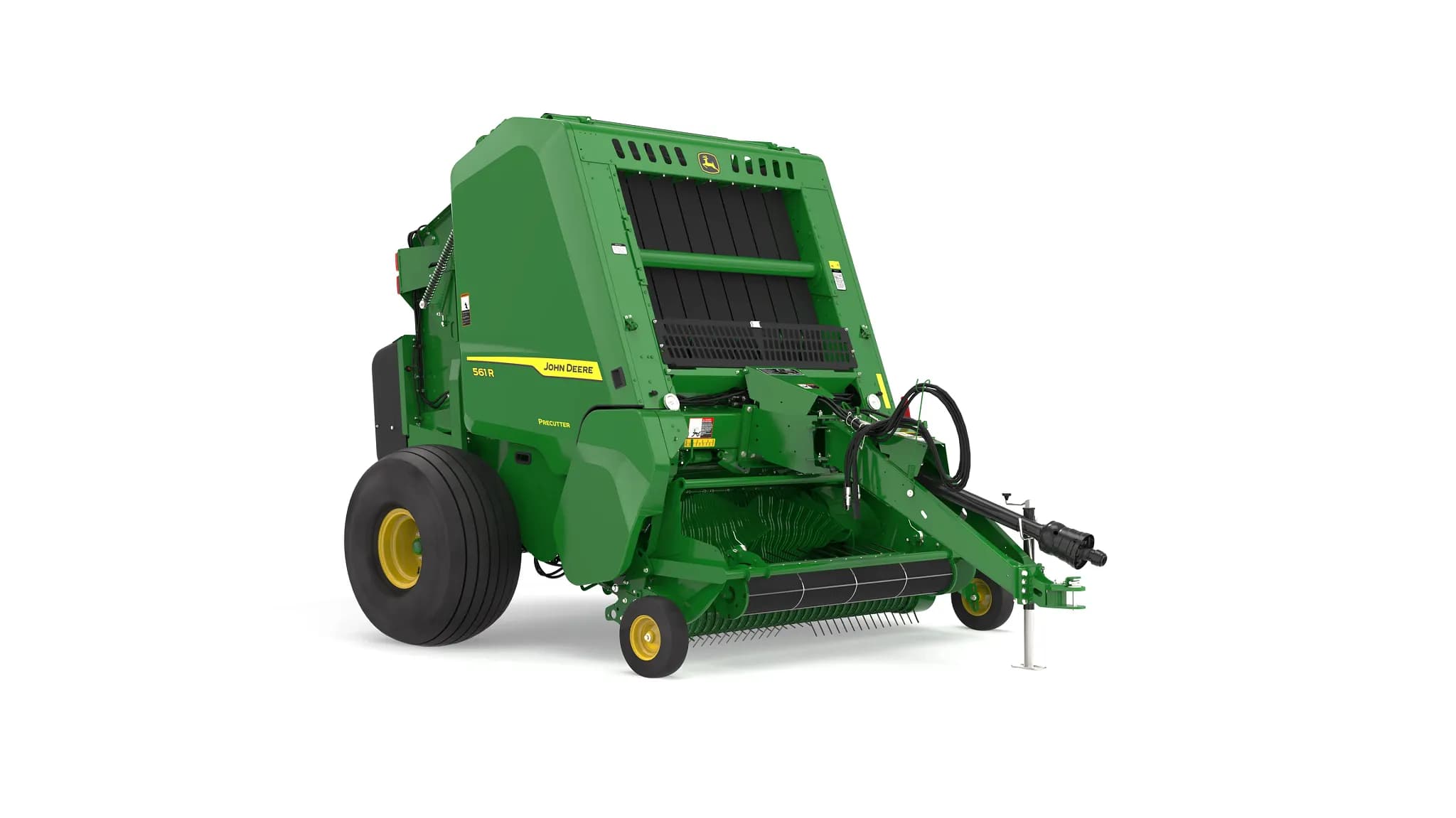

561R Round Baler

Name: 561R Round Baler
Brand: John Deere
SKU: JOHNDEERE-23J5E

رقم القطعة: JOHNDEERE-23J5E

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

561R Round Baler

المواصفات

Model	561R
Base Code	23J5E
Division	hay-and-forage-equipment
Product Family	balers
KEY SPECS / Belts - other - width	7 in. (17.8 cm)
KEY SPECS / Density control	Hydraulic
KEY SPECS / Bale size indication	Electronic display on monitor
BALE / SIZE- Diameter	5 x 6 ft 1.5 x 1.8 m
BALE / SIZE- Width	62 in. (157 cm)
BALER / WEIGHT	Shipping dry - 4,310 lb 1,955 kg Shipping silage - 6,812 lb 3,089 kg
MONITOR / Monitor console for tractor	Integrated Display
DRIVELINE / Drive protection	Friction clutch or Cut out clutch
BALER / -Gate closed	146 in. (371 cm)
BALER / -Gate open	187 in. (475 cm)
BALER / HEIGHT- Gate closed	110 in. (279 cm)
BALER / HEIGHT- Gate open	145 in. (368 cm)
BALER / WIDTH- w/ Standard tires	89 in. (226cm)
WRAPPING SYSTEM / Twine arms	2
WRAPPING SYSTEM / Twine ball capacity	10
MONITOR / Gate closed	Symbol on monitor
MONITOR / Bale size	Digital
MONITOR / Near full bale	Audible, adjustable alert
MONITOR / Full bale	Audible, adjustable alert
MONITOR / Auto wrap	Activates when bale reaches preset size
MONITOR / Oversize bale	Yes, audible and mechanical alerts
MONITOR / Bale forming	Digital bale shape indicator
DRIVELINE / PTO speed	540 rpm or 1,000 rpm
DRIVELINE / Type	Constant-velocity (CV)
DRIVELINE / PTO lockback collar on tractor hookup	Yes
DRIVELINE / PTO 60-degree free rotation	Yes
DRIVELINE / Minimum PTO	High Capacity and Cutting (HC) - 125 hp (93 kW)
DRIVELINE / Selective Control Valves (SCV)	1 SCV: Bale Gate or Gate Automation 2 SCV’s: Hydraulic Pickup Lift, Bale Gate
DRIVELINE / Date collected	3-September-2025
HIGH-CAPACITY PICKUP / Inside	77 in. (196 cm)
HIGH-CAPACITY PICKUP / Flare	87 in. (221 cm)
HIGH-CAPACITY PICKUP / Gauge wheels	Semi-pneumatic
HIGH-CAPACITY PICKUP / Stripper diameter	10 in. (25.4 cm)
HIGH-CAPACITY PICKUP / Type	High Capacity and Cutting (HC)
HIGH-CAPACITY PICKUP / Number of middle teeth	120
HIGH-CAPACITY PICKUP / Number of mega teeth	8
BALER / With opt. tires (Hi-Flotation)	112 in. (285 cm)
Standard / Optional	Dry and Precutter - High-flotation 14
Stripper diameter / Number of middle teeth	120
Stripper diameter / Number of mega teeth	8
