John Deere

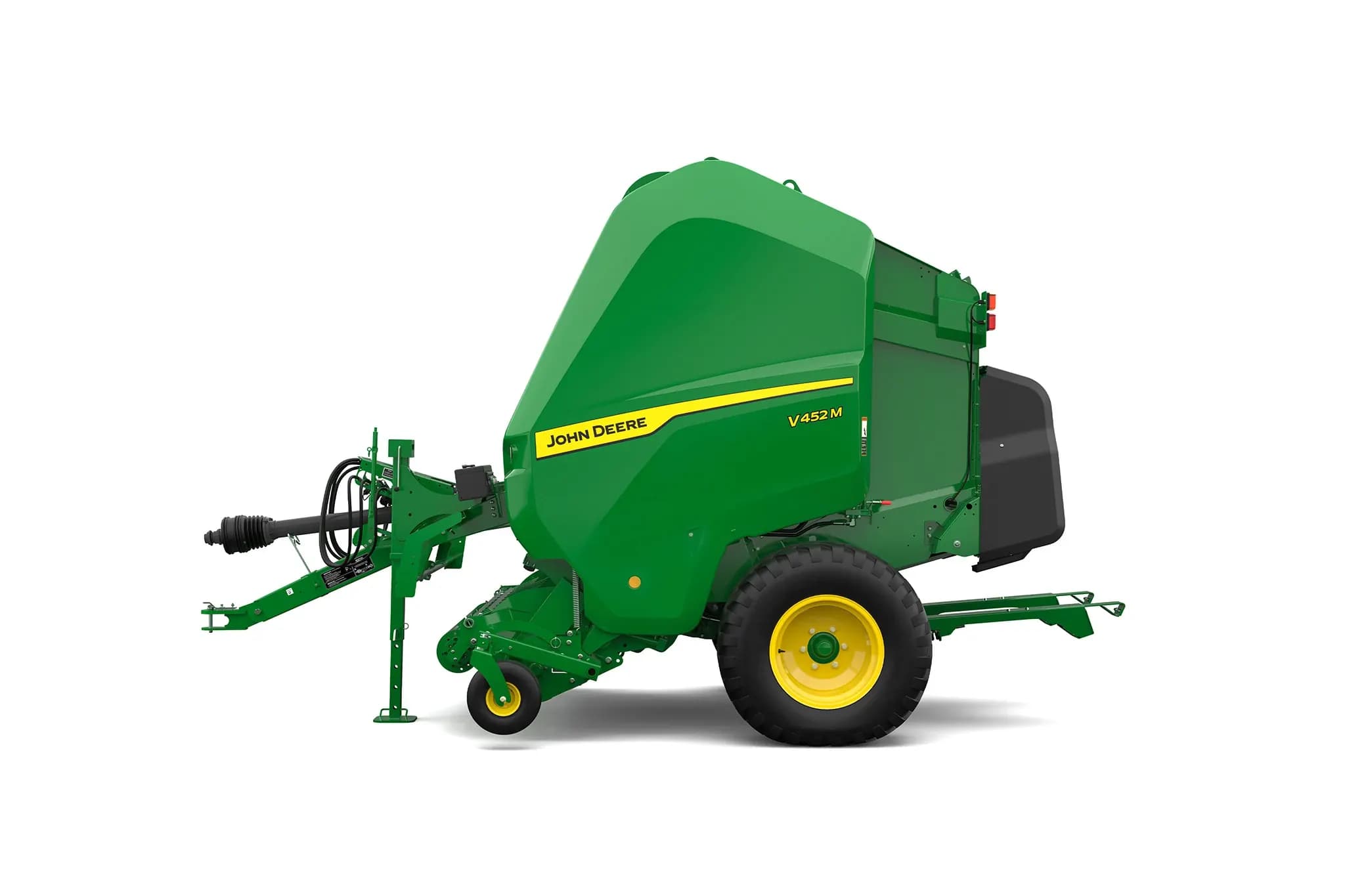

V452M Variable Chamber Round Baler

Name: V452M Variable Chamber Round Baler
Brand: John Deere
SKU: JOHNDEERE-1042C

رقم القطعة: JOHNDEERE-1042C

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

V452M Variable Chamber Round Baler

المواصفات

Model	V452M
Base Code	1042C
Division	hay-and-forage-equipment
Product Family	balers
KEY SPECS / Belts - other - width	Six endless belts - 7.3 in. (185 mm)
KEY SPECS / Density control	Softcore fully adjustable from the monitor in the cab
KEY SPECS / Bale size indication	Monitor – from the display in cab
KEY SPECS / Pickup - Bars	Five
BALE / SIZE- Diameter	3.3 to 5.4 ft (1.0 to 1.65 m)
BALE / SIZE- Width	3.97 ft (1.21 m)
BALER / WEIGHT	8260 lb (3750 kg)
WIDTH / With narrowest tires	8.95 ft (2.73 m)
WIDTH / With widest tires	9 ft (2.75 m)
DRIVELINE / Drive protection	Cam-clutch
BALE FORMING / BELTS - OTHER	Variable - six endless belts + two front rolls + starter roll
BALE FORMING / Density control	Density, softcore fully adjustable from the monitor in the cab
BALE FORMING / Bale size indication	Monitor – from the display in cab
MONITOR / Gate closed	Yes
MONITOR / Bale size	Yes
MONITOR / Near full bale	Yes
MONITOR / Full bale	Yes
MONITOR / Auto wrap	Yes
MONITOR / Oversize bale	Yes
MONITOR / Bale forming	Yes
DRIVELINE / PTO speed	540 rpm (124kW - 166.3 hp) PTO lockback collar on tractor hookup PTO 60-degree free rotation
DRIVELINE / Minimum PTO	100 hp (75 kW) Selective Control Valves (SCV)
DRIVELINE / Date collected	3-September-2025
LENGTH / Gate closed	With bale ramp - 16.9 ft (5.15 m)
HEIGHT / Gate closed	With smallest tires - 9.25 ft (2.82 m) With highest tires - 9.42 ft (2.87 m)
REGULAR PICKUP / Type	Roto flow or MaxiCut HC 68
REGULAR PICKUP / Width	7.2 ft (2.2 m)
REGULAR PICKUP / Drive	Cam track
REGULAR PICKUP / Bars	Five
REGULAR PICKUP / Knives	Zero or fifteen
REGULAR PICKUP / Lift control	Hydraulic
REGULAR PICKUP / Gauge wheels	Fixed or caster action
REGULAR PICKUP / Control	From monitor
REGULAR PICKUP / Bale chamber	Net system on rear of baler with capacity for two net rolls
Wrapper / Twine tying	Optional - two independent twine arms and capacity for ten twine spools
