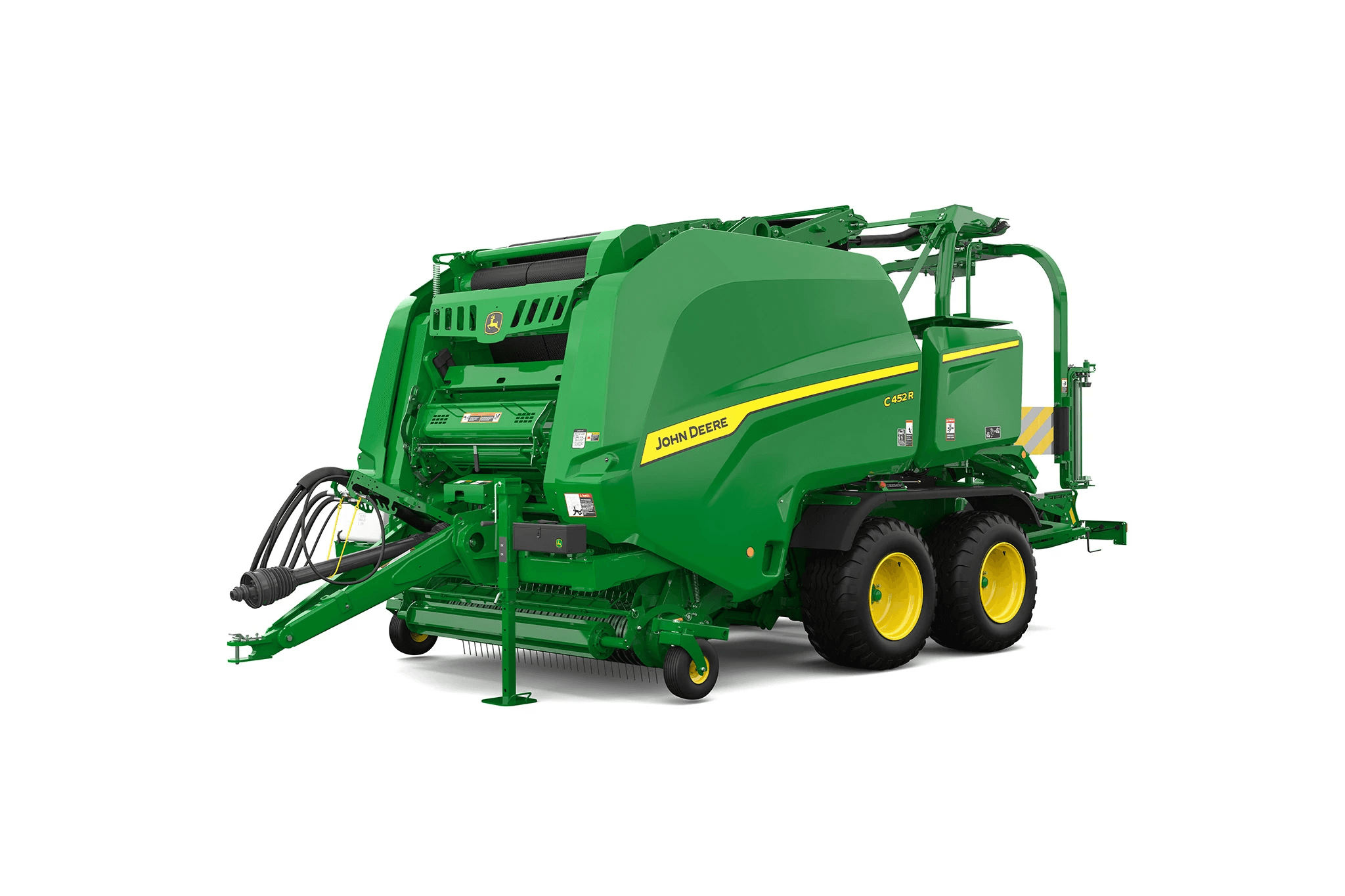

C452R Variable Chamber Wrapping Baler

John Deere

C452R Variable Chamber Wrapping Baler

رقم القطعة: JOHNDEERE-1092C

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

C452R Variable Chamber Wrapping Baler

المواصفات

ModelC452R
Base Code1092C
Divisionhay-and-forage-equipment
Product Familybalers
KEY SPECS / Belts - other - widthTwo endless belts - 22.5 in. (573 mm)
KEY SPECS / Density controlSoftcore fully adjustable from the monitor in the cab
KEY SPECS / Bale size indicationMonitor – from the display in cab
KEY SPECS / Pickup - BarsFive
BALE / SIZE- Diameter2.6 to 5.2 ft (0.8 to 1.60 m)
BALE / SIZE- Width3.97 ft (1.21 m)
BALER / WEIGHT15210 lb (6900 kg)
BALER / LENGTH25.8 ft (7.85 m)
BALER / HEIGHT126.75 in. (321.9 cm)
WIDTH / With narrowest tires9.8 ft (2.98 m)
WIDTH / With widest tires10.79 ft (3.29 m)
WRAPPING SYSTEM / ControlFrom monitor
WRAPPING SYSTEM / TypeNet system and optional twine tying
WRAPPING SYSTEM / WrapperWrapping system with storage capacity for ten plus two film rolls
MONITOR / Monitor console for tractorISOBUS
DRIVELINE / Drive protectionCam-clutch
TRACTOR REQUIREMENTS 1 / Minimum PTO120 hp (90 kW)
TRACTOR REQUIREMENTS 1 / Selective Control Valves (SCV)Power beyond tractor hydraulics preferred but not mandatory
ADDITIONAL INFORMATION / Date collected3-September-2025
BALE FORMING / BELTS - OTHERVariable - two endless belts + two front rolls + starter roll
BALE FORMING / Density controlDensity, softcore fully adjustable from the monitor in the cab
DRIVELINE / PTO speedAvailable on all except MaxiCut HC 40: 540 rpm (124kW, 166.3hp) Optional or in base with MaxiCut HC 40: 1000 rpm (157kW, 210hp)
REGULAR PICKUP / TypeMaxiCut HC 68 or 40
REGULAR PICKUP / KnivesFifteen or twenty-five
BALER / Gate closedWith smallest tires - 9.71 ft (2.96 m) With highest tires - 9.88 ft (3.01 m)
WRAPPING SYSTEM / Bale chamberNet system on front of baler with capacity for three net rolls
WRAPPING SYSTEM / Twine tyingOptional - two independent twine arms and
