Trio® APS Series Horizontal Shaft Impact Crushers

Weir

Trio® APS Series Horizontal Shaft Impact Crushers

Name: Trio® APS Series Horizontal Shaft Impact Crushers
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

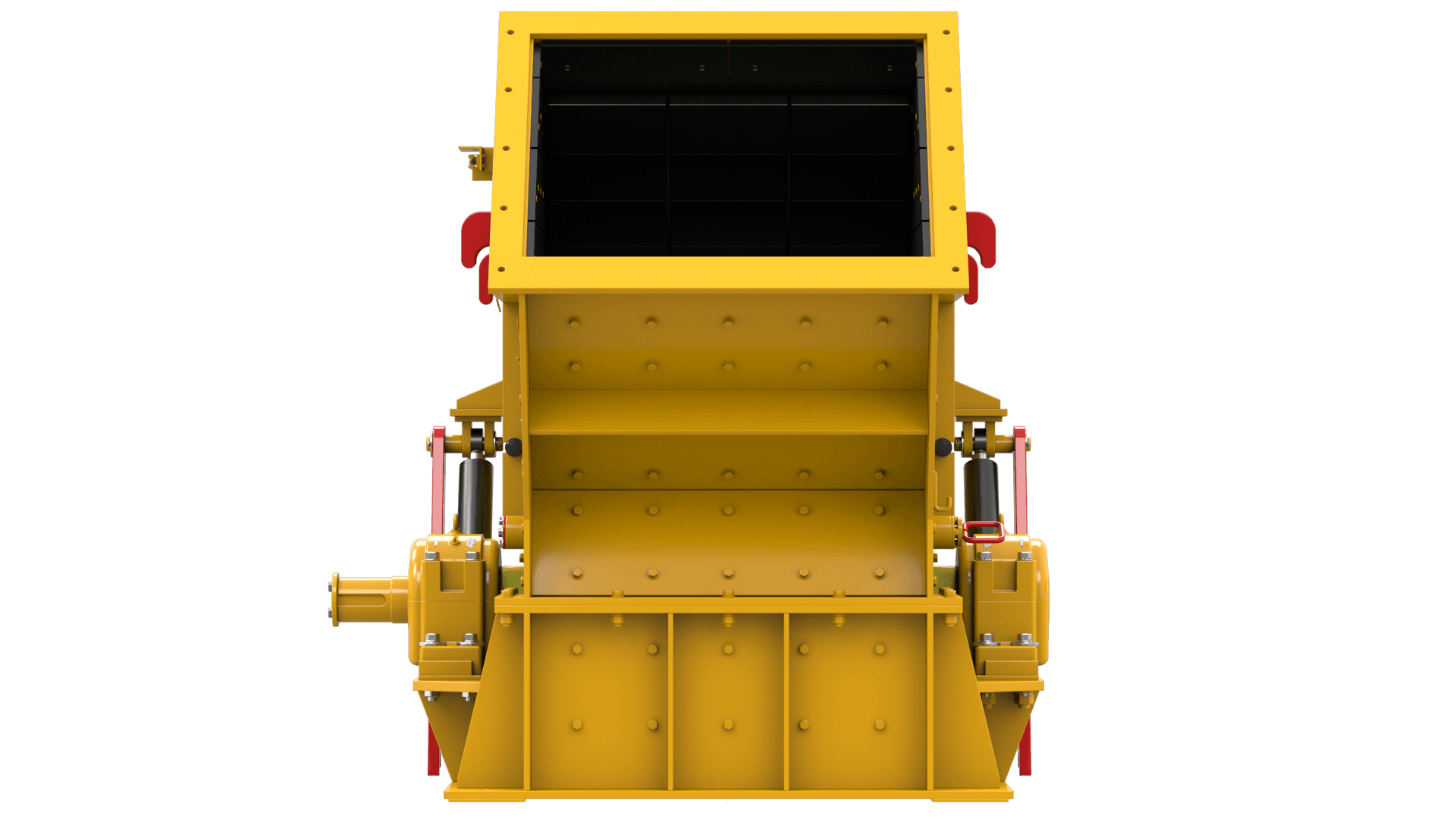

Engineered for high production capacity and large reduction ratio crushing, the Trio® APS Series horizontal shaft impact crusher is renowned for its secondary crushing capabilities, without compromising the quality or size of the product. It can also be used for recycling applications. Impact crushers are best suited to feed materials with a Low Abrasion Index and Low Work Index, but also perform well in other applications. Trio® APS Series horizontal shaft impact crushers feature a large unobstructed opening for slabby feed such as concrete and asphalt. Built for precision and versatility, the Trio® APS Series horizontal impact crusher contains the following features: Robust steel coil springs to support the curtains Shim stacks with hydraulic assist allowing apron gap settings to be easily adjusted Hydraulic assist frame opening for easy access to the inside of the crusher External stripper bar adjustment and replacement Optional third adjustable curtain Compared to other crushers, the Trio® APS Series produces materials with premium particle shape at a single pass.

المواصفات

Brand line	Trio®
Product type	Crushing Equipment, Horizontal Impact Crushers
DESIGN	Horizontal Shaft Impactor
Catalogue category	Horizontal Shaft Impactors, Crushing Equipment
MATERIALS	Welded steel, stress-relieved fabricated steel and solid forged steel
WEIGHT	4,600kg - 21,000kg (Four models are offered)
INSTALLED POWER	55kW / 75Hp - 315kW / 450Hp
MAXIMUM FEED SIZE	200mm - 600mm
PRODUCTION CAPACITY	18-54MTPH - 180-360MTPH
ROTOR SIZE	762x762mm - 1295x1524mm
