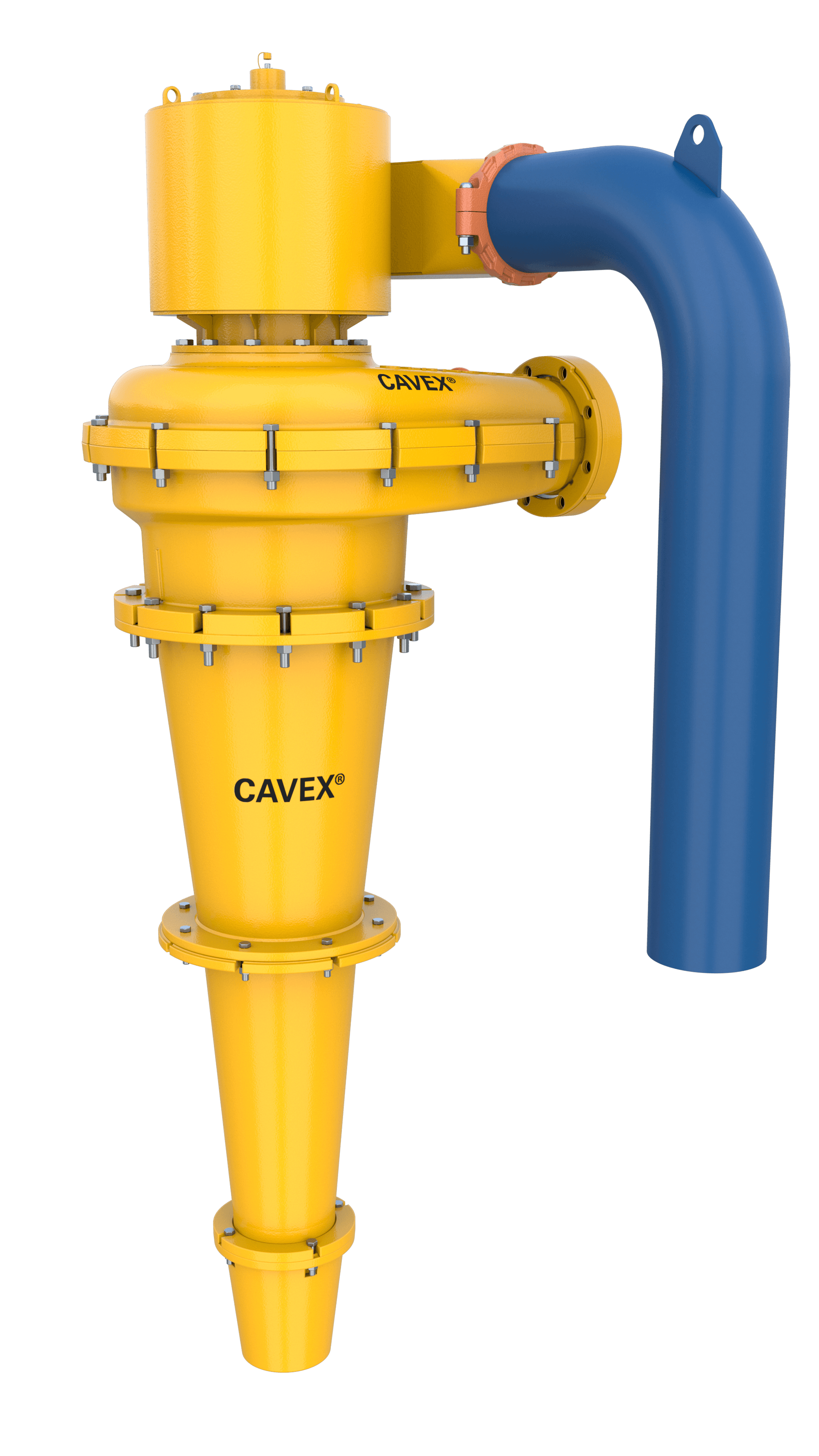

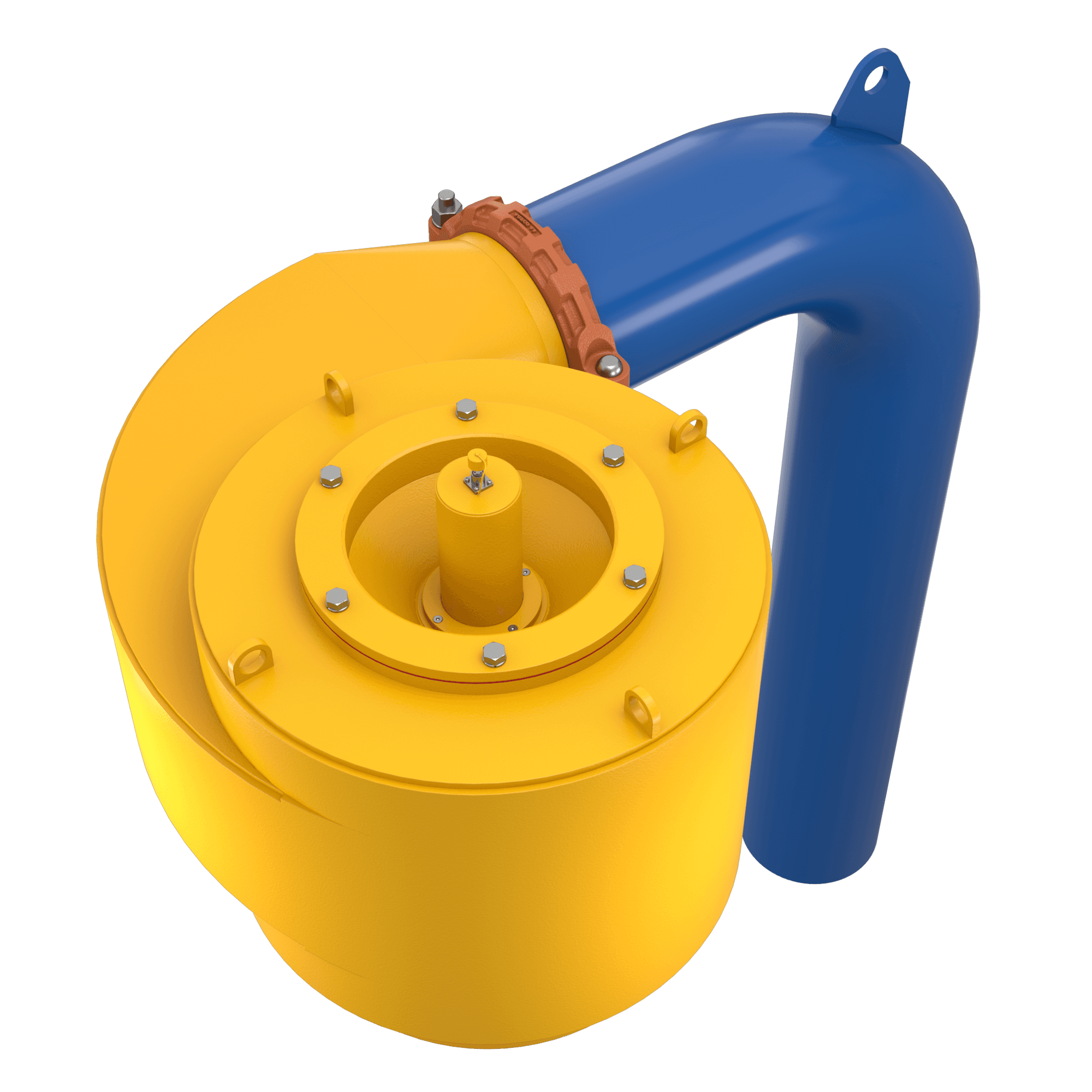

Cavex® Hydrocyclone Air Core Boosters

Name: Cavex® Hydrocyclone Air Core Boosters
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

When fitted to a hydrocyclone, the Cavex® Air Core Booster (ACB) helps to improve overall cyclone performance by improving cyclone efficiency and capacity. By producing a larger and more stable air core inside the hydrocyclone, our range of Cavex® Air Core Boosters (ACB) enhance the volume flow split to the overflow. This is particularly effective when combined with a large apex. This innovative cyclone product is frequently used in mining and aggregates applications to reduce: The total pressure across the hydrocyclone The amount of back pressure at discharge The bypass of fines and Hydrocyclone roping or blockages occurring inside the hydrocyclone If you'd like to improve the efficiency and performance of your hydrocyclone, our range of Cavex® Air Core Boosters can help.

المواصفات

TEMPERATURE RANGE	0-80°C
Brand line	Cavex®
Product type	Hydrocyclones
Catalogue category	Hydrocyclones
SIZE RANGE	100mm to 1200mm diameter
PRESSURE CLASS	0-250kPa
