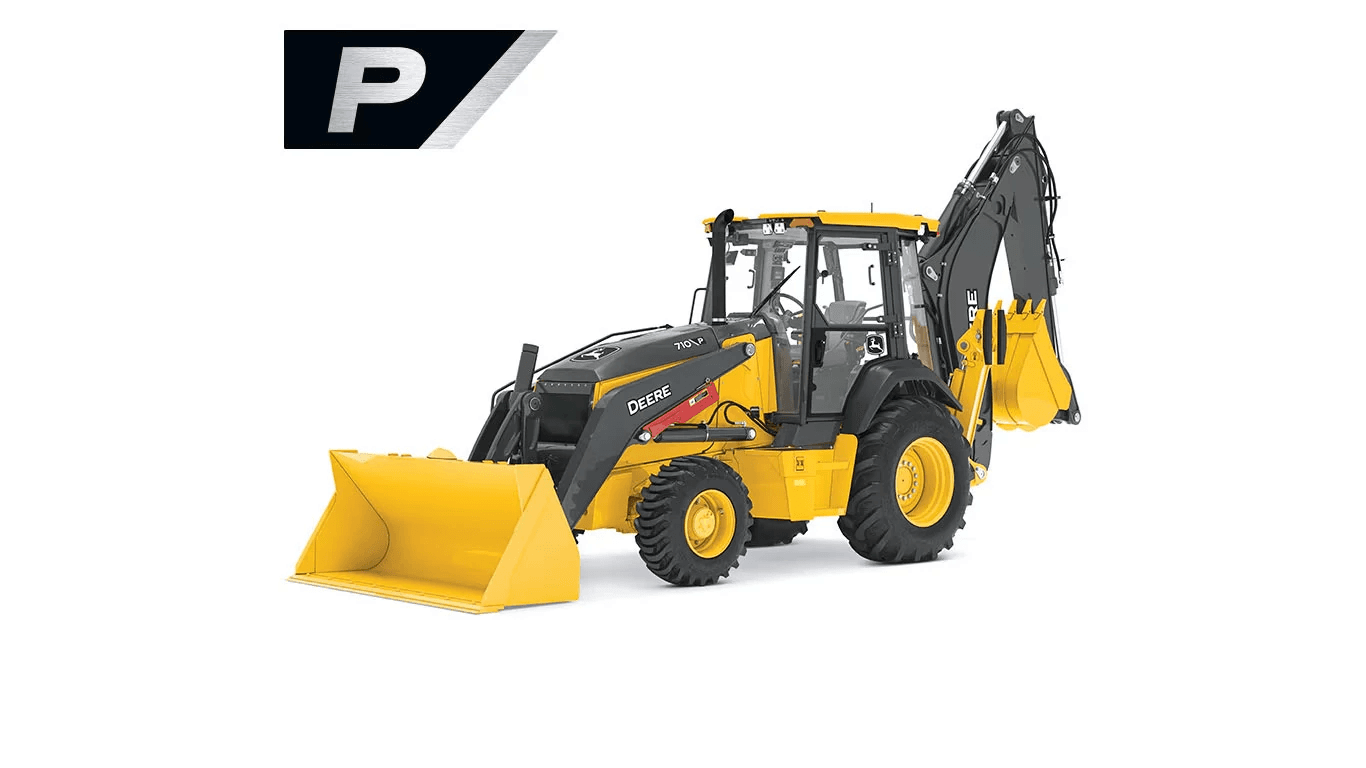

710 P-Tier Backhoe

John Deere

710 P-Tier Backhoe

رقم القطعة: JOHNDEERE-17F1T

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

710 P-Tier Backhoe

المواصفات

Displacement4.5 L (276 cu. in.)
Net Peak Power (ISO 9249)110 kW (148 hp) at 2,240 rpm
Net Peak Torque (ISO 9249)569 Nm (420 lb.-ft.) at 1,400 rpm
Gear1 6.0 km/h (3.7 mph) 6.7 km/h (4.2 mph)
Diesel Exhaust Fluid (DEF) Tank13.7 L (3.6 gal.)
Hydraulic Reservoir50.1 L (13.2 gal.)
Model710 P-Tier
Base Code17F1T
Divisionloaders
Product Familybackhoes
Weight866 kg (1,910 lb.) 1012 kg (2,232 lb.)
Cooling System28.4 L (30.0 qt.)
Hydraulic System168.5 L (44.5 gal.)
With full fuel tank;75-kg (165 lb.) Operator, 11 985 kg (26,422 lb.)
With1.37-m (4 ft. 6 in.) With 1.37-m (4 ft. 6 in.)
Width2464 mm (97.0 in.) 2451 mm (97.0 in.)
and680-kg (1,500 lb.) Counterweight
Net Torque Rise20%
Differential Housing15.0 L (15.9 qt.)
Loader198 L/m (52.3 gpm)
Fuel Tank (with ground-level fueling)174.1 L (46.0 gal.)
Gross Peak Power112 kW (150 hp) at 2,240 rpm
Axle Oscillation, Stop to Stop, Front Axle18 deg.
SAE J438000 kg (17,600 lb.) 10 500 kg (23,100 lb.)
Dynamic12 500 kg (27,600 lb.) 14 000 kg (30,900 lb.)
Static35 000 kg (77,200 lb.) 35 000 kg (77,200 lb.)
Ultimate52 000 kg (114,600 lb.) 52 000 kg (114,600 lb.)
Rear Axle Loader-grip actuated, hydraulically engaged,100% mechanical lock
With Brakes3.99 m (13 ft. 1 in.)
Without Brakes4.58 m (15 ft. 0 in.)
Pump Flow at2,200 rpm
Backhoe198 L/m (52.3 gpm)
Loader Boom (2)100 mm (3.94 in.) 56 mm (2.20 in.) 805 mm (31.69 in.)
Loader Bucket (1)110 mm (4.33 in.) 56 mm (2.20 in.) 672 mm (26.46 in.)
Backhoe Boom (1)160 mm (6.30 in.) 95 mm (3.74 in.) 944 mm (37.17 in.)
Backhoe Crowd (1)140 mm (5.51 in.) 85 mm (3.35 in.) 792 mm (31.18 in.)
Backhoe Bucket (1)110 mm (4.33 in.) 70 mm (2.76 in.) 939 mm (36.97 in.)
Backhoe Swing (2)110 mm (4.33 in.) 56 mm (2.20 in.) 308 mm (12.13 in.)
Backhoe Extendable Dipperstick (1)80 mm (3.15 in.) 45 mm (1.77 in.) 1372 mm (54.02 in.)
MFWD (1)75 mm (2.95 in.) 50 mm (1.97 in.) 260 mm (10.24 in.)
Planetary (each)2.2 L (2.3 qt.)
Engine Oil (including vertical spin-on13.0 L (13.7 qt.)
Torque Converter and Transmission15.1 L (16.0 qt.)
ISO 6016 Operating Mass12 150 kg (26,786 lb.)
ISO 6016 Gross Machinery Mass13 250 kg (29,211 lb.)
Typical With Cab, Extendable Dipperstick,12 315 kg (27,150 lb.)
Extendable Dipperstick330 kg (728 lb.)
Front Loader Coupler389 kg (858 lb.)
A Ground Clearance, Minimum306 mm (12 in.)
B Overall Length, Transport8.42 m (27 ft. 8 in.)
C Width Over Tires2.37 m (7 ft. 9 in.)
D Height to Top of ROPS/Cab3.02 m (9 ft. 11 in.)
E Length From Axle to Axle, MFWD Axle2.55 m (8 ft. 4 in.)
Backhoe specifications are with610-mm x 0.31-m (24 in. x 11 cu. ft.) bucket; dipper lift specs are with a boom angle of 65 deg.
Bucket Range610–914 mm (24–36 in.)
Swing Arc180 deg.
F Loading Height, Truck Loading Position4.44 m (14 ft. 7 in.) 4.48 m (14 ft. 8 in.) 5.33 m (17 ft. 6 in.)
G Reach From Center of Swing Pivot6.85 m (22 ft. 6 in.) 6.84 m (22 ft. 5 in.) 8.15 m (26 ft. 9 in.)
H Reach From Center of Rear Axle8.12 m (26 ft. 8 in.) 8.11 m (26 ft. 7 in.) 9.42 m (30 ft. 11 in.)
I Digging Depth (SAE maximum)5.27 m (17 ft. 3 in.) 5.26 m (17 ft. 3 in.) 6.63 m (21 ft. 9 in.)
610-mm (2 ft.) Flat Bottom5.25 m (17 ft. 3 in.) 5.25 m (17 ft. 3 in.) 6.62 m (21 ft. 9 in.)
2440-mm (8 ft.) Flat Bottom4.96 m (16 ft. 3 in.) 4.96 m (16 ft. 3 in.) 6.40 m (21 ft. 0 in.)
N Bucket Rotation190 deg. 190 deg. 190 deg.
O Transport Height4.23 m (13 ft. 10 in.) 4.22 m (13 ft. 10 in.) 4.22 m (13 ft. 10 in.)
P Bucket Dump Angle, Maximum45 deg.
Q Rollback Angle at Ground Level40 deg.
Bucket Capacity1.45 m (1.89 cu. yd.) 0.99 m (1.29 cu. yd.)
Lift Capacity, Full Height4477 kg (9,871 lb.) 4252 kg (9,375 lb.)
R Height to Bucket Hinge Pin, Maximum3.73 m (12 ft. 3 in.) 3.73 m (12 ft. 3 in.)
S Dump Clearance, Bucket at45 deg. 2.81 m (9 ft. 3 in.) 2.94 m (9 ft. 8 in.)
T Reach at Full Height, Bucket at45 deg. 890 mm (35.0 in.) 801 mm (31.6 in.)
U Digging Depth Below Ground, Bucket157 mm (6.2 in.) 129 mm (5.1 in.)
V Length From Front Axle Centerline to2.26 m (7 ft. 5 in.) 2.08 m (6 ft. 10 in.)
Hydraulic Capacity1219-mm (48 in.) Tines 1524-mm (60 in.) Tines
A Maximum Height2575 kg (5,677 lb.) 2389 kg (5,266 lb.)
B Maximum Reach4452 kg (9,815 lb.) 4222 kg (9,308 lb.)
C At Ground Line6011 kg (13,251 lb.) 5701 kg (12,568 lb.)
D Below Ground Line227 mm (8.9 in.) 227 mm (8.9 in.)
Lift capacities are over-end values in kg (lb.). Figures listed are100% of the maximum lift force available.
Rear Axle25.0 L (26.4 qt.)
noted, these specifications are based on a unit with21L-28-in. 18PR (R4) tubeless rear and 15-19.5-in. 12PR (R4) front tires, and 1.45-m (1.89 cu. yd.) loader bucket.
Lift Mode26 890 kPa (3,900 psi)
Y — — — —1353 kg (2,943 lb.) 1523 kg (3,318 lb.) a
L Stabilizer Spread, Operating3.99 m (13 ft. 1 in.) 3.99 m (13 ft. 1 in.) 3.99 m (13 ft. 1 in.)
M Stabilizer Overall Width, Operating4.65 m (15 ft. 3 in.) 4.65 m (15 ft. 3 in.) 4.65 m (15 ft. 3 in.)
Z — — — —1333 kg (2,900 lb.) 1504 kg (3,277 lb.)
Torque Converter Single stage, dual phase with 1.92:1 stall ratio,280 mm (11 in.)
(MFWD), and21L-28 Rear Tires Forward Reverse
Backhoe Stabilizer, Standard (2)115 mm (4.53 in.) 63 mm (2.48 in.) 588 mm (23.15 in.)
With MFWD 15-19.5 R4 (12)21L-28 R4 (18)
Standard Equipment, Cab, and680-kg
K Stabilizer Width, Transport, With Standard2.29 m (7 ft. 6 in.) 2.29 m (7 ft. 6 in.) 2.29 m (7 ft. 6 in.)
A 9554 kg (21,062 lb.)9554 kg (21,062 lb.) 9364 kg (20,643 lb.) 9364 kg (20,643 lb.) 5445 kg (12,004 lb.) 5892 kg (12,989 lb.)
B 5269 kg (11,617 lb.)5535 kg (12,202 lb.) 5125 kg (11,299 lb.) 5308 kg (11,701 lb.) 3411 kg (7,520 lb.) 3699 kg (8,155 lb.)
C 4516 kg (9,956 lb.)4759 kg (10,492 lb.) 4361 kg (9,614 lb.) 4537 kg (10,003 lb.) 2929 kg (6,457 lb.) 3179 kg (7,009 lb.) A
D 4110 kg (9,062 lb.)4443 kg (9,795 lb.) 3948 kg (8,705 lb.) 4246 kg (9,360 lb.) 2674 kg (5,895 lb.) 2904 kg (6,402 lb.)
E 3741 kg (8,248 lb.)4045 kg (8,917 lb.) 3573 kg (7,878 lb.) 3876 kg (8,546 lb.) 2494 kg (5,498 lb.) 2710 kg (5,975 lb.)
F 3241 kg (7,146 lb.)3505 kg (7,728 lb.) 3066 kg (6,759 lb.) 3329 kg (7,339 lb.) 2339 kg (5,156 lb.) 2542 kg (5,605 lb.)
G 2326 kg (5,127 lb.)2519 kg (5,553 lb.) 2138 kg (4,715 lb.) 2330 kg (5,137 lb.) 2179 kg (4,804 lb.) 2370 kg (5,225 lb.)
H 2526 kg (5,569 lb.)2743 kg (6,048 lb.) 2309 kg (5,090 lb.) 2526 kg (5,569 lb.) 1989 kg (4,385 lb.) 2165 kg (4,774 lb.)
I 2599 kg (5,730 lb.)2832 kg (6,243 lb.) 2366 kg (5,216 lb.) 2599 kg (5,730 lb.) 1735 kg (3,824 lb.) 1891 kg (4,169 lb.)
J 2559 kg (5,643 lb.)2794 kg (6,160 lb.) 2319 kg (5,113 lb.) 2554 kg (5,630 lb.) 1356 kg (2,989 lb.) 1483 kg (3,270 lb.) 5
K 2493 kg (5,496 lb.)2725 kg (6,009 lb.) 2248 kg (4,955 lb.) 2480 kg (5,468 lb.) 1643 kg (3,583 lb.) 1807 kg (3,944 lb.)
L 2419 kg (5,333 lb.)2648 kg (5,838 lb.) 2170 kg (4,785 lb.) 2399 kg (5,290 lb.) 1696 kg (3,701 lb.) 1869 kg (4,083 lb.) 0 1 2 3 4 5 6 7
M 2345 kg (5,169 lb.)2570 kg (5,666 lb.) 2093 kg (4,613 lb.) 2318 kg (5,110 lb.) 1702 kg (3,714 lb.) 1879 kg (4,104 lb.)
N 2272 kg (5,009 lb.)2493 kg (5,497 lb.) 2017 kg (4,447 lb.) 2239 kg (4,936 lb.) 1686 kg (3,680 lb.) 1865 kg (4,073 lb.)
O 2203 kg (4,856 lb.)2420 kg (5,336 lb.) 1945 kg (4,289 lb.) 2163 kg (4,769 lb.) 1661 kg (3,624 lb.) 1839 kg (4,017 lb.)
P 2137 kg (4,711 lb.)2351 kg (5,183 lb.) 1877 kg (4,139 lb.) 2092 kg (4,611 lb.) 1630 kg (3,556 lb.) 1808 kg (3,947 lb.)
Q 2075 kg (4,575 lb.)2286 kg (5,040 lb.) 1813 kg (3,997 lb.) 2024 kg (4,463 lb.) 1596 kg (3,482 lb.) 1773 kg (3,872 lb.)
R 2018 kg (4,448 lb.)2226 kg (4,907 lb.) 1753 kg (3,865 lb.) 1961 kg (4,324 lb.) 1562 kg (3,406 lb.) 1738 kg (3,793 lb.)
S 1964 kg (4,330 lb.)2170 kg (4,783 lb.) 1697 kg (3,741 lb.) 1903 kg (4,194 lb.) 1528 kg (3,331 lb.) 1702 kg (3,715 lb.) 2 D R
T 1915 kg (4,222 lb.)2119 kg (4,672 lb.) 1645 kg (3,626 lb.) 1849 kg (4,076 lb.) 1494 kg (3,257 lb.) 1668 kg (3,639 lb.) 1
U 1872 kg (4,127 lb.)2075 kg (4,575 lb.) 1597 kg (3,522 lb.) 1801 kg (3,970 lb.) 1462 kg (3,185 lb.) 1634 kg (3,565 lb.) A
V 1837 kg (4,050 lb.)2041 kg (4,499 lb.) 1557 kg (3,432 lb.) 1761 kg (3,882 lb.) 1431 kg (3,117 lb.) 1602 kg (3,495 lb.)
W 1819 kg (4,011 lb.)2028 kg (4,470 lb.) 1529 kg (3,372 lb.) 1738 kg (3,832 lb.) 1403 kg (3,054 lb.) 1573 kg (3,429 lb.) BOOM X
X 1828 kg (4,030 lb.)2043 kg (4,504 lb.) 1529 kg (3,371 lb.) 1744 kg (3,845 lb.) 1376 kg (2,995 lb.) 1546 kg (3,370 lb.)
a — — — —1320 kg (2,871 lb.) 1492 kg (3,251 lb.)
b — — — —1318 kg (2,865 lb.) 1494 kg (3,253 lb.)
c — — — —1340 kg (2,914 lb.) 1525 kg (3,321 lb.)
d — — — —1472 kg (3,202 lb.) 1685 kg (3,673 lb.) With Extendable Dipperstick, Extended
