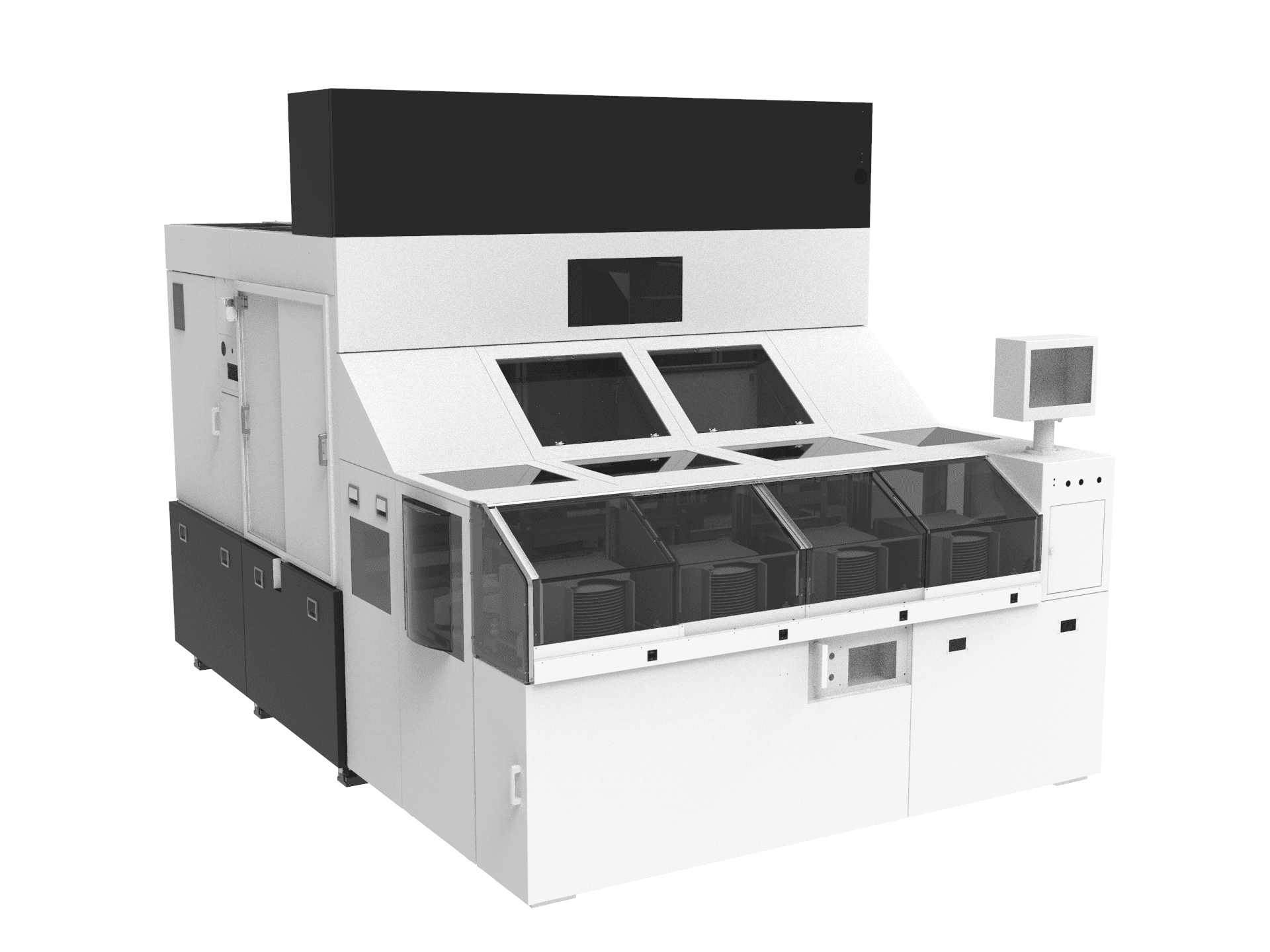

GCG300
رقم القطعة: KOMATSU-GCG300
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
GCG300
المواصفات
| Machine size (W x D x H) (mm) | 2,370 x 3,500 x 2,500 |
|---|---|
| Machine size (W x D x H) (in) | 93.3 x 137.8 x 98.4 |
| Machine size (W x L x H) (mm) | 2,370 x 3,500 x 2,500 |
| Machine size (W x L x H) (in) | 93.3 x 137.8 x 98.4 |
| Max workpiece size (in) | Φ11.8 |
| Max workpiece size (mm) | Φ300 |
| Processing method | In-feed grinding |
| Specialties | Ultra-precision surface grinder for semiconductors |
| Target workpiece dimensions (mm) | Φ300 |
| Target workpiece dimensions (in) | Φ11.8 |
| Grinding wheel spindle speed (min-1) | 600-3,000 |
| Chuck spindle speed (min-1) | 0-450 |
| Grinding wheel feed axis stroke (mm) | 120 |
| Grinding wheel feed axis stroke (in) | 4.7 |
| Number of chuck tables | 2 |
| Number of cassettes | 4 |
