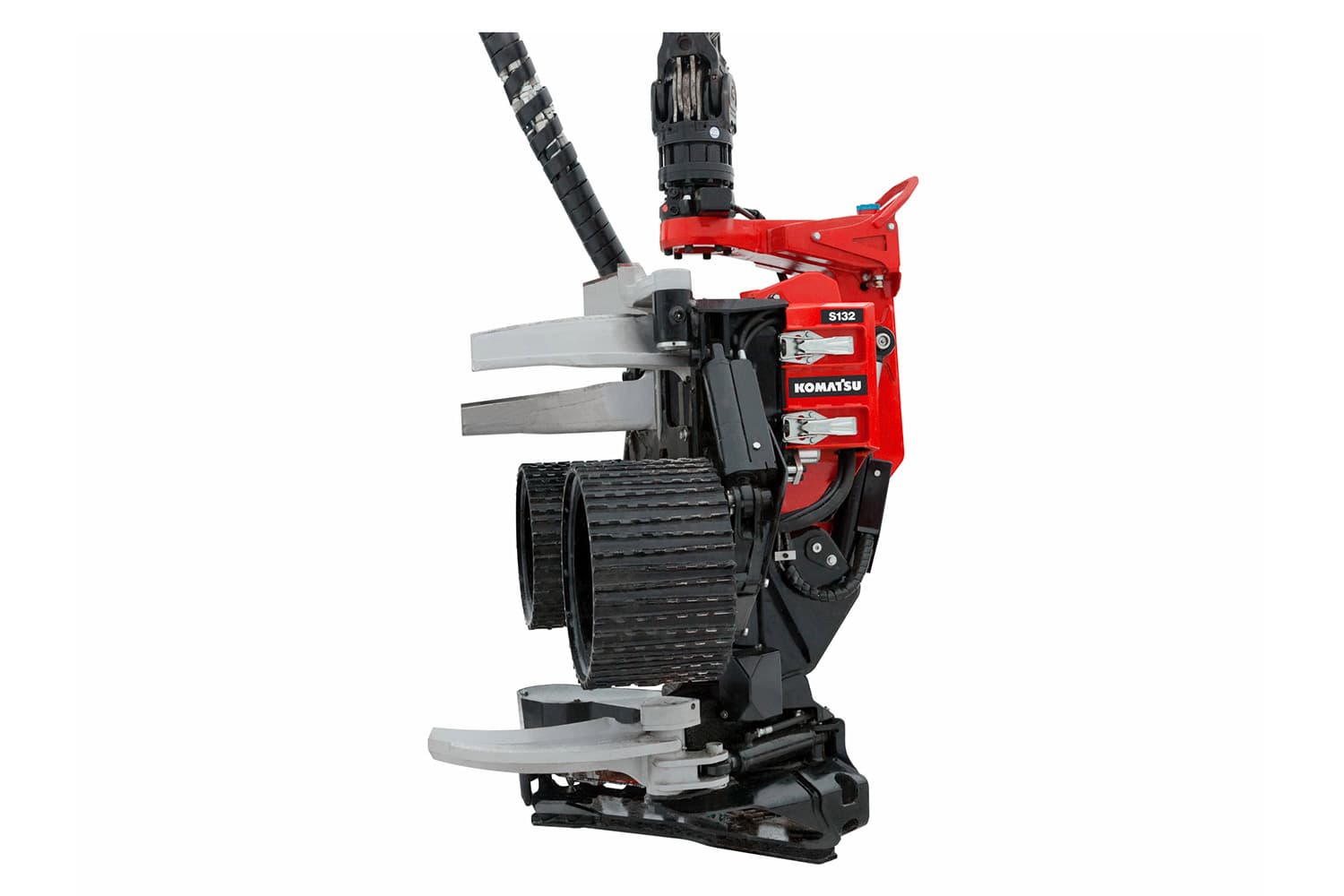

S132-2
رقم القطعة: KOMATSU-S132-2
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
S132-2
المواصفات
| Weight (kg) | 1,380 |
|---|---|
| Weight (lbs) | 3,042 |
| Max width (in) | 66.5 |
| Max width (mm) | 1,689 |
| Height including rotator (mm) | 2,170 |
| Height including rotator (in) | 85.4 |
| Feed speed (m/s) | 0-5 |
| Feed speed (ft/s) | 0-16.4 |
| Gross feed force (kN) | Feed roller motor dependent: 21.0/26.1/28.7 kN |
| Gross feed force (lbf) | Feed roller motor dependent: 4,721/5,868/6,452 lbf |
| Delimbing knives, number | 4 |
| Saw motor (in^3/rev) | 1.16 |
| Saw motor (cm^3/rev) | 19 |
| Max hydraulic flow (L/min) | 220/275/300 |
| Max hydraulic flow (gpm) | 58.1/72.6/79.3 |
| Max hydraulic pressure (psi) | 4,061 |
| Max hydraulic pressure (MPa) | 28 |
| Cutting diameter, max (in) | 27.9 |
| Cutting diameter, max (mm) | 710 |
| Head opening, max (in) | 24.6 |
| Head opening, max (mm) | 625 |
| Feed roller type | Steel |
| Height to top knife (in) | 66.8 |
| Height to top knife (mm) | 1,696 |
| Feed roller opening, max (in) | 24.6 |
| Feed roller opening, max (mm) | 625 |
| Opening front knives (mm) | 641 |
| Opening front knives (in) | 25.2 |
| Opening front knife to rear knife (in) | 27.2 |
| Opening front knife to rear knife (mm) | 690 |
| Delimbing diameter, tip to tip (in) | 16.9 |
| Delimbing diameter, tip to tip (mm) | 428 |
| Bar (in) | 32.5 |
| Bar (cm) | 82.5 |
