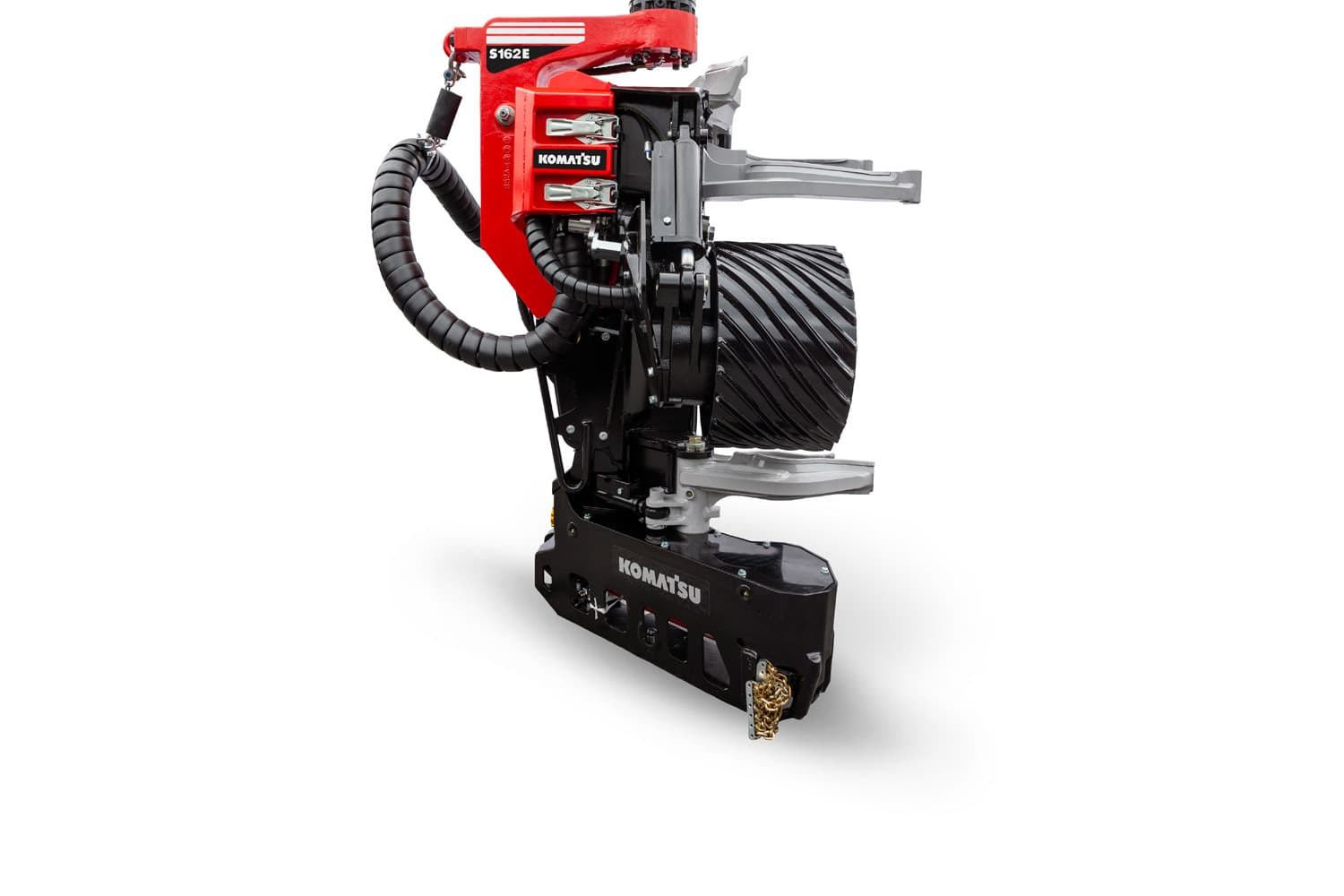

S162E-1
رقم القطعة: KOMATSU-S162E-1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
S162E-1
المواصفات
| Weight (kg) | 1,649 |
|---|---|
| Weight (lbs) | 3,635 |
| Max width (in) | 67 |
| Max width (mm) | 1,704 |
| Height including rotator (mm) | 2,280 |
| Height including rotator (in) | 89.7 |
| Feed speed (m/s) | 0-5.9 |
| Feed speed (ft/s) | 0-19.3 |
| Gross feed force (kN) | 20.8 |
| Gross feed force (lbf) | 4,676 |
| Delimbing knives, number | 6 |
| Saw motor (in^3/rev) | 1.16 |
| Saw motor (cm^3/rev) | 19 |
| Max hydraulic flow (L/min) | 330 |
| Max hydraulic flow (gpm) | 87.18 |
| Max hydraulic pressure (psi) | 4,061 |
| Max hydraulic pressure (MPa) | 28 |
| Cutting diameter, max (in) | 24.2 |
| Cutting diameter, max (mm) | 615 |
| Feed roller type | Eucalyptus |
| Height to top knife (in) | 71 |
| Height to top knife (mm) | 1,803 |
| Feed roller opening, max (in) | 22.1 |
| Feed roller opening, max (mm) | 563 |
| Opening front knives (mm) | 632 |
| Opening front knives (in) | 24.9 |
| Opening rear knives (mm) | 624 |
| Opening rear knives (in) | 24.6 |
| Delimbing diameter, tip to tip (in) | Front knives: 7.9, Rear knives: 10.2 |
| Delimbing diameter, tip to tip (mm) | Front knives: 200, Rear knives: 260 |
| Bar (in) | 29.5 |
| Bar (cm) | 75 |
| Recommended working range (in) | 2-9.2 |
| Recommended working range (mm) | 50-230 |
