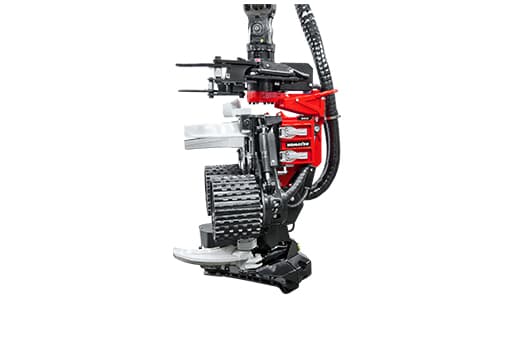

S92-1
رقم القطعة: KOMATSU-S92-1
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
S92-1
المواصفات
| Weight (kg) | 1,018 |
|---|---|
| Weight (lbs) | 2,244 |
| Max width (in) | 54.4 |
| Max width (mm) | 1,382 |
| Height including rotator (mm) | 1,873 |
| Height including rotator (in) | 72.3 |
| Feed speed (m/s) | 0-5.5 |
| Feed speed (ft/s) | 0-18 |
| Gross feed force (kN) | 23.4 / 26.2 |
| Gross feed force (lbf) | 5,260 / 5,890 |
| Delimbing knives, number | 4 |
| Saw motor (in^3/rev) | 1.16 |
| Saw motor (cm^3/rev) | 19 |
| Max hydraulic flow (L/min) | 240 / 280 |
| Max hydraulic flow (gpm) | 63.4 / 73.9 |
| Max hydraulic pressure (psi) | 4,061 |
| Max hydraulic pressure (MPa) | 28 |
| Cutting diameter, max (in) | 24.2 / 28.1 |
| Cutting diameter, max (mm) | 615 / 715 |
| Head opening, max (in) | 20.9 |
| Head opening, max (mm) | 530 |
| Feed roller type | Steel |
| Height to top knife (in) | 58 |
| Height to top knife (mm) | 1,474 |
| Feed roller opening, max (in) | 20.9 |
| Feed roller opening, max (mm) | 530 |
| Opening front knives (mm) | 535 |
| Opening front knives (in) | 21.1 |
| Opening front knife to rear knife (in) | 22.6 |
| Opening front knife to rear knife (mm) | 573 |
| Delimbing diameter, tip to tip (in) | 14.7 |
| Delimbing diameter, tip to tip (mm) | 373 |
| Bar (in) | 29.5 / 32.3 |
| Bar (cm) | 75 / 82 |
