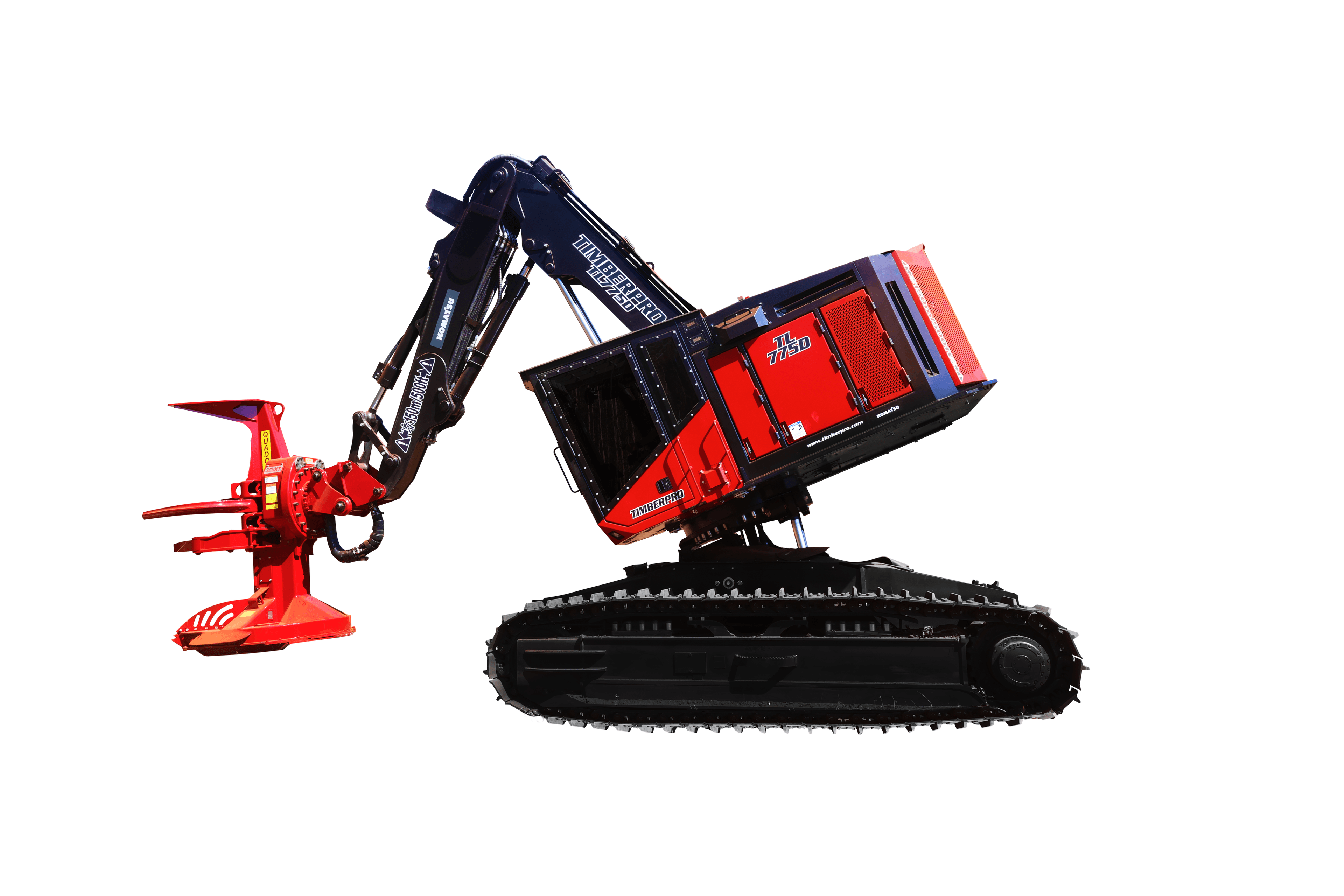

TL775D
رقم القطعة: KOMATSU-TL775D
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
TL775D
المواصفات
| Operating weight (kg) | 34,850 |
|---|---|
| Operating weight (lbs) | 76,670 |
| Engine model | Cummins L9 Performance |
| Aspiration | eVGT, after cooled, cooled EGR |
| Piston displacement (L) | 8.9 |
| Piston displacement (in^3) | 540 |
| Fan drive type | Hybrid, variable speed, auto reverse |
| Fuel tank (US gal) | 256 |
| Fuel tank (L) | 969 |
| Hydraulic tank (L) | 454 |
| Hydraulic tank (US gal) | 120 |
| Track type | Grease sealed |
| Drive method type | Hydrostatic |
| High (mph) | 4.4 |
| High (kph) | 7.08 |
| Low (kph) | 2.25 |
| Low (mph) | 1.4 |
| Swing speed (rpm) | 6.6 |
| Bore (mm) | 114 |
| Bore (in) | 4.49 |
| Stroke (in) | 5.86 |
| Stroke (mm) | 145 |
| Track frame | HD boxed structure, with shoe support |
| Power (HP) | 325 |
| Power (kW) | 242 |
| Travel motor | Hydrostatic |
| Engine type | Water cooled, 4-cycle, XPI fuel injection |
| Tractive effort (kgf) | Up to 46,984 |
| Tractive effort (lbf) | Up to 103,583 |
| Lifting capacity (kg) | Up to 6,758 at 6.1 m |
| Car body | HD boxed frame structure with flat bottom, storage trunk, integrated fuel tank |
| Number of shoes/links (per side) | 48 |
| Track rollers (per side) | 10 |
| Peak torque (Nm) | 1.561 |
| Peak torque (lbs-ft) | 1.151 |
| Cooling system (L) | 51 |
| Engine oil pan (L) | 23.6 |
| DEF (L) | 56.8 |
| Swing torque (lbs-ft) | 64,608 |
| Swing brake | Oil bath, multi disc, spring applied, hybrid release |
| Lifting capacity (lb) | Up to 14,900 at 20 ft. |
| Engine details | T4F/Stage 5 emissions certified |
| Parking brake type | Oil bath, multi disc, spring applied, hybrid release |
| Implement pump (gpm) | 96 |
| Rated (kW) | 350 |
| Implement pump (L/min) | 363 |
| Rated (HP) | 261 |
| Cooling system (US gal) | 13.5 |
| Engine oil pan (US gal) | 6.25 |
| Final drive per side (L) | 10 |
| Final drive per side (US gal) | 2.6 |
| Swing gear box (L) | 4.43 |
| Swing gear box (US gal) | 1.125 |
| DEF (US gal) | 15 |
| Swing torque (nm) | 87.6 |
| Peak (HP) | 350 |
| Peak (kW) | 261 |
