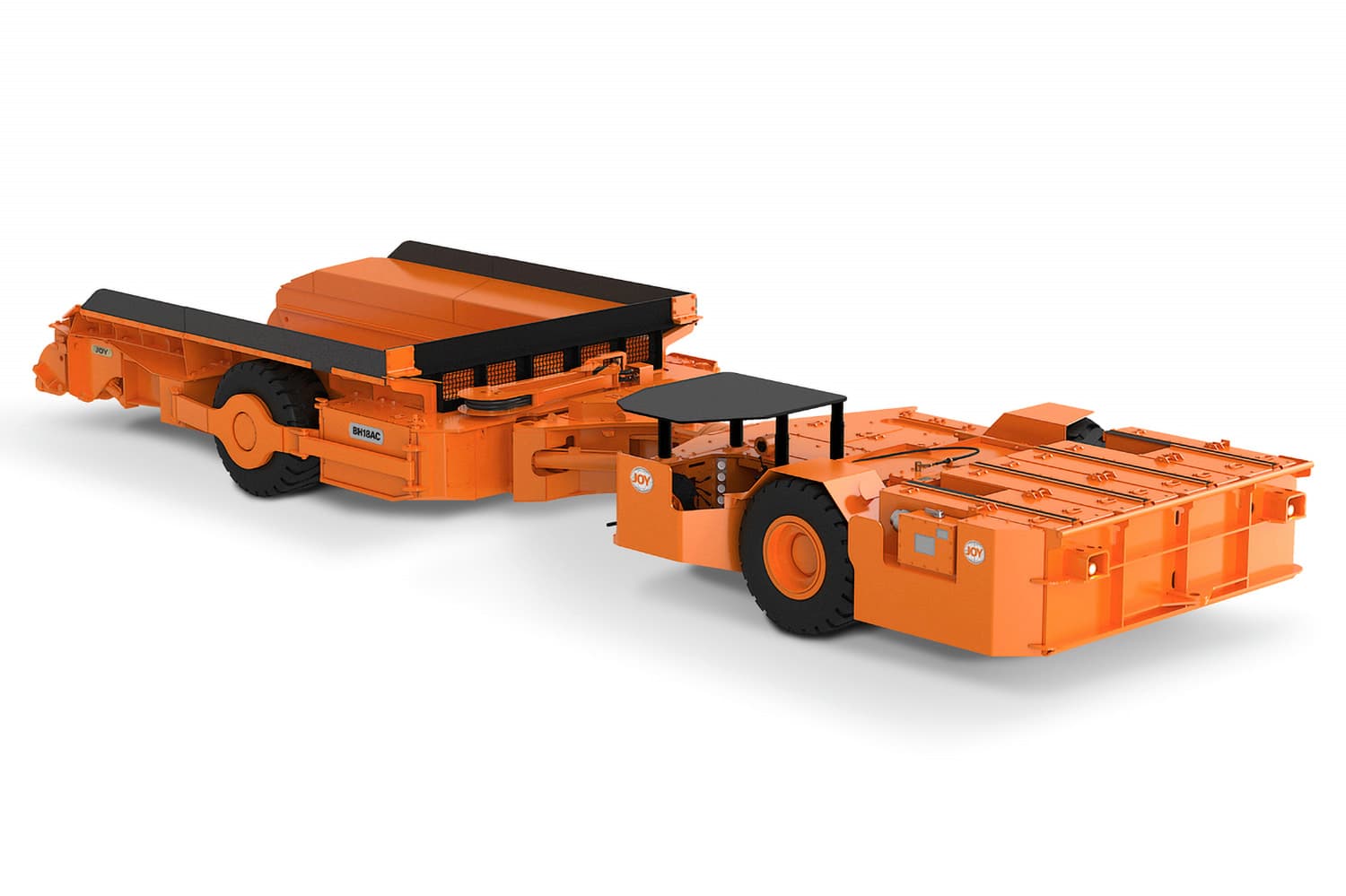

BH18
رقم القطعة: KOMATSU-BH18
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
BH18
المواصفات
| Ground clearance (in) | 9 or 11 |
|---|---|
| Brakes | 4 wheel wet disc |
| Capacity (tonnes) | 16.4 |
| Capacity (tons) | 18 |
| Entry width (cm) | 341 |
| Entry width (ft) | 12 ft. 4 in |
| Rated load capacity (tons) | 18 |
| Rated load capacity (tonnes) | 16.4 |
| Overall length (ft) | 38 ft. 8 1/4 in |
| Overall length (m) | 1 179 |
| Overall width - tractor (ft) | 11 ft. 5 in |
| Overall width - trator (cm) | 325 |
| Ovearll width - trailer (cm) | 341 |
| Overall width - trailer (ft) | 12 ft. 4 in |
| Chassic thickness (cm) | 50.8 |
| Chassic thickness (in) | 24 |
| Tire size (in) | 18L20 - 44 |
| Tire size (cm) | 18L20 - 111.8 |
| Ground clearance (cm) | 22.9 or 27.9 |
| Minimum canopy height (in) | 49.5 |
| Minimum canopy height (cm) | 126 |
| Lay down tailgate | Standard |
| Sideboard height (cm) | 17.5 |
| Sideboard height (in) | 14 |
| Overall height @ top of sideboard (in) | 46.75 |
| Overall height @ top of sideboard (cm) | 86.4 |
| Overall height @ top of battery (in) | 36.5 |
| Overall height @ top of battery (cm) | 92.7 |
| Battery hauler wheel base (m) | 5.79 |
| Battery hauler wheel base (ft) | 19 |
| Optiminum Seam Height of Operation (OAH)(in) | 54 - 78 |
| Optiminum Seam Height of Operation (OAH)(cm) | 137 - 198 |
| Battery hauler inside turning radius (ft) | 9 ft. 9 in |
| Battery hauler inside turning radius (cm) | 298 |
| Outside turning radius (ft) | 23 ft. 6 in |
| Outside turning radius (cm) | 717 |
| Minimum entry turn (cm) | 506 |
| Minimum entry turn (ft) | 16 ft. 7 1/2 |
| Frame articulation | 25 deg - 15 up and 10 down |
| Steering articulation angle | Total 120 deg - 60 L and R |
| Oscillation | 40 deg |
| Ball bearing (in) | 24 |
| Ball bearing (cm) | 61 |
| Tram speed (kph) | 8.0 - 9.7 |
| Tram speed (mph) | 5 - 6 |
| Minimum seam height (m) | 1.45 |
| Minimum seam height (in) | 57 |
| Pump motor - 128 V system (DC)(kW) | 17 |
| Pump motor - 128 V system (DC)(HP) | 22 |
| Pump motor - 240 V system (AC)(HP) | 50 |
| Pump motor - 240 V system (AC)(kW) | 37 |
| Traction motor - 128 V system (DC)(HP) | 41 HP x 2 |
| Traction motor - 128 V system (DC)(kW) | 30 kW x 2 |
| Traction motor - 240 V system (AC)(kW) | 75 kW x 2 |
| Traction motor - 240 V system (AC)(HP) | 101 HP x 2 |
