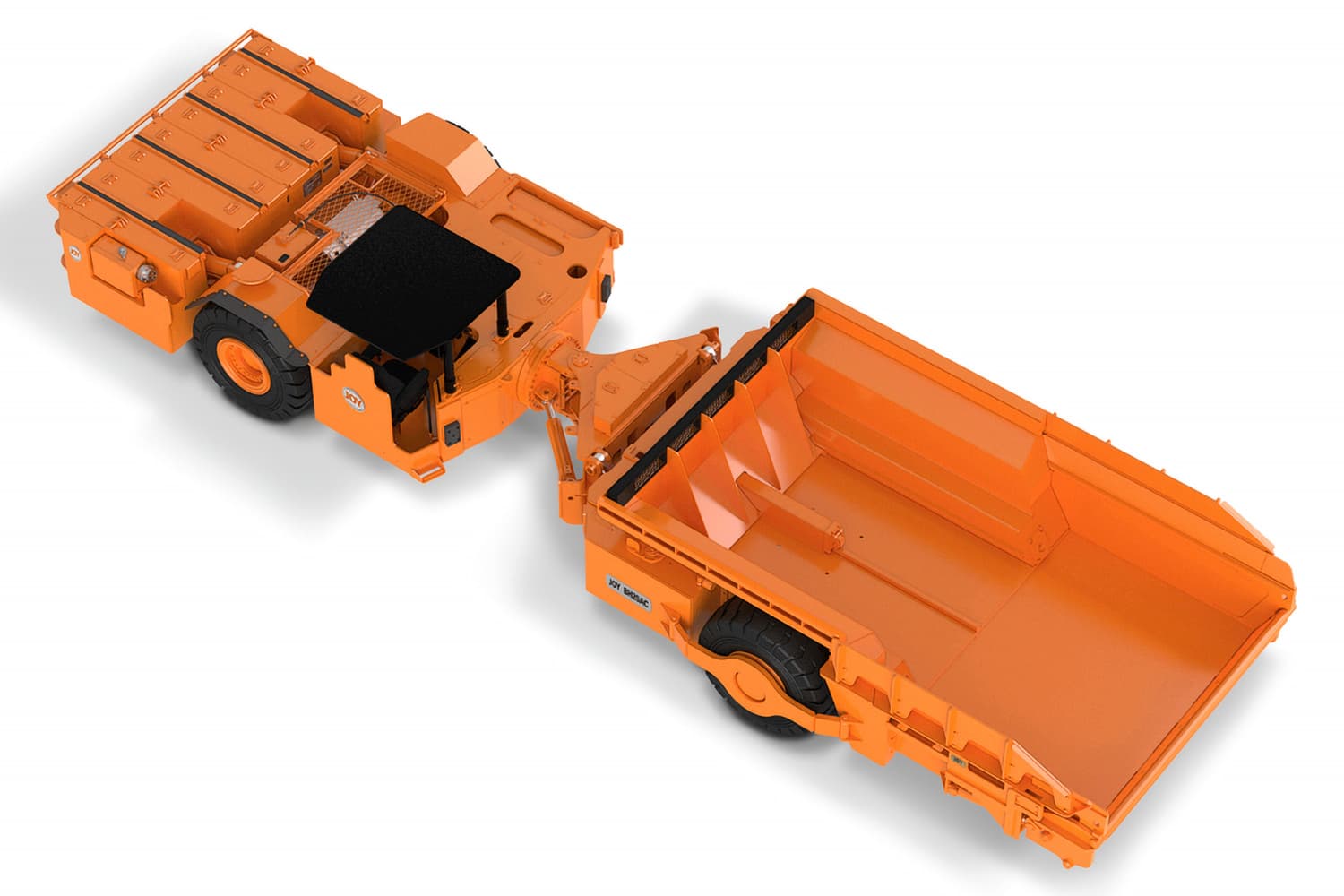

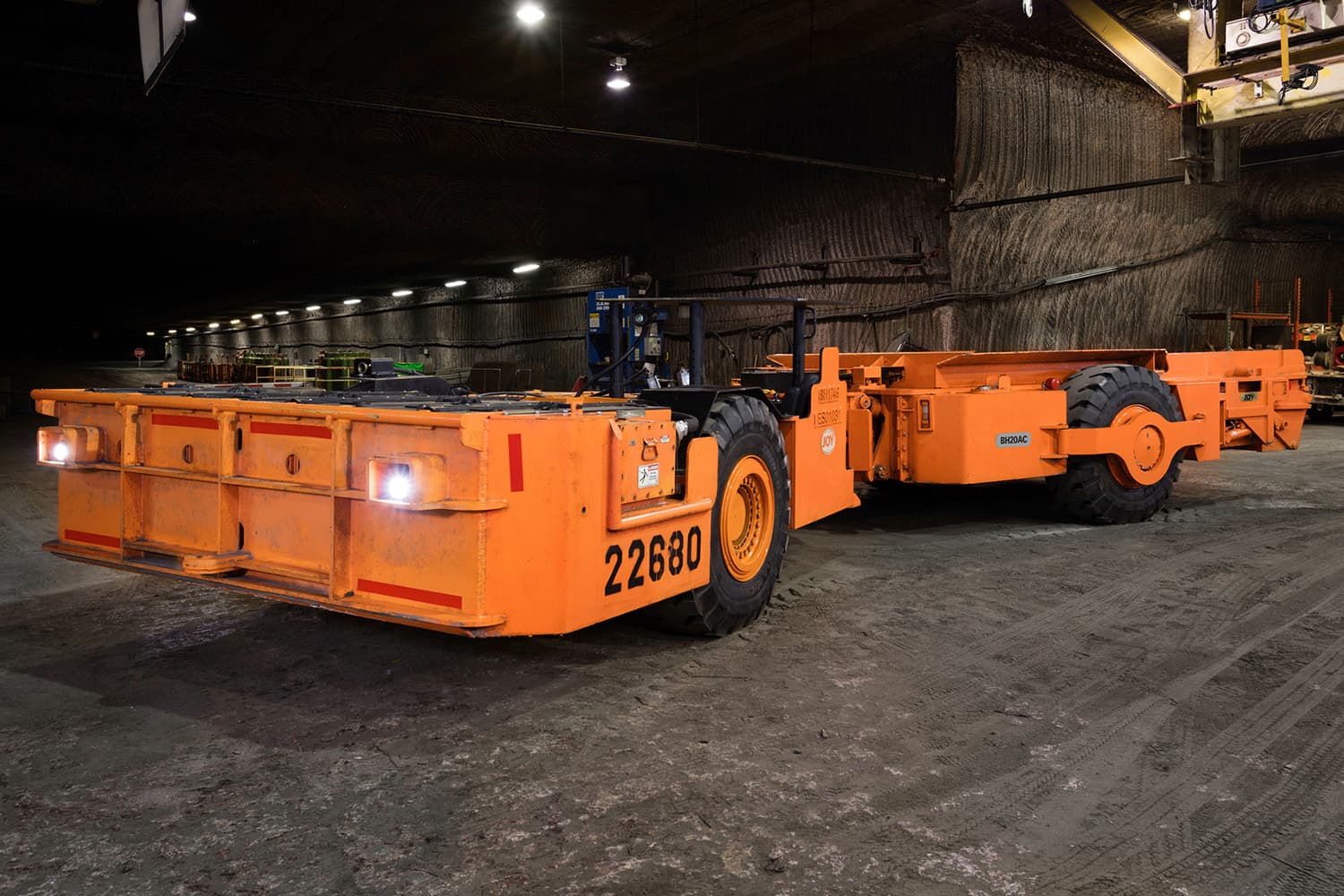

BH20
رقم القطعة: KOMATSU-BH20
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
BH20
المواصفات
| Ground clearance (in) | 11.5 or 17.5 |
|---|---|
| Brakes | 4 wheel wet disc |
| Capacity (tonnes) | 18.2 |
| Capacity (tons) | 20 |
| Entry width (cm) | 362 |
| Entry width (ft) | 11 ft. 10 in |
| Rated load capacity (tons) | 20 |
| Rated load capacity (tonnes) | 18.2 |
| Overall length (ft) | 37 ft. 9 1/4 in |
| Overall length (m) | 1 151 |
| Overall width - tractor (ft) | 11 ft. 2 in |
| Overall width - trator (cm) | 340 |
| Ovearll width - trailer (cm) | 362 |
| Overall width - trailer (ft) | 11 ft. 10 in |
| Chassic thickness (cm) | 71.1 |
| Chassic thickness (in) | 28 |
| Tire size (in) | 50 x 20 x 20 - 50 in, 17.5R25 - 55 in |
| Tire size (cm) | 50 x 20 x 20 - 127 cm,17.5R25 - 140 cm |
| Ground clearance (cm) | 29.2 or 45.5 |
| Minimum canopy height (in) | 65 |
| Minimum canopy height (cm) | 166 |
| Lay down tailgate | Standard |
| Sideboard height (cm) | 30.5 |
| Sideboard height (in) | 12 |
| Overall height @ top of sideboard (in) | 58.25 |
| Overall height @ top of sideboard (cm) | 148 |
| Overall height @ top of battery (in) | 51 |
| Overall height @ top of battery (cm) | 131 |
| Battery hauler wheel base (m) | 5.7 |
| Battery hauler wheel base (ft) | 18 ft. 7 in |
| Optiminum Seam Height of Operation (OAH)(in) | 72 and up |
| Optiminum Seam Height of Operation (OAH)(cm) | 183 and up |
| Battery hauler inside turning radius (ft) | 11 ft. 6 in |
| Battery hauler inside turning radius (cm) | 351 |
| Outside turning radius (ft) | 25 ft. 2 1/2 in |
| Outside turning radius (cm) | 768 |
| Minimum entry turn (cm) | 488 |
| Minimum entry turn (ft) | 16 ft. |
| Frame articulation | 25 deg - 15 up and 10 down |
| Steering articulation angle | Total 110 deg - 55 L and R |
| Oscillation | 40 deg |
| Ball bearing (in) | 28 |
| Ball bearing (cm) | 71 |
| Tram speed (kph) | 8.0 - 9.7 |
| Tram speed (mph) | 5 - 6 |
| Minimum seam height (m) | 1.8 |
| Minimum seam height (in) | 72 |
| Pump motor - 128 V system (DC)(kW) | 17 |
| Pump motor - 128 V system (DC)(HP) | 22 |
| Pump motor - 240 V system (AC)(HP) | 50 |
| Pump motor - 240 V system (AC)(kW) | 37 |
| Traction motor - 128 V system (DC)(HP) | 40 HP x 2 |
| Traction motor - 128 V system (DC)(kW) | 30 kW x 2 |
| Traction motor - 240 V system (AC)(kW) | 75 kW x 2 |
| Traction motor - 240 V system (AC)(HP) | 100 HP x 2 |
