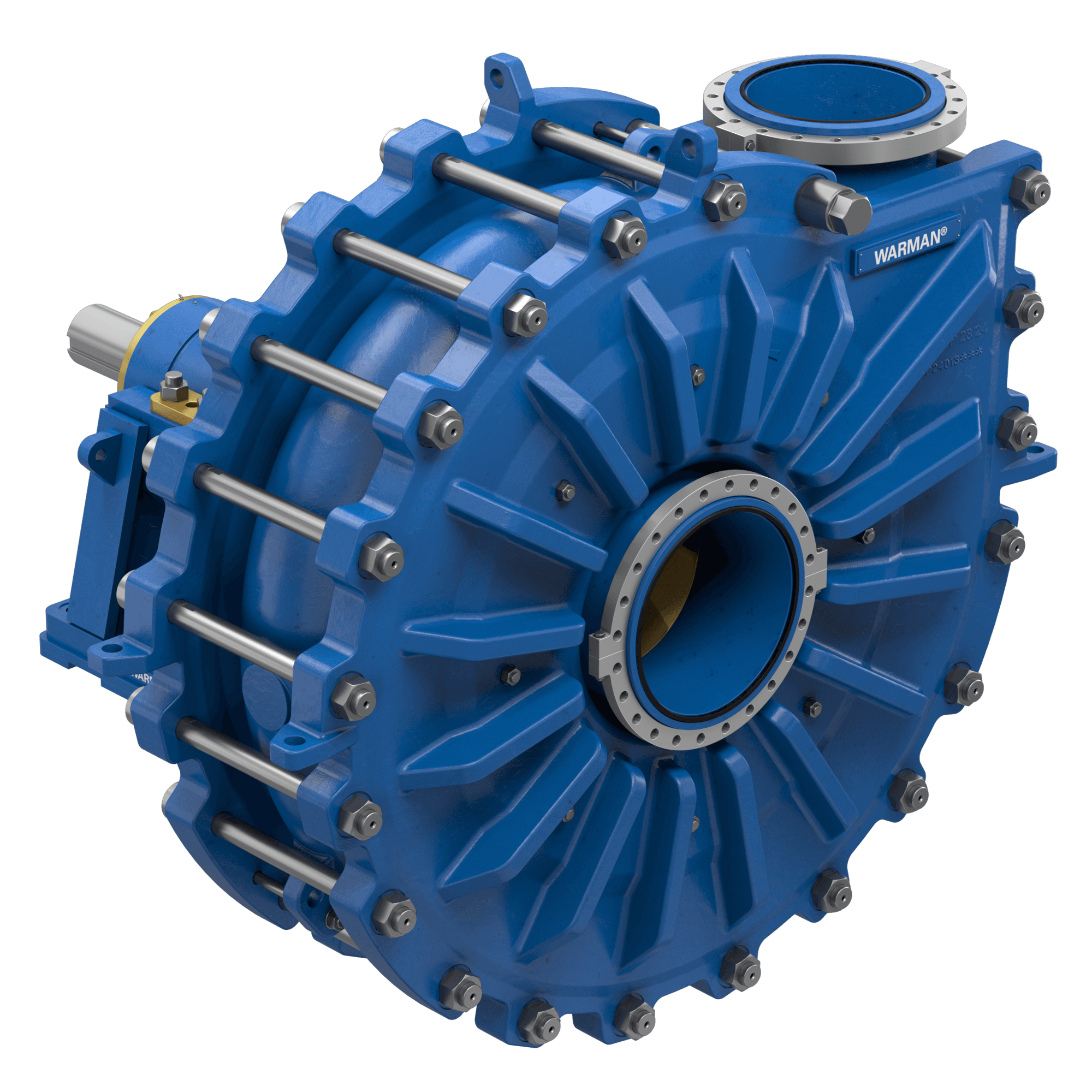

Warman® Heavy-duty Gravel and Dredge Pumps

Weir

Warman® Heavy-duty Gravel and Dredge Pumps

Name: Warman® Heavy-duty Gravel and Dredge Pumps
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Our Warman® range of coarse-particle pumps is specifically designed to provide continuous pumping of highly abrasive slurries containing large particles at high efficiencies with low maintenance and ownership costs. Containing a variety of our proprietary advanced metals, including Hyperchrome® A61 alloy, these pumps provide enhanced abrasion resistance for the most arduous applications, especially dredge and gravel. Our gravel and dredge pump series ranges from the latest, third-generation Warman® SHG™ super-heavy-duty gravel pump to the original Warman® G gravel pump designed in 1960s. The second-generation Warman® GH heavy-duty gravel pump is also available in high-pressure versions, GHP and GHPP. The heavy-duty nature of our Warman® D dredge pump has been proven in dredging and general industry applications over the last 60 years. Compared to other dredge and gravel pumps, these pumps offer the following benefits: Low total cost of ownership given no oil recirculation pump is required Ease of maintenance and minimal downtime with an easily removable shaft sleeve, split release collar, and robust one-piece casting that cradles the bearing cartridge assembly with a conveniently located adjustment facility Longer service life with reduced internal velocities, recirculation, gland pressure and intrusion of solids These pumps are unlined in order to handle severe large-particle slurries In dredging operations, we recommend installing Accumin® automatic lubricating systems on deck-mounted pumps to deliver a uniform, measured dose of lubricant to the vital points of your Warman® pump. For more information about our range of Warman® dredge and gravel pumps, please get in touch with our team.

المواصفات

CAPACITY	Capacities up to 63,400 gpm (14,400 m3/hr)
Brand line	Warman®
Product type	Gravel and Dredge Pumps, Horizontal Slurry Pumps, Pumps
Catalogue category	Gravel and Dredge Pumps, Horizontal Centrifugal Slurry Pumps, Pumps
MATERIALS	Warman® G, D and SHG pumps are made with proprietary alloys including Hyperchrome® A05, A61 and Ultrachrome® A14 - a tougher version of the white iron.
SIZE RANGE	Discharge diameter sizes from 150mm to 900mm (6" to 36")
PRESSURE CLASS	Heads to 344ft (105m) \| Pressures to 363psi (6,900kPa)
DESIGN STANDARDS	Hydraulic Institute 9.6.2, ISO 9001, OHSAS 18001
