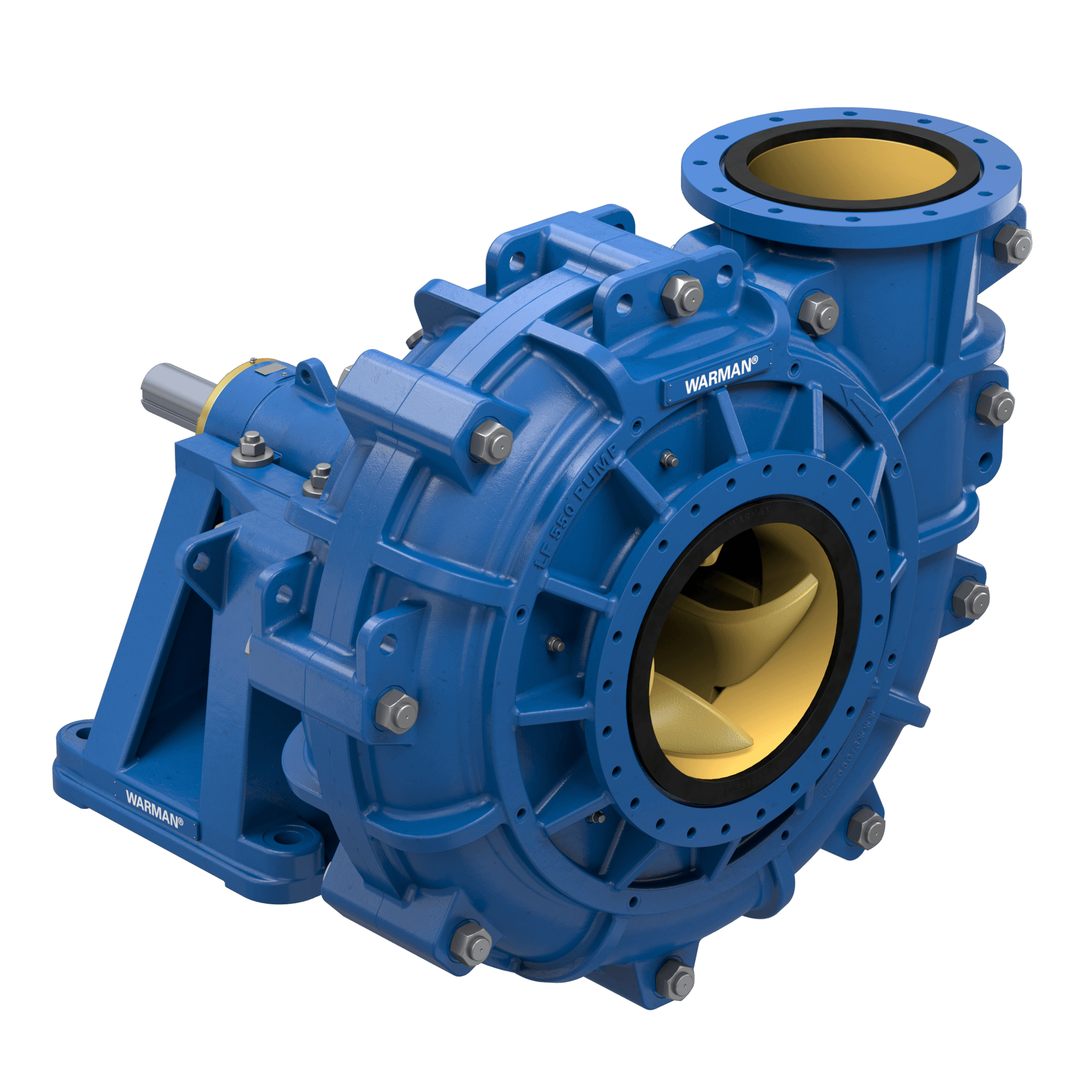

Warman® Horizontal Froth Pumps (AHF, LF and MF)

Weir

Warman® Horizontal Froth Pumps (AHF, LF and MF)

Name: Warman® Horizontal Froth Pumps (AHF, LF and MF)
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Based on the Warman® AH® series of heavy-duty slurry pumps, the Warman® AHF range of horizontal centrifugal slurry pumps is specifically designed for pumping froth with fine particles. These pumps are able to handle heavy froth and viscous concentrated non-Newtonian slurries with ease. They have a unique impeller with oversized inducer blades on each vane and a large eye, making the entrained air bubbles dissipate or reduce in size so that they do not inhibit the flow of the slurry. Compared to other pumps used in similar applications, the Warman® AHF, LF and MF froth pumps offer the following benefits: Less likely to experience bearing and shaft failures Can be easily upgraded with patented Continuous Air Removal System (CARS) , for mineral froths with a high froth volume factor A cartridge-style bearing assembly that results in more reliable operation, prolonged bearing life and safer maintenance. Greater efficiency, reliability and performance during the wear cycle Longer service life resulting in reduced downtime and total ownership costs Available in a variety of sizes and with different lining options to suit specific applications These horizontal centrifugal slurry pumps are available in a range of discharge sizes (from 50 to 550mm) to provide the perfect fit for a wide range of applications. Larger models can support flow rates up to 8,000m3/h and design heads normally associated with typical froth and paste installations. For mineral froths with high froth volume factor, we offer a patented Continuous Air Removal System (CARS) technology upgrade, which has repeatedly demonstrated success in improving froth pumping performance stability in many installations around the world. For more information about our range of horizontal froth pumps, please get in touch with our team today.

المواصفات

TEMPERATURE RANGE	From 1 to 90°C
CAPACITY	Up to 35,000 USgpm (8,000m3/h)
Brand line	Warman®
Product type	Horizontal Slurry Pumps, Pumps
Catalogue category	Horizontal Centrifugal Slurry Pumps, Pumps
SIZE RANGE	Discharge sizes - 50mm to 550mm (2” to 26”)
PRESSURE CLASS	Pressure up to 305psi (2,100kPa)
MATERIAL	Warman® AHF, MF and LF pumps feature ductile iron outer casing, liners made from R55® natural rubber, synthetic rubber, or Ultrachrome® alloy and an Ultrachrome® A05 alloy impeller.
DESIGN STANDARDS	Hydraulic Institute Standard ANSI/HI 12.1-12.6, ISO 9001, ISO 9906, ISO 14001, OHSAS 18001 and CE certified
