Weir

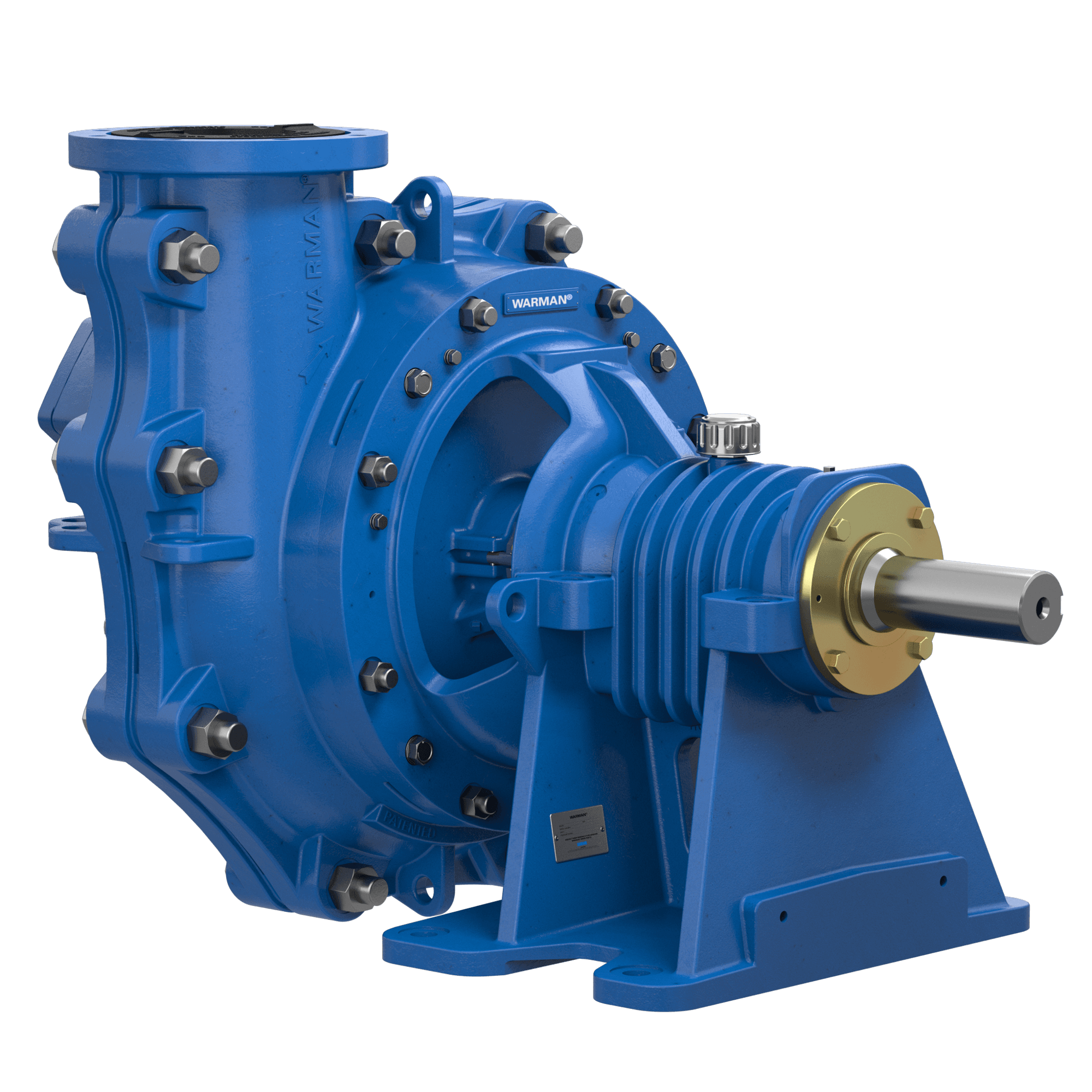

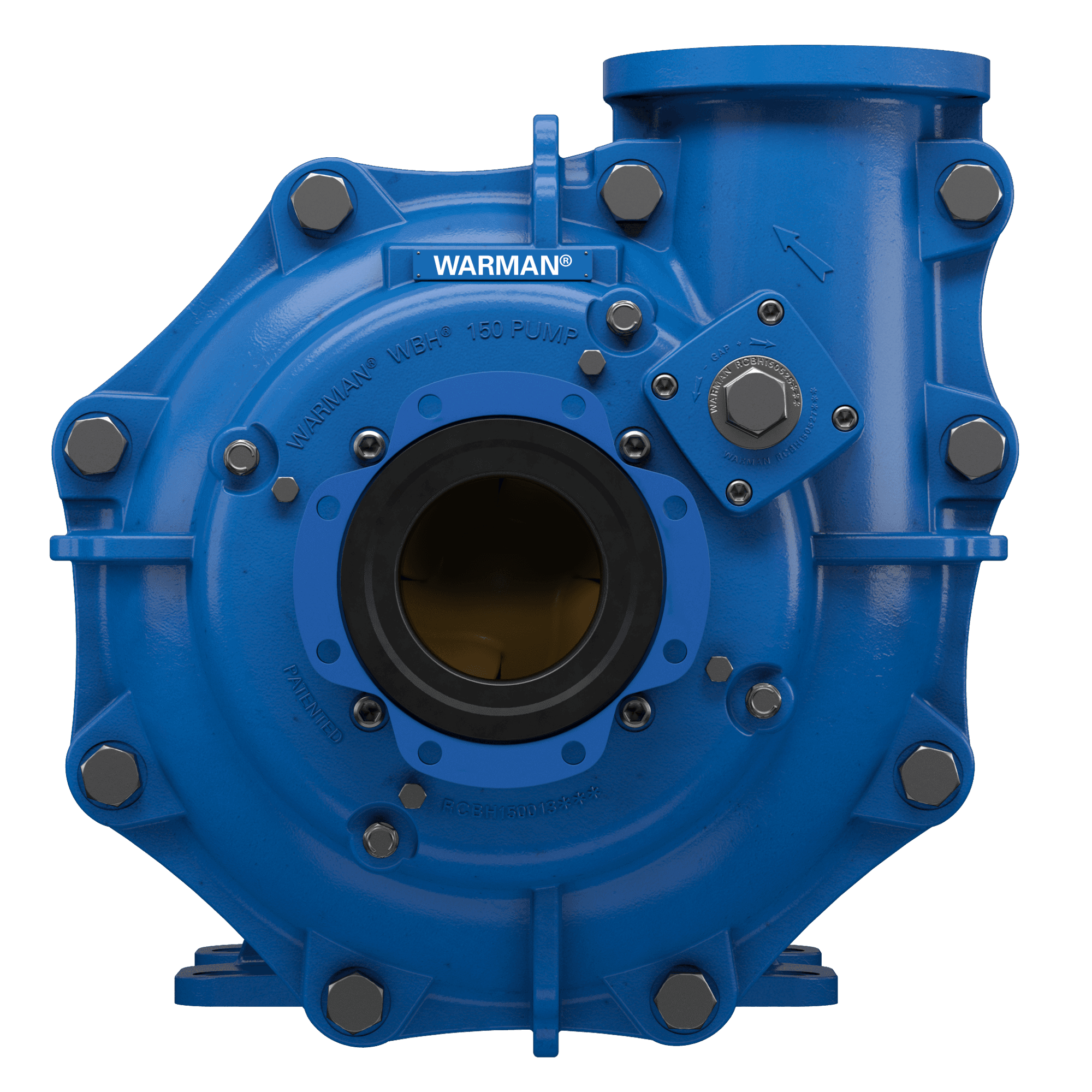

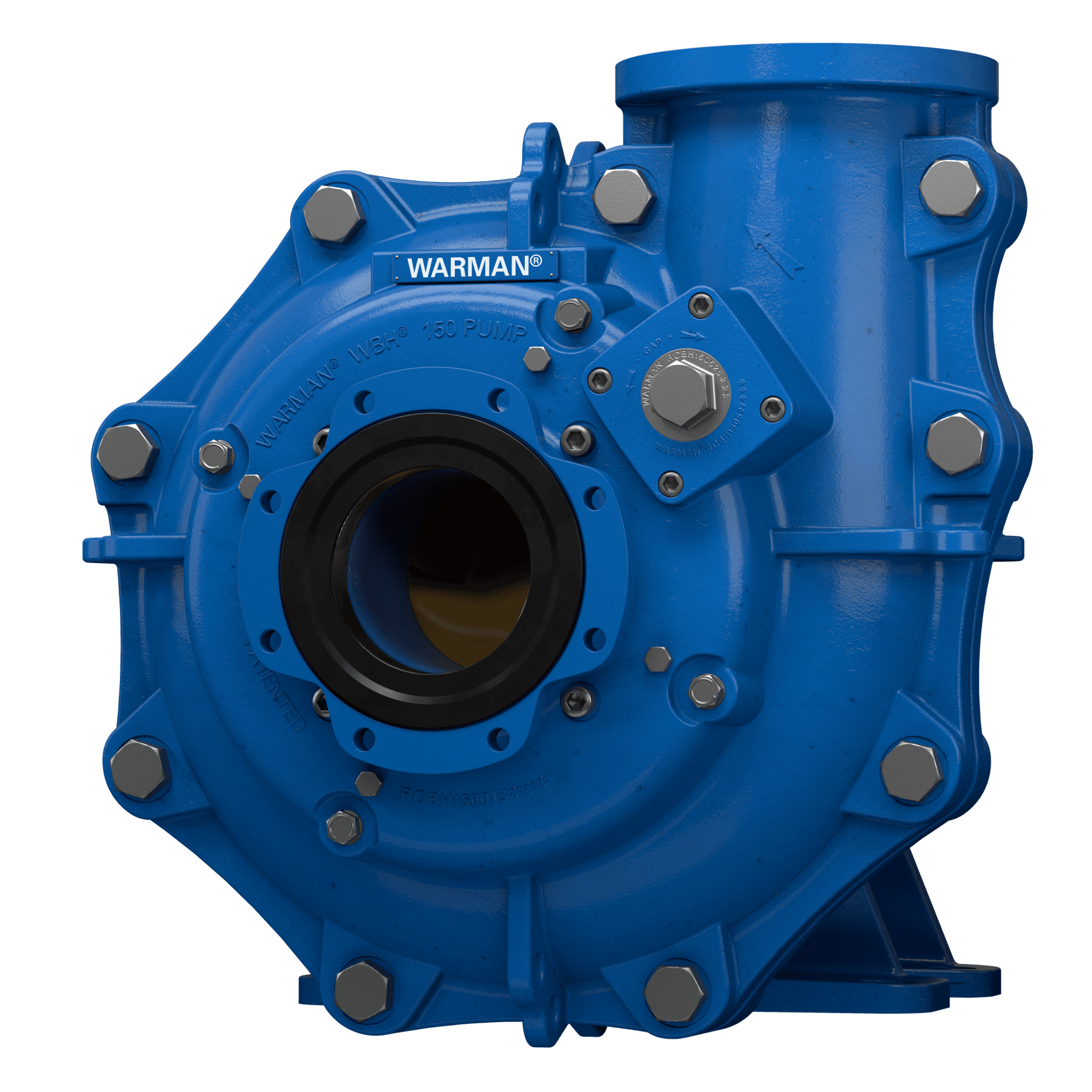

Warman® WBH® Heavy-duty Process Pumps

Name: Warman® WBH® Heavy-duty Process Pumps
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

The next generation of our Warman® AH® heavy-duty slurry pumps, Warman® WBH® heavy-duty slurry pumps optimise all aspects of wear and performance while delivering a lower total cost of ownership (TCO). These horizontal centrifugal process pumps are typically used in heavy-duty applications such as mill discharge, slurry transfer and process pumping and are suitable for both greenfield and brownfield installations (Service Class 1-4). With your general slurry process pumping requirements front of mind, the Warman® WBH® slurry pump range offers numerous design enhancements based on the latest slurry pumping technology to help ensure productivity demands are met. Warman® WBH® slurry pumps are available with optional pressure relief and thermal cut-out features and an optional ‘single-point adjustment’ device to rotate and axially adjust the throatbush. The fully adjustable throatbush moves axially, as well as rotates (with single-point adjustment option), to distribute the wear evenly and extend the impeller and throatbush life. The standard Warman® WBH® arrangement allows axial adjustment of the throatbush. This adjustment can be made while the pump is running, eliminating the need to stop production resulting in cost savings for the plant.

المواصفات

TEMPERATURE RANGE	From 1 to 90°C
CAPACITY	Capacities up to 13,200 gpm (3,000 m3/hr)
Brand line	Warman®
Product type	Horizontal Slurry Pumps, Pumps
Catalogue category	Horizontal Centrifugal Slurry Pumps, Pumps
SIZE RANGE	Discharge sizes: From 25-300mm (1-12")
PRESSURE CLASS	Heads to 240ft (73m) \| Pressures to 300 psi (2,100 kPa)
MATERIAL	Warman® WBH® heavy-duty abrasive slurry pumps contain a ductile-iron outer casing with interchangeable elastomer or white-iron liners and impeller.
DESIGN STANDARDS	Hydraulic Institute 6, ISO 9001, ISO 14001, OHSAS 18001 & CE certified
