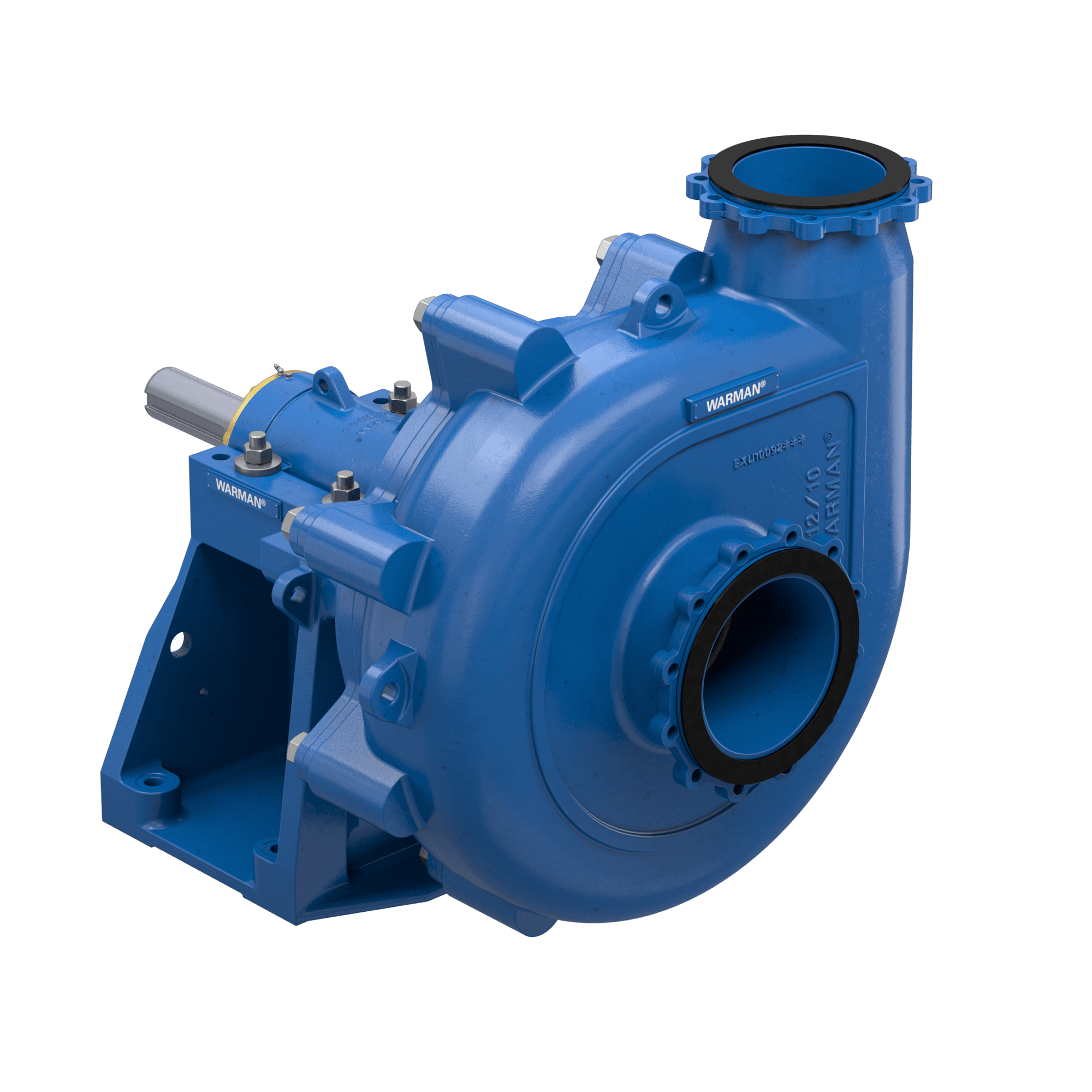

Warman® XU Medium-duty Unlined Pumps

Name: Warman® XU Medium-duty Unlined Pumps
Brand: Weir

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Engineered to deliver the lowest possible wear rates in gravel, coal and many other medium to coarse slurry applications, Warman® XU pumps feature unique patented casing and impeller designs, and a unique sealing design. Warman® XU pumps (Service Class 1-3) have been optimised with the latest fluid dynamics techniques, advanced computer wear modelling, years of field and lab testing and decades of design experience. T hese pumps are an all-metal unlined pump that integrates new wet-end wear components with the long-proven Warman® mechanical end. They are also dimensionally interchangeable with the Warman® AH® and AHP pumps, fitting directly onto our solid and reliable Warman® bearing assembly and base. Designed with a single casing, integral suction side liner, and a minimum number of fasteners, Warman® XU pumps require minimal special tools and lifting devices making them simple and easy to maintain. Compared to other horizontal pumps, Warman® XU pumps offer the following benefits: Deliver strong wear performance in addition to outstanding efficiency Offer a large particle passing size Require minimal tools and lifting devices for maintenance Operates across a wide range of slurry flows Has a large-diameter expeller which results in better sealing capability over a wider range of suction conditions For more information about our range of Warman® horizontal pumps, please get in touch with our team.

المواصفات

TEMPERATURE RANGE	From 1 to 90°C
CAPACITY	Capacities up to 10,000 gpm (2,271 m3/hr)
Brand line	Warman®
Product type	Horizontal Process Pumps, Horizontal Slurry Pumps, Pumps
Catalogue category	Horizontal Process Pumps, Horizontal Centrifugal Slurry Pumps, Pumps
SIZE RANGE	Discharge sizes: From 80mm to 300mm (3" to 12")
PRESSURE CLASS	Heads to 285ft (87m) \| Pressures to 145 psi (1,000 kPa)
MATERIAL	The Warman® XU pump is supplied in our Ultrachrome® A05 alloy.
DESIGN STANDARDS	Hydraulic Institute 9.6.2, ISO 9001, OHSAS 18001
